Why M16 Connectors Are Essential for Reliable Laser Profile Sensors in Industrial Environments

Laser profile sensors, used extensively in automated production lines, 3C inspection, and automotive manufacturing, rely on stable connectivity to provide high-speed, high-accuracy measurements. However, these sensors often operate in harsh conditions, including vibration, dust, humidity, and electromagnetic interference. To ensure that these sensors function properly, reliable connectors are essential. This is where the M16 connector, with its robust features, comes into play.

I. Industrial Environment Challenges and Connectivity Requirements

Industrial environments are filled with challenges that can disrupt the performance of electronic equipment. These challenges include mechanical stress, exposure to environmental factors, and the need for precise signal transmission. Let’s break these down further and understand how the M16 connector is engineered to overcome these obstacles.

1. Mechanical Stress and Vibration

In industrial settings, machinery is constantly in motion, and vibrations are an unavoidable byproduct of the operation. Laser profile sensors are often attached to moving parts, meaning that the connectors must endure vibrations without loosening or degrading. Even minor disruptions in the connection can lead to signal loss, measurement errors, or complete system failure.
The M16 connector ’s screw-locking mechanism ensures a secure connection that resists mechanical stress and vibration. The connector’s design minimizes the risk of loosening, which is a common issue with other types of connectors. With the M16 connector, users can be confident that the signal integrity will remain intact even in the most demanding industrial conditions.

2. Dust, Moisture, and Harsh Conditions

Another major challenge in industrial environments is exposure to dust, moisture, and other harsh conditions. These elements can compromise the performance of connectors by causing short circuits, corrosion, or interference. For example, in manufacturing or automotive production, coolant, lubricants, and debris are prevalent, making it essential to have connectors that can resist such contaminants.
M16 connectors are IP67 rated, which means they are fully protected against dust and can withstand immersion in water up to a certain depth. This rating ensures that the M16 connector will perform reliably even in wet, dusty, or dirty environments. Its sealing technology is designed to prevent moisture and dust from entering the connector, safeguarding the electrical contacts inside.

3. High-Speed and High-Precision Signal Transmission

Laser profile sensors are known for their high-speed, high-accuracy measurements. These sensors must transmit large volumes of data quickly and with minimal signal degradation. If the signal transmission is unstable, it can lead to inaccurate measurements, which could affect the entire production line.
M16 connectors are designed with advanced features to facilitate high-speed data transmission. They incorporate multiple shielding layers that reduce electromagnetic interference (EMI), ensuring that the data sent between sensors and control systems remains accurate and reliable. With M16 connectors, the sensors can transmit large amounts of data without compromising the signal quality.

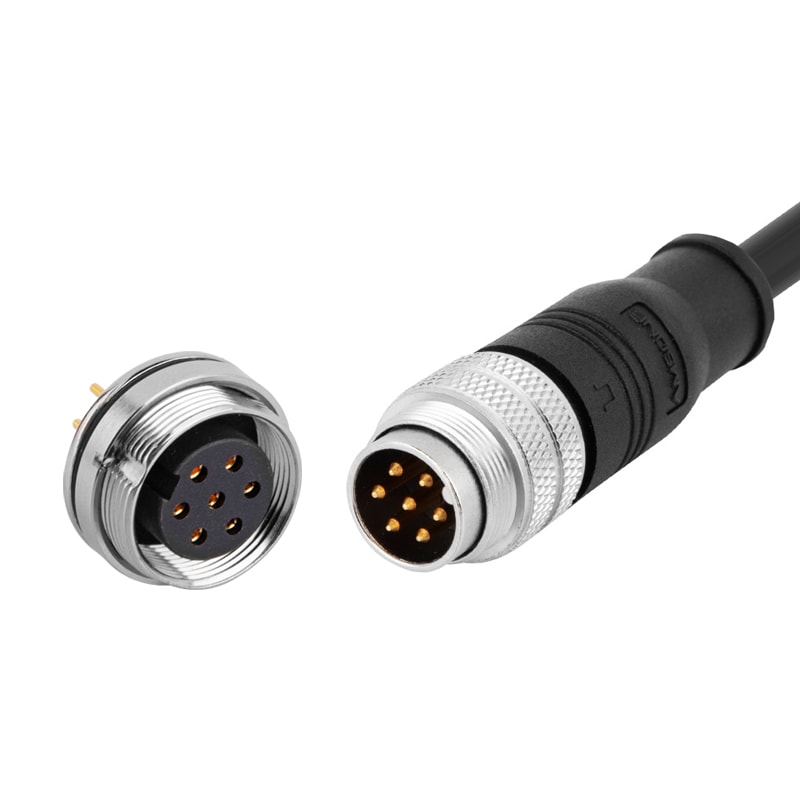

II. Overview of M16 Circular Connectors

The M16 connector is widely used across various industrial applications, including laser profile sensors. Its robust design and reliable performance make it an ideal choice for industrial environments where stability and precision are paramount.
The M16 connector features a screw-locking mechanism according to DIN EN IEC 61076-2-106. This ensures a secure and stable connection, which is crucial for sensors that require continuous power supply and data transmission. The connector is available in various pin configurations, including 3–8 pins, as well as 12, 14, 16, 19, and 24 high-density pins. This versatility makes the M16 connector adaptable to a wide range of industrial applications.
Additionally, the M16 connector provides excellent EMC shielding, which is essential for reducing the impact of electromagnetic interference. This feature is particularly important in environments where multiple machines and devices are operating simultaneously, as it prevents signal degradation due to external interference.

III. Standardized Selection Solutions for Laser Profile Sensors

Laser profile sensors require specific connectivity solutions to operate efficiently. The M16 connector is available in several configurations that cater to different sensor needs. These connectors are designed to provide both power and signal transmission, ensuring that the sensor can perform its functions accurately.

1. M16 14-Pin Connector – Full-Function Integrated Version

The M16 14-pin connector is the ideal choice for full-function integration. This connector is designed to support power supply, multiple trigger signals, Ethernet communication, temperature monitoring, and auxiliary control functions. It is perfect for laser profile sensors that require multi-dimensional control and status monitoring.
The integration of multiple functions into a single connector reduces the complexity of wiring and the number of connectors needed for the system. This not only simplifies installation but also reduces the risk of connection errors. The 14-pin version of the M16 connector is an all-in-one solution that can handle the demands of modern laser profile sensors.

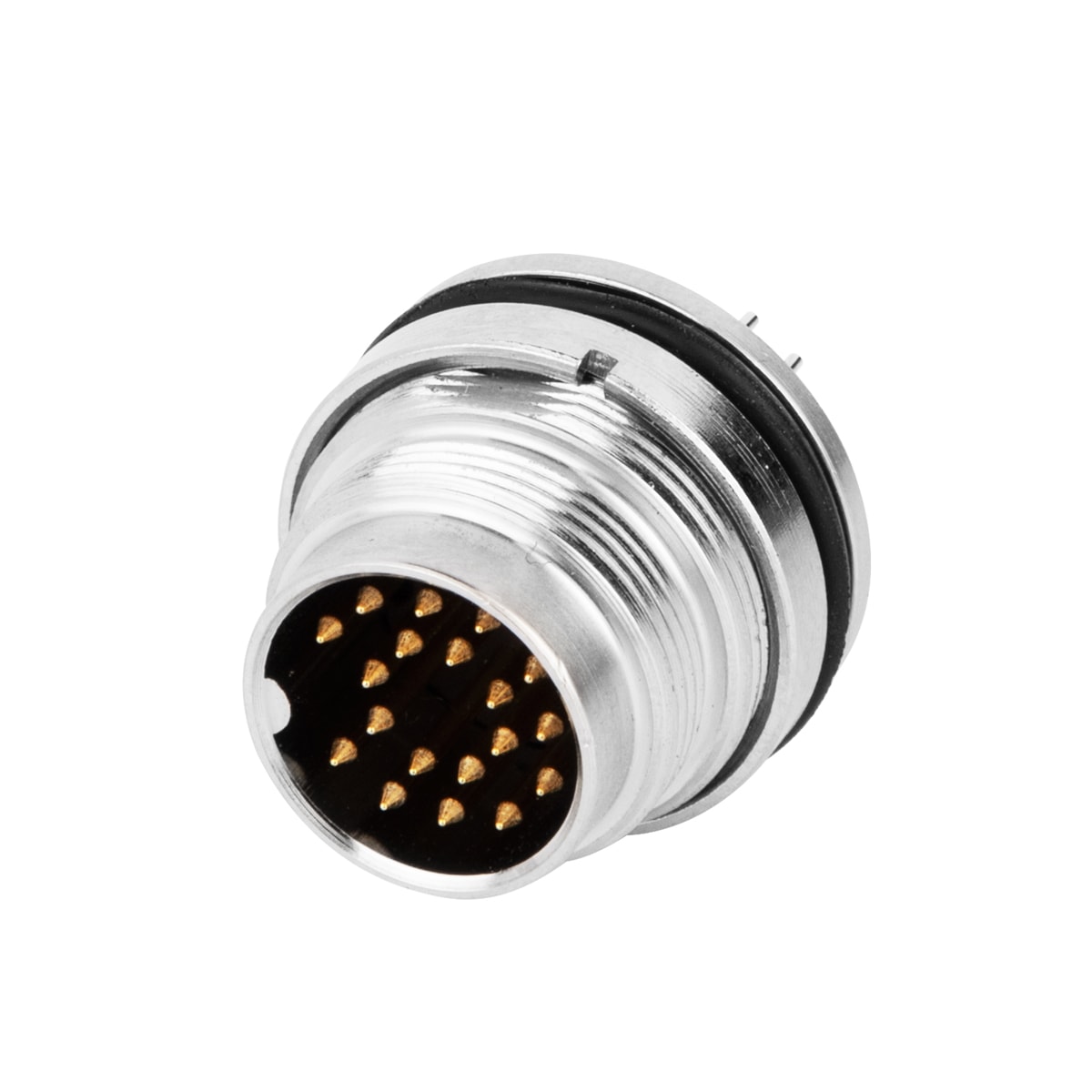

2. M16 19-Pin Connector – Advanced Expansion Version

For more complex applications that require additional functionality, the M16 19-pin connector offers an advanced solution. This version builds on the 14-pin configuration by adding reserved I/O pins, an encoder Z-phase support, and internal module power supply capabilities.
The 19-pin connector is ideal for customized laser profile sensors that may need future upgrades. It offers scalability, allowing users to add more functions to their sensors without replacing the entire connector system. This flexibility helps reduce costs over time by minimizing the need for redesigns and system overhauls.

IV. Installation and Assembly Options

M16 connectors are designed for ease of use in industrial environments. These connectors offer several installation options, making them highly versatile for various setups. Let’s explore the installation and assembly options available with M16 connectors.

1. Pre-Molded with Cables for Immediate Use

One of the most convenient features of M16 connectors is that they come pre-molded with cables. This ready-to-use configuration allows for quick installation, saving valuable time during setup. Users can simply plug the connector into place, eliminating the need for additional wiring and soldering.

2. Soldered Single-Wire Versions

For applications that require a custom configuration, M16 connectors are also available in soldered single-wire versions. This option allows users to customize the wiring to their specific needs, making it ideal for more complex systems.

3. Panel Mount Receptacles

M16 connectors are available with panel mount receptacles, which can be mounted on the front or rear of a panel. This flexibility makes the M16 connector suitable for a wide range of industrial applications, where the connector needs to be mounted on different surfaces.

4. Field Assembly Cable Types

For users who prefer to assemble the connector on-site, the M16 connector also comes with easy field assembly cable types. This allows for quick and easy customization of cable lengths, making it a practical choice for systems that require flexibility.

V. Key Technical Advantages of M16 Connectors

M16 connectors offer several technical advantages that make them the preferred choice for laser profile sensors in industrial environments. Let’s explore some of the key features that set M16 connectors apart.

1. Secure Screw Locking for Vibration Resistance

The screw-locking mechanism ensures that the M16 connector stays securely in place, even in the presence of vibration. This is essential for sensors that are mounted on moving parts or in environments where machinery operates continuously.

2. High-Density Pin Design for Multifunction Integration

The high-density pin design of the M16 connector allows it to integrate multiple functions into a single connector. This reduces the need for multiple connectors and simplifies the wiring process, saving time and effort during installation.

3. Excellent EMC Shielding

M16 connectors are designed with multiple layers of shielding to prevent electromagnetic interference. This ensures that the sensor’s data transmission remains stable and accurate, even in environments with high levels of electrical noise.

4. IP67 Protection for Dust and Moisture Resistance

With an IP67 rating, the M16 connector is fully protected against dust and can withstand immersion in water. This makes it ideal for use in harsh industrial environments where moisture and dust are prevalent.
VI. Application Scenarios in Laser Profile Measurement Systems

• M16 connectors are used in a variety of industrial applications that require high-precision data transmission. Some common application scenarios for laser profile sensors include:    Automated Production Lines     : Laser profile sensors are used to measure the dimensions of parts as they move along production lines.
• 3C Electronics Inspection: Laser profile sensors are used to inspect the quality and dimensions of electronic components.
• Automotive Body Measurement: These sensors are used in the automotive industry to measure body parts for precision fitting.
• Robot-Guided Positioning Systems: Laser profile sensors provide real-time data to guide robots in precise movements.
• Inline Contour Detection: Laser profile sensors are used to detect any deformation or irregularities in parts during the production process.

VII. Conclusion: Why M16 Connectors Are a Reliable Choice for Laser Profile Sensors

The M16 connector is an essential component in ensuring the reliable operation of laser profile sensors in industrial environments. Its robust design, secure connections, and advanced features make it the ideal choice for systems that require high-speed, high-precision data transmission. With its ability to resist vibration, dust, moisture, and electromagnetic interference, the M16 connector ensures that laser profile sensors can perform their tasks accurately and reliably.
Amissiontech offers high-quality M16 connectors tailored to your industrial needs. Our connectors are designed to provide long-term stability, flexibility, and performance, ensuring your systems operate at their best. Contact Amissiontech, your trusted industrial connector supplier , to learn more about our products and solutions today.
