M9 pre-molded cable connector, female, contacts:4, solder connection, straight, IP67
P/N: AM09F0411A001

M9 pre-molded cable connector, female, contacts:4, solder connection, straight, IP67

  • Description
  • Technical Data

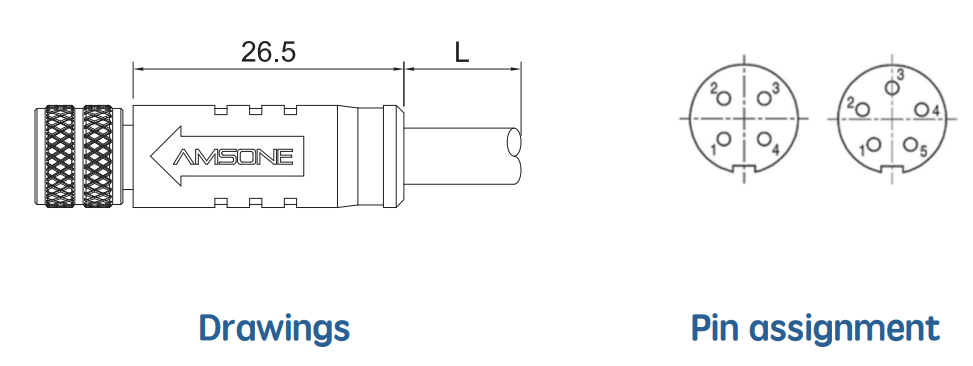

  • Dimension

Your Benefits
-Easy PCB assembly for wave soldering
-Standard pin assignments and codings for signal transmission with a uniform design-in design
-For high transmission reliability: optional shield connection to the housing and latching on the PCB

Standard/
Locking system
Fix screw locking
GenderFemale
SeriesAM09
Ordering P/NAM09F0411A001
CodingA
Torque0.3N.M
CatagoryPre-molded cable
Connection typeSolder connection
Cable outletVariable
Custom tariff number85444290
Country of originChina

Electrical

Rated current3A
Rated voltage125V
Rated Impulse voltage1500V
Insulation resistance≥ 100 MΩ
EMC complianceOptional
Degree of protectionIP67
Mechanical operation> 100  mating cycles
Operation temperature-25 °C ~ 85 °C

Cable

Cable typeUL Style
Conductor cross section0.23mm²
Gauge (AWG)24AWG
Jacket

PCV/TPU

Temperature-25 °C ~ 85 °C
Other resistanceUV resistant (720 h) UL 2556

Premium oil resistance (jacket)
Wire colourvariable
Lengthvariable

Material

Flammability ratingAcc. to UL 94 V0
Contact material
Brass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Shell materialPCV/TPU
