M12 X Code Male ProfiNET/EtherNET Cable M12 Connector X Coded
P/N: AM12M0814X221-010

M12 X Code Male ProfiNET/EtherNET Cable M12 Connector X Coded

M12 X Code Connector AMSONE, Profinet/Ethernet Cable

  • Description
  • Technical Data

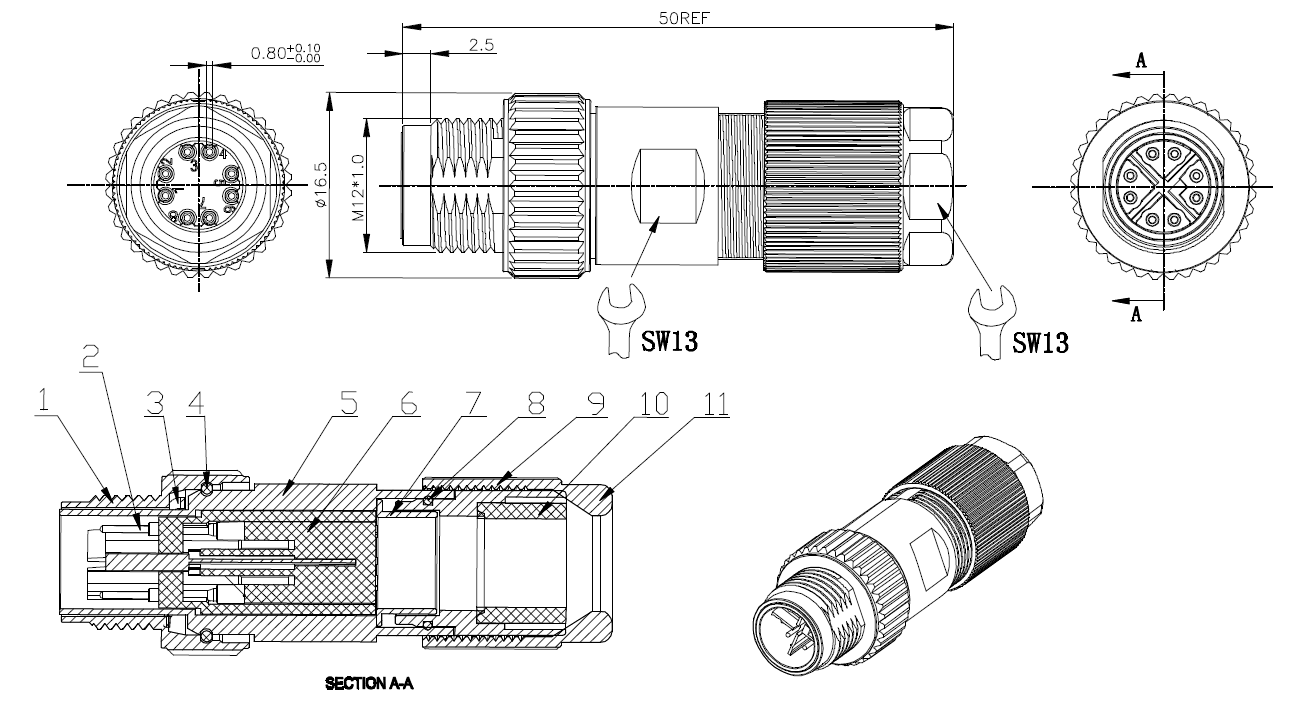

  • Dimension

Your Benefits

1、Industry ethernet signal transmission.
2、Pre-molded with cables or soldered with single wires for immediate use.
3、Sealed on the single wire side for optimum leak-tightness.
4、Panel mount receptacles: rear/front mount.
5、Contacts: 8 pins.
6、Up to 10Gbps transmission speed.
7、Currents up to 0.5 A.
8、Solder/ dip-solder PCB connection.
9、Excellent EMC shielding.
10、Degree of protection IP67.
11、Customer specific assemblies and single wire lengths available.


StandardIEC 61076-2-109
Locking systemFix screw locking
SeriesAM12
Ordering P/N:AM12M0814X221-010
GenderMale
No. of Contacts8
CategoryField Assembly
Connection typeCrimp
CodingX
Locking nutM12*1
Torque0.4~1.3Nm(mount torque)
Custom tariff number85444290
Country of originChina


Electrical

Rated current0.5A
Rated voltage60V
Rated Impulse voltage500V
Insulation resistance≥ 100 MΩ
EMC complianceShielded
Degree of protectionIP67
Mechanical operation> 100  mating cycles
Operation temperature-40°C~85°C

Cable

Cable typeUL Style
Conductor cross section0.14~0.34mm²
Gauge (AWG)26~22AWG
Jacket

PVC/TPU

Temperature-40°C~85°C
Other resistanceUV resistant (720 h) UL 2556

Premium oil resistance
Wire colourvariable
Lengthvariable

Material

Flammability ratingAcc. to UL94V-0
Contact material
Brass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Molding materialPVC/TPU
