M12 panel receptacle, rear mount, male, contacts:4,PCB dip-solder connection, L code, straight, IP67
P/N: AM12M0422L001

M12 panel receptacle, rear mount, male, contacts:4,PCB dip-solder connection, L code, straight, IP67

  • Description
  • Technical Data

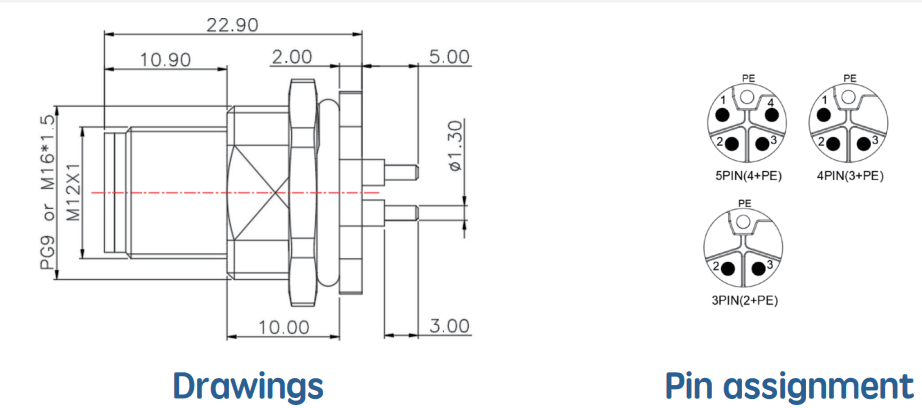

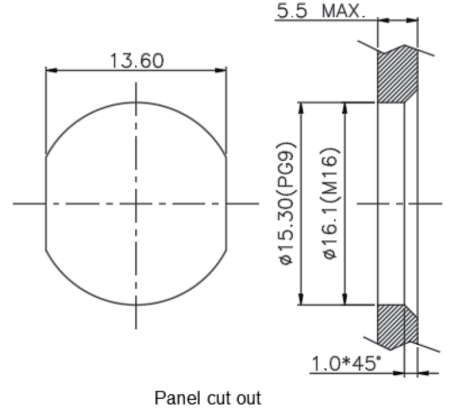

  • Dimension

Your Benefits
-Easy PCB assembly for wave soldering
-Standard pin assignments and codings for signal transmission with a uniform design-in design
-For high transmission reliability: optional shield connection to the housing and latching on the PCB

StandardIEC61076-2-111
Locking system
Fix screw locking
GenderMale
SeriesAM12
Ordering P/NAM12M0422L001
CodingL
Torque2.0N.M
CategoryDevice connector,rear mount
Connection typePCB dip-solder connection
Custom tariff number85444290
Country of originChina

Electrical

Rated current16A
Rated voltage63V
Rated Impulse voltage1500V
Insulation resistance≥ 100 MΩ
EMC compliance/
Degree of protectionIP67
Mechanical operation> 100  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability ratingAcc. to UL 94 V0
Contact material
Brass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Shell materialBrass with Nickle plated
