M12 panel receptacle, rear mount, male, contacts:4,  solder connection for wires, S code, straight, IP67
P/N: AM12M0412S171-XXX

M12 panel receptacle, rear mount, male, contacts:4, solder connection for wires, S code, straight, IP67

  • Description
  • Technical Data

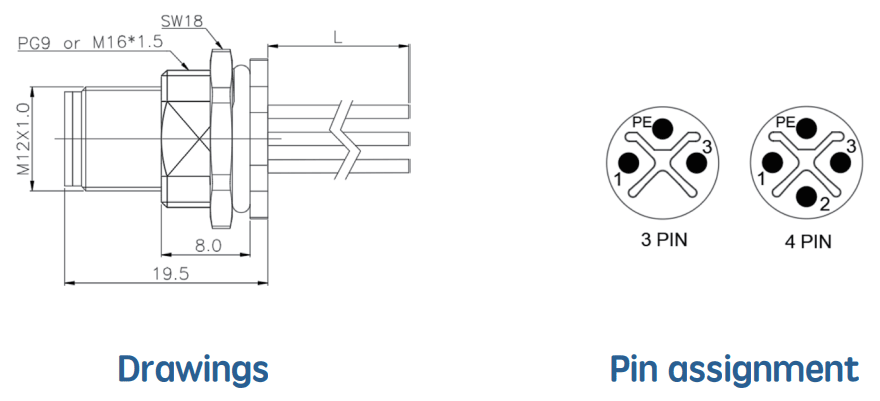

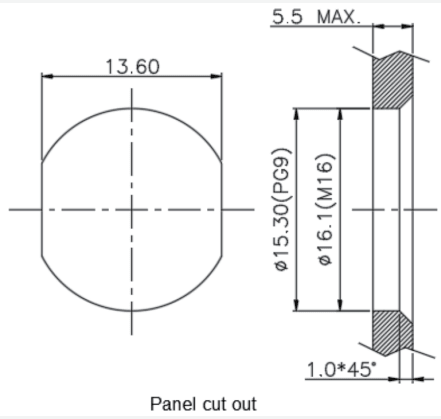

  • Dimension

Your Benefits
-Easy PCB assembly for wave soldering
-Standard pin assignments and codings for signal transmission with a uniform design-in design
-For high transmission reliability: optional shield connection to the housing and latching on the PCB

StandardIEC61076-2-111
Locking system
Fix screw locking
GenderMale
SeriesAM12
Ordering P/NAM12M0412S171-XXX
CodingS
Torque2.0N.M
CategoryDevice connector, rear mount
Connection typeSolder connection for wires
Wire gauge(max.)1.5mm²/16AWG
Custom tariff number85444290
Country of originChina

Electrical

Rated current12A
Rated voltage630V
Rated Impulse voltage6000V
Insulation resistance≥ 100 MΩ
EMC compliance/
Degree of protectionIP67
Mechanical operation> 100  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability ratingAcc. to UL 94 V0
Contact material
Brass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Shell materialBrass with Nickle plated
