Bayonet Connector BM24 3P Plug Connector Field Installation
P/N: BM24M0314A001

Bayonet Connector BM24 3P Plug Connector Field Installation

Field Installation Connectors

ADD TO REQUEST
  • Description
  • Technical Data

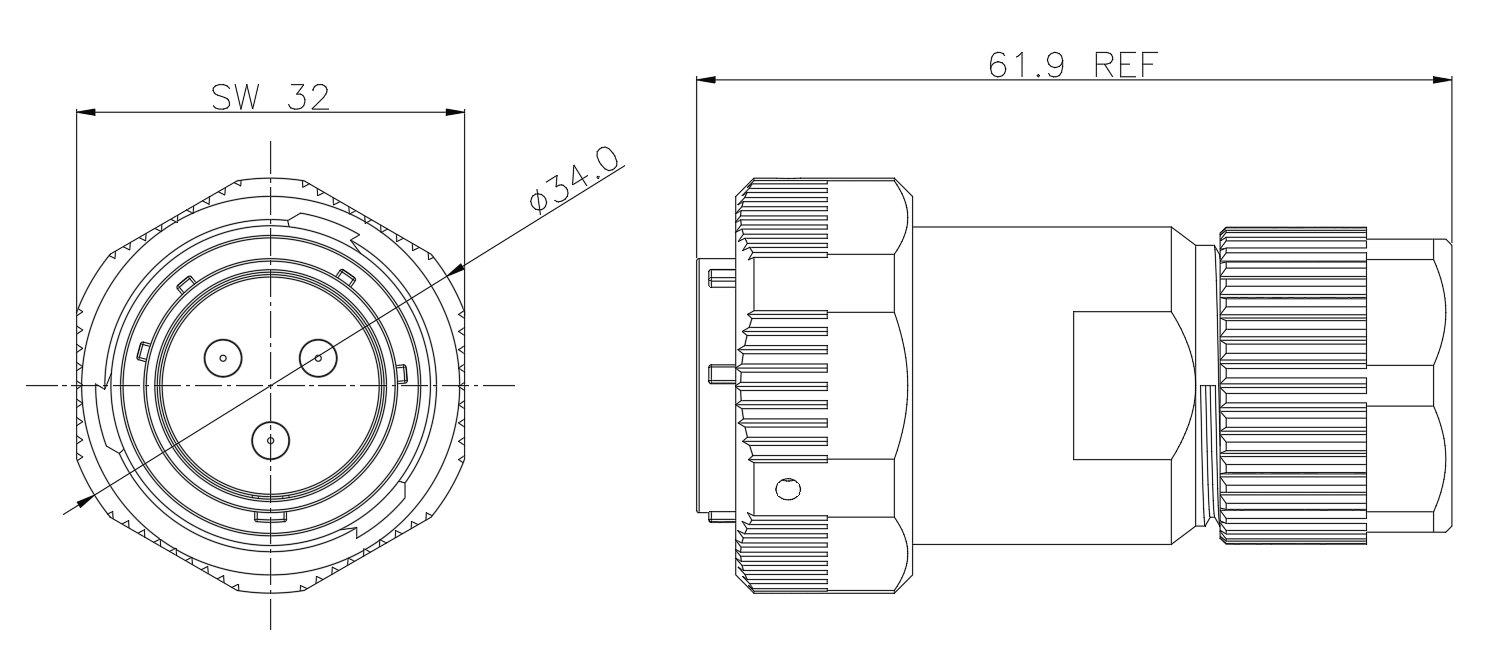

  • Dimension

Your Benefits

-100% Electrically tested plug-in components

-360° Shielding

StandardAMSONE
Locking systemBayonet
SeriesBM
Ordering P/N:BM24M0314A001
GenderMale
CodingA
Torque/
CategoryField Assembly
Connection typeSolder
Cable outlet10-14mm
Custom tariff number85444290
Country of originChina


Electrical

Rated current30A
Rated voltage500V
Rated Impulse voltage2500V
Mechanical operation> 100 mating cycles
Insulation resistance≥ 100 MΩ
EMC compliance360° Shieldable
Operation temperature-40 °C ~ 105 °C
Degree of protectionIP67

Material

Flammability rating
Acc. to UL94V-0
Contact materialBrass with Gold plated
Insulation materialPA
Shell materialZinc alloy with nickel plated
Sealing materialSilicone
Molding material/
