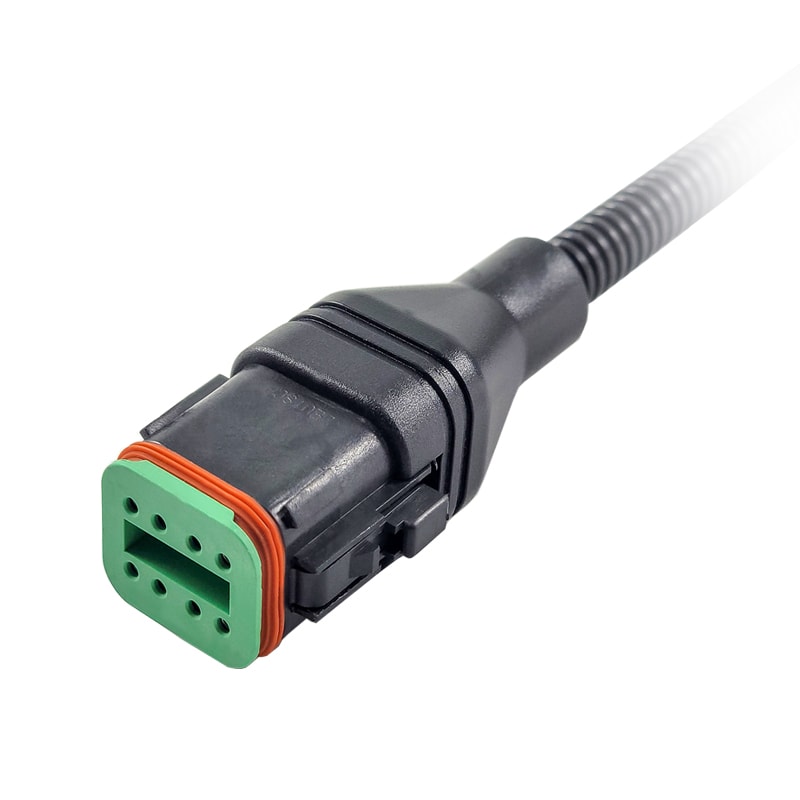

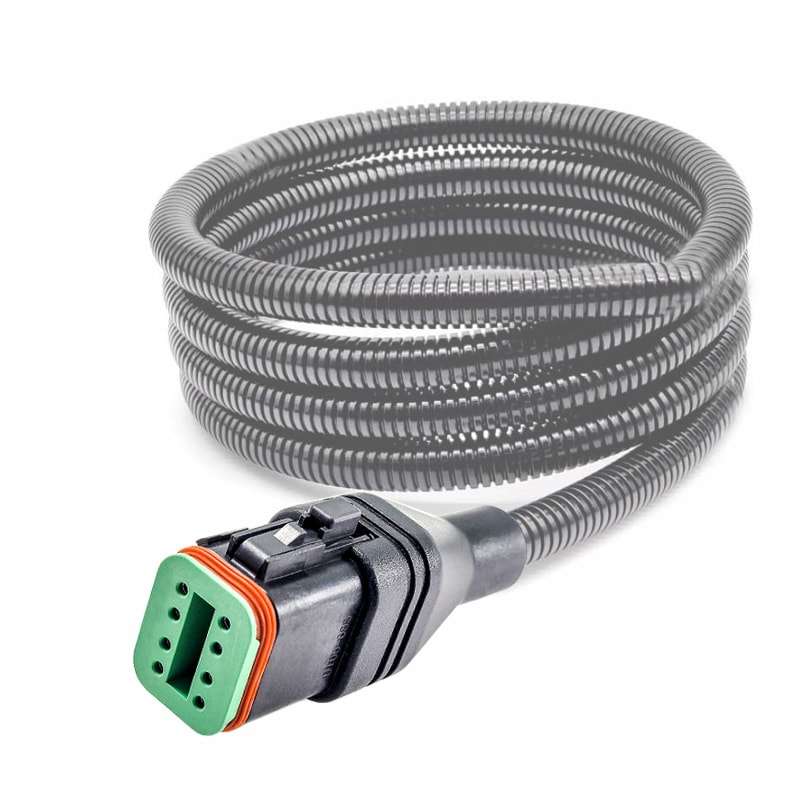

DT06-08S Pre-molded Connector IP67/IP68 Waterproof Bellows Sheath Cable
Electrical
| Rated current | 2A |
| Rated voltage | 30V |
| Rated Impulse voltage | 800V |
| Insulation resistance | ≥ 100 MΩ
|
| Degree of protection | IP67 |
| Mechanical operation | > 100 mating cycles |
| Operation temperature | -25 °C ~ 80 °C |
Cable
| Cable type | UL Style |
| Conductor cross section | 0.5mm² |
| Gauge (AWG) | 20AWG |
| Jacket | PVC/TPU |
| Temperature | -25 °C ~ 80 °C
|
| Other resistance | UV resistant (720 h) UL 2556 |
| Premium oil resistant jacket |
| Wire colour | Black or variable |
| Length | variable |
Material
| Flammability rating | Acc. to UL 94 V0 |
Contact material
| Brass with Au plating |
| Insulation material | PA66 |
| Sealing material | Silicone |
| Molding material | PVC/TPU |
