M12 panel receptacle, female, contacts: 4, solder connection for wires, T code, straight, IP67
P/N: AM12F0412T171 -XXX

M12 panel receptacle, female, contacts: 4, solder connection for wires, T code, straight, IP67

ADD TO REQUEST
  • Description
  • Technical Data

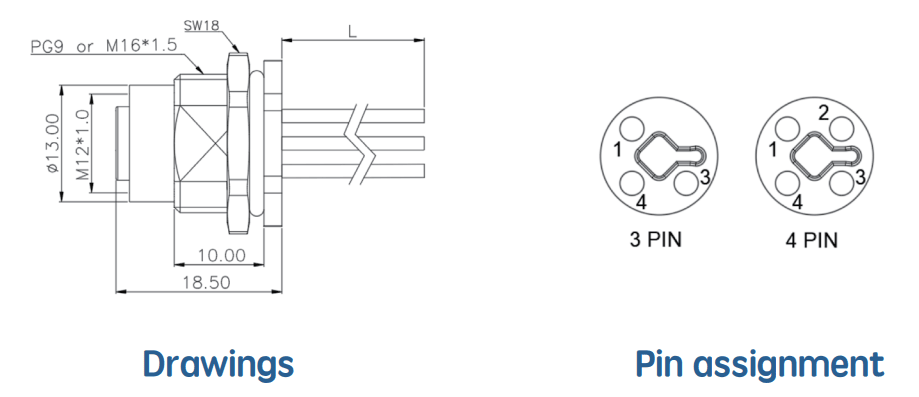

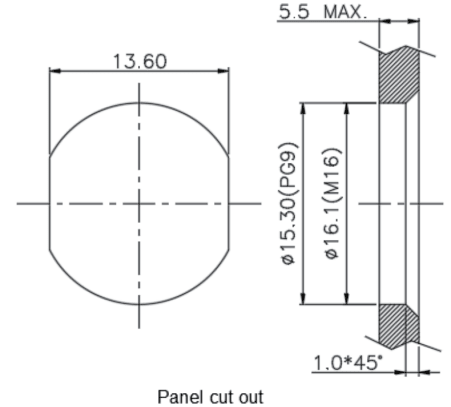

  • Dimension

Your Benefits

-100% electrically tested plug-in components

-For compact devices: can transmit very high power in limited space

-The gasket is protected by excessive tightening to achieve long-term reliable sealing

StandardIEC 61076-2-111
Locking systemFix screw locking
SeriesAM12
Ordering P/N:AM12F0412T171 -XXX
GenderFemale
CodingT
Torque2.0N.M
CategoryDevice connector, rear mount
Connection typeSolder connection for wires
Wire gauge(max.)0.15mm²/16AWG
Custom tariff number85444290
Country of originChina


Electrical data

Rated current12A
Rated voltage63V
Rated Impulse voltage1500V
Mechanical operation> 100  mating cycles
Insulation resistance≥ 100 MΩ
EMC compliance/
Operation temperature-25 °C ~ 85 °C
Degree of protectionIP67

Material

Flammability rating
Acc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA66
Jam nut materialBrass with Nickle plated
Sealing materialSilicone
Shell materialBrass with Nickle plated
