M12 K Code 5P(4+PE) Female Panel Front Mount Receptacle Connector
P/N: AM12F0513K371-005

M12 K Code 5P(4+PE) Female Panel Front Mount Receptacle Connector

  • Description
  • Technical Data

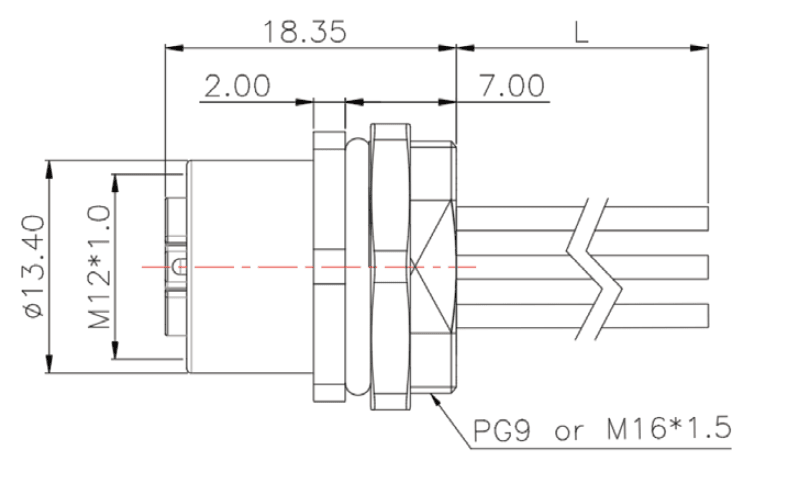

  • Dimension

 Your Benefits
-100% electrically tested plug-in components
-For compact devices: can transmit very high power in limited space
-The gasket is protected by excessive tightening to achieve long-term reliable sealing

Standard IEC 61076-2-111
Locking system Fix screw locking
Series AM12
Ordering P/N: AM12F0513K371-005
Gender Female

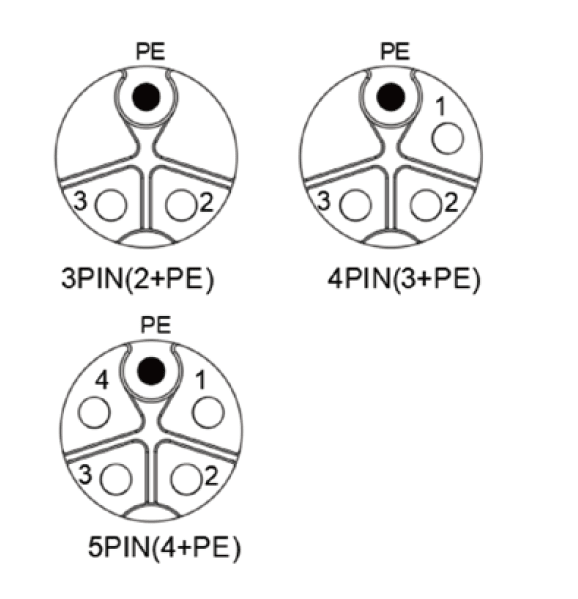

No. of Contacts 5(4+PE)
Category Panel rear mount receptacles
Connection type Solder for single wires
Coding L
Locking nut PG9
Torque 0.8~1.3Nm(mount torque)
Custom tariff number 85444290
Country of origin China



 Electrical data

Rated current12A
Rated voltage630V AC
Rated Impulse voltage6000V
Mating cycle> 100
Insulation resistance≥ 100 MΩ
EMC complianceNON
Operation temperature-25 °C ... 85 °C
Protection degreeIP67

Material

Flammability rating according to UL 94V0
Contact materialBrass with Au plating
Insulation materialPA66+GF
Body/Nut materialNickle-plated brass
Sealing materialSilicone
shell materialNickle-plated brass

Cable

Cable typeUL Style
Cable jacketPVC
Conductor cross setion1.5 mm²
AWG signal line16
Working Temperature-20 °C ... 80 °C (cable, flexible installation)
-40 °C ... 80 °C (cable, fixed installation)
Wire colourbrown, white, blue, black, yellow/green
Lengthvariable
