M12 data cable connector, contact: 8P, male, for pre-molding , X code, straight, 360 EMC shielding, solder connection, 0.5A/60V
P/N: AM12M0811X003

M12 data cable connector, contact: 8P, male, for pre-molding , X code, straight, 360 EMC shielding, solder connection, 0.5A/60V

ADD TO REQUEST
  • Description
  • Technical Data

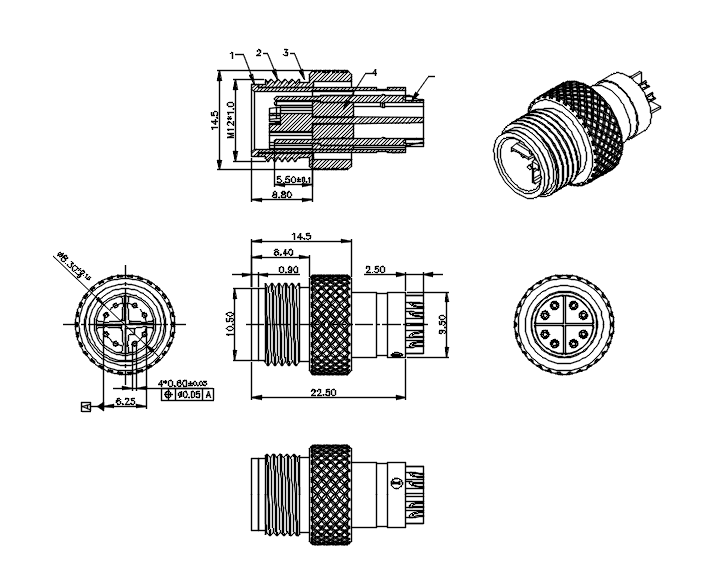

  • Dimension

Your Benefits

-100% electrically tested plug-in components

-For compact devices: reliable data can be transmitted in limited space

StandardIEC 61076-2-111
Locking systemFix screw locking
SeriesAM12
Ordering P/N:AM12M0811X003
GenderMale
No. of Contacts8P
CategoryPre-molding
Connection typeSolder
CodingX
Locking nutM12
Torque0.4N.M
Custom tariff number85444290
Country of originChina


Electrical data

Rated current0.5A
Rated voltage60V DC
Rated Impulse voltage
Mating cycle> 100
Insulation resistance≥ 100 MΩ
EMC compliance360 EMS shileding
Operation temperature-25 °C ... 85 °C
Protection degreeIP67

Material

Flammability rating according to UL 94V0
Contact materialBrass with Au plating
Insulation materialPA66+GF
Body/Nut materialNickle-plated brass
Sealing materialSilicone
shell material/
