1+1PIN,2 +2PIN Watertight connector, hybrid, Degree of protection:450M(Water depth)
P/N: SC19H0211SXX1-XXX

1+1PIN,2 +2PIN Watertight connector, hybrid, Degree of protection:450M(Water depth)

ADD TO REQUEST
  • Description
  • Technical Data

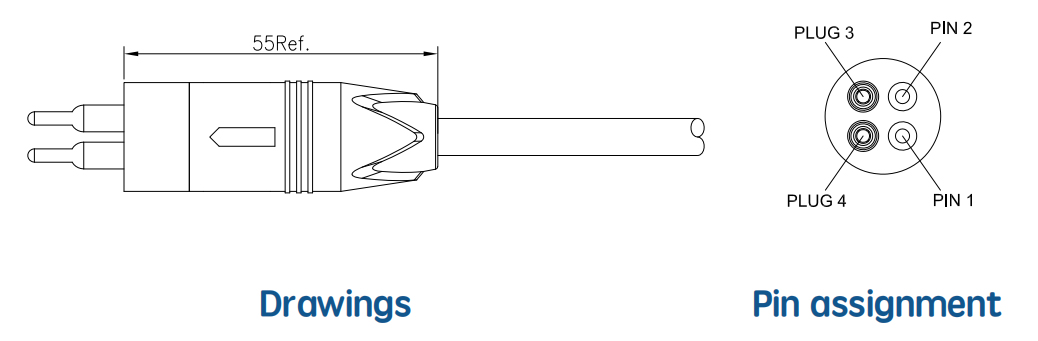

  • Dimension

Your Benefits

-100% electrically tested plug-in components

-DC connectors for up to 12 A and 63 V AC

-Halogen-free and high flexible PUR cable                                                                                                                -360°shielding, reliable shielding performance

Standard/
Locking system/
SeriesSC19
Ordering P/N:SC19H0211SXX1-XXX
GenderHybrid
Coding/
Torque/
CategoryPre-molded cable
Connection typeSolder connection
Cable outlet6.5MM
Custom tariff number85444290
Country of originChina


Electrical

Rated current15A
Rated voltage300V AC
Rated Impulse voltage1000V
Mechanical operation> 100 mating cycles
Insulation resistance≥ 100 MΩ
EMC compliance/
Operation temperature-10°C ~ 60 °C
Degree of protection450M(Water depth)

Cable

Cable typeVariable
Conductor cross section0.5mm²
Gauge (AWG)20AWG
Temperature-10°C ~ 60 °C
Other resistanceUV resistant (720 h) UL 2556

Premium oil resistance (jacket)
Wire colourvariable
Lengthvariable

Material

Flammability rating
Acc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialEPDM
Ring nut material/
Sealing material/
Molding material/
