M12 FieldBUS Industrial Automation Terminal Box of CANOpen
P/N:

M12 FieldBUS Industrial Automation Terminal Box of CANOpen

120 ohm impedance

  • Description
  • Technical Data

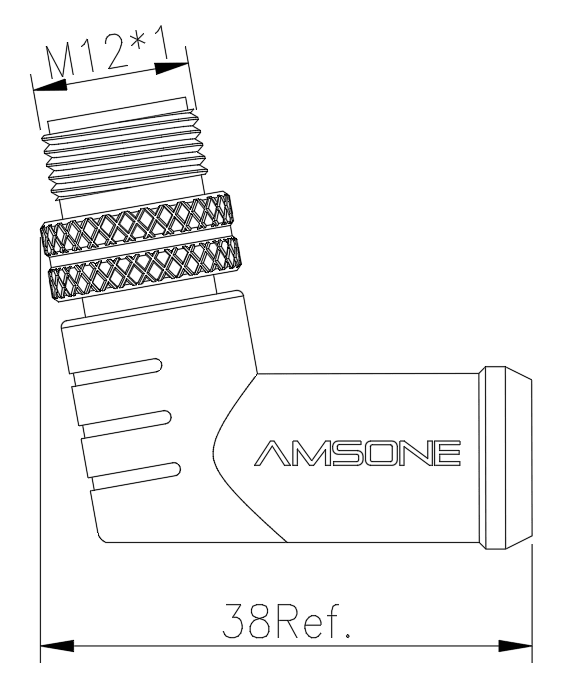

  • Dimension

Your Benefits
-Easy PCB assembly for wave soldering
-Standard pin assignments and codings for signal transmission with a uniform design-in design
-For high transmission reliability: optional shield connection to the housing and latching on the PCB

StandardIEC61076-2-101
Locking system
Fix screw locking
GenderFemale
SeriesAM12
Ordering P/N/
CodingA
Torque0.4N.M
CategoryPre-molded cable
Connection typeSolder connection
Cable outletVariable
Custom tariff number85444290
Country of originChina

Electrical

Rated current4A
Rated voltage60V
Rated Impulse voltage1500V
Insulation resistance≥ 100 MΩ
EMC complianceOptional
Degree of protectionIP67
Mechanical operation> 100  mating cycles
Operation temperature-25 °C ~ 85 °C

Cable

Cable type/
Conductor cross section/
Gauge (AWG)/
Jacket

/

Temperature-25 °C ~ 85 °C
Other resistanceUV resistant (720 h) UL 2556

Premium oil resistance (jacket)
Wire colourvariable
Lengthvariable

Material

Flammability ratingAcc. to UL 94 V0
Contact material
Brass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Molding materialPVC/TPU



×
