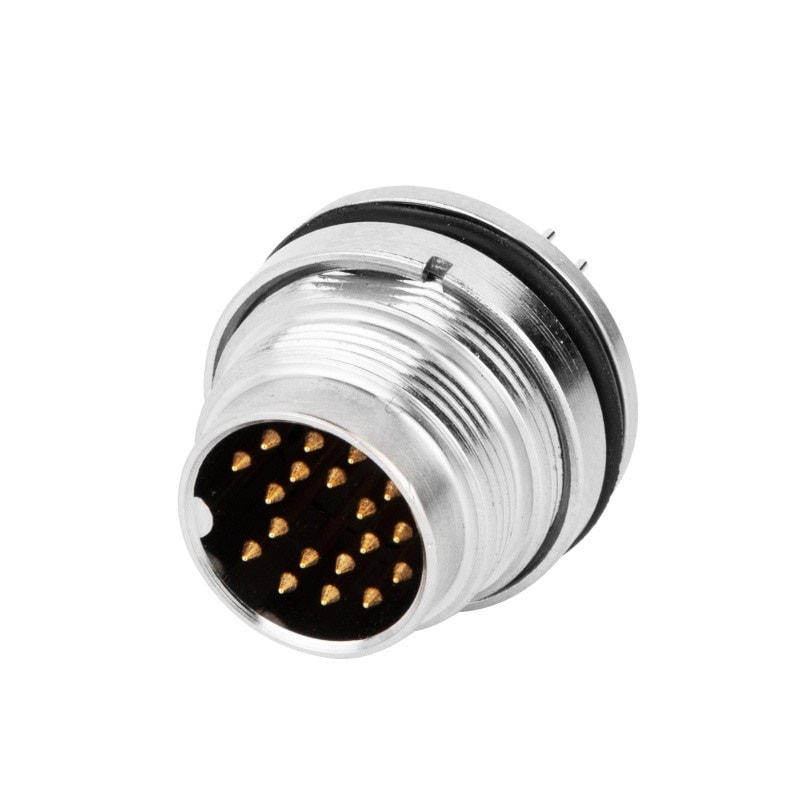

M16 panel receptacle, rear mount, male, contacts:12,14,16,19, PCB dip-solder connection, straight, IP67, UL certified
P/N: AM16M1922A001

M16 panel receptacle, rear mount, male, contacts:12,14,16,19, PCB dip-solder connection, straight, IP67, UL certified

  • Description
  • Technical Data

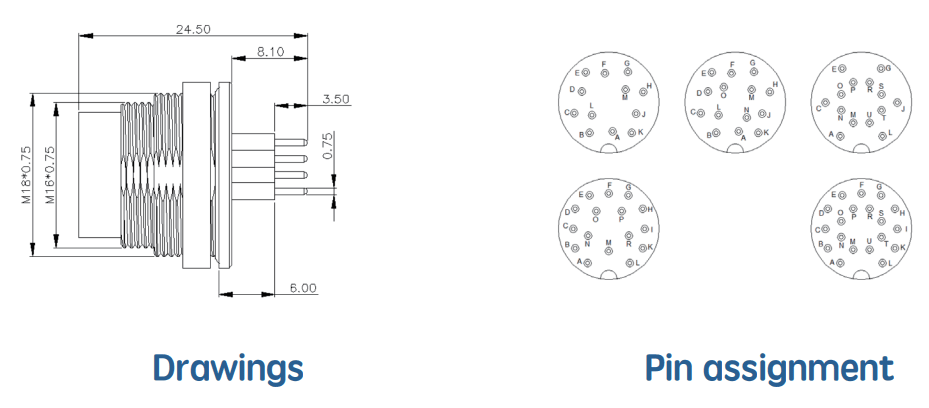

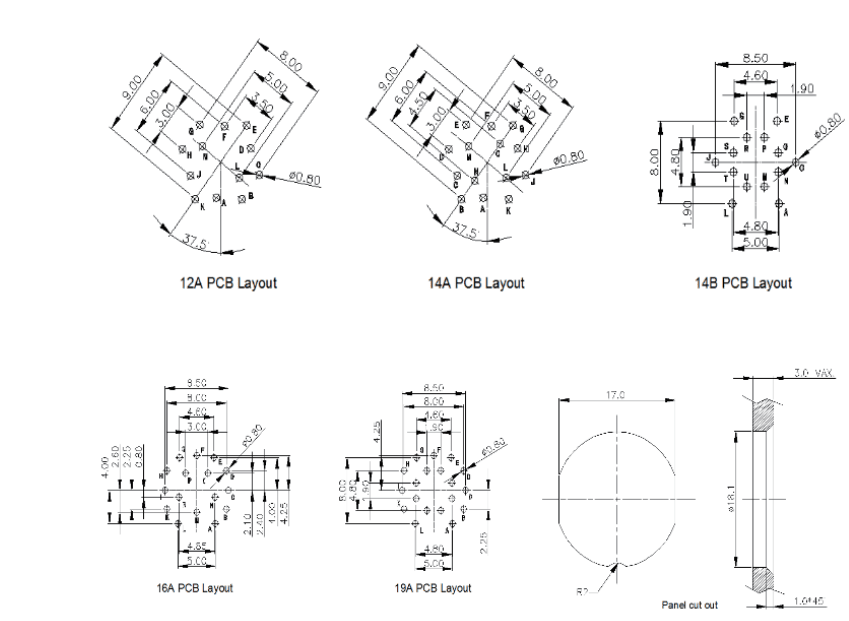

  • Dimension

Your Benefits

- Degree of protection IP67

- AISG ccompatible

- UL certified under number E517859


StandardDIN EN61076-2-106
Locking systemFix screw locking
SeriesAM16
Ordering P/N:AM16M1922A001
GenderMale
No. of Contacts19
CategoryDevice connector, rear mount
Connection typePCB dip-solder connection
CodingA
Custom tariff number85444290
Country of originChina

Approvals

Approval 1UL


Electrical

Rated current3A
Rated voltage60V
Rated Impulse voltage800V
Insulation resistance≥ 100 MΩ
EMC compliance/
Protection degreeIP67
Mating cycle> 500  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability rating
Acc. to UL94V-0
Contact materialBrass with Gold plated
Insulation materialPA66
Jam nut materialBrass with Nickel plated
Sealing materialSilicone
Shell materialZinc alloy with Nickel plated
