P/N: CIOHM2011AXX1-XXX

Push-Pull HDMI Patch Cable Removable Carrie Fit EMC Shieldable IP65

HDMI High Speed with Ethernet. The cables are available in 0.6 m, 1 m, 3 m, 5 m and 10 m (10m cable complies with HDMI 1.4 speciﬁcations) cable length. Mates with conventional HDMI receptacles if cable carrier is removed

ADD TO REQUEST

Description
Technical Data
Images

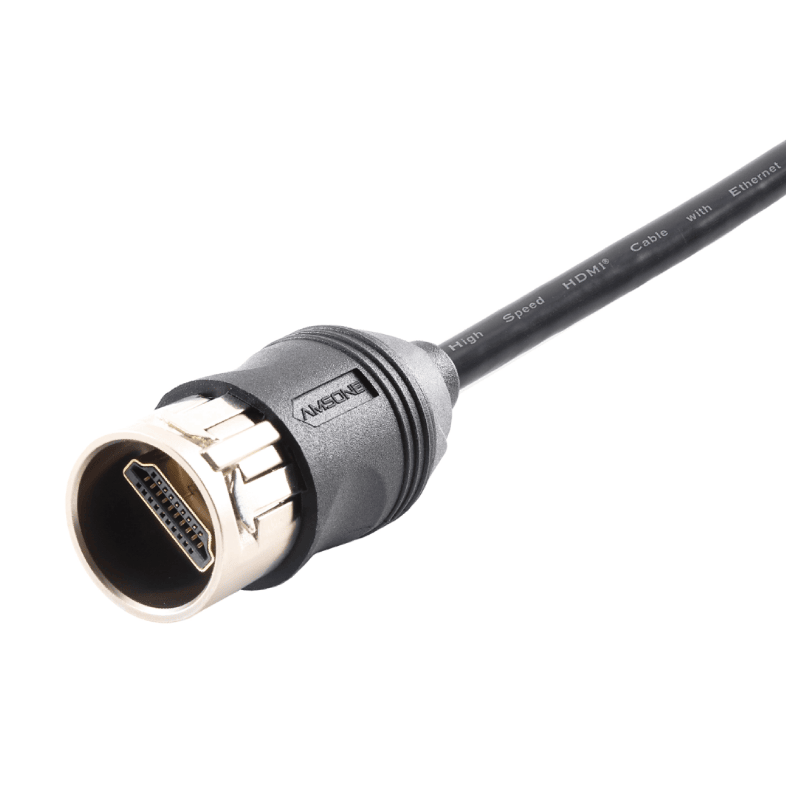

Push-pull, HDMI 2.0 male, pre-molded patch cables, with removable carrie fit, 360°EMC shieldable,IP65

General information

Easily integrated into video networks, AMSONE's CIO series HDMI solutions of patch cables and feed through adpaters transmit video signals at the full HDMI 2.0 specification from any industrial devices, digital TV and PC video format including high-definition video (HDTV):

Push-pull locking system, cables overmolded flex relief ,continuous 360 degree shield, rugged metal cable carrier fit

Features and Benefits

1. Data rate up to 10.2 GBit/s

2. Push Pull mating design provides secure locking system if mated with CIO series HDMI metal carrier

3. Removable screen to chassis grounding and rugged diecast carrier

4. IP65 ingress protection in mated condition with CIO series HDMI metal carrier and sealing gasket

5. Shielded connection - high noise immunity and EMI protection due to continuous 360 degree shield

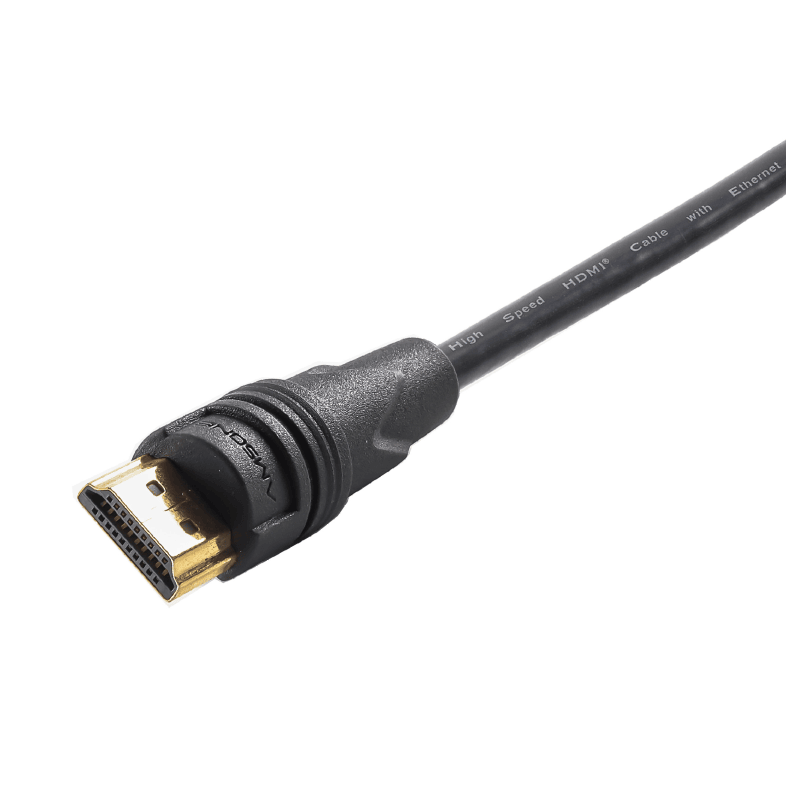

6. Mates with conventional HDMI receptacles if cable carrier is removed

7. Compatible with both standard HDMI patch cables and AMSONE's push-pull locking, customized pre-molded cable assemblies

8. AMSONE CIO series HDMI feedthrough adapter with 19 pole HDMI receptacle at both ends

HDMI 2.0 Ultra HD video Cable IP65 Waterproof cable

Electrical

Rated current	0.5A
Rated voltage	40V
Rated Impulse voltage	300V
Insulation resistance	≥ 100 MΩ
EMC compliance	360° shieldable
Degree of protection	IP65
Mechanical operation	> 100 mating cycles
Operation temperature	-25 °C ~ 85 °C

Cable

Cable type	UL 20276 Style
Conductor cross section	0.08mm²
Gauge (AWG)	28AWG
Jacket	PVC/TPE
Temperature	-25 °C ~ 80 °C
Other resistance	UV resistant (720 h) UL 2556
	Premium oil resistance
Wire colour	Black or variable
Length	variable

Material

Flammability rating	Acc. to UL 94 V0
Contact material	Brass with Gold plated
Insulation material	LCP
Shell material	Zinc die casting
Sealing material	/
Molding material	PVC
