M16 panel receptacle, rear mount, male, contacts:12,PCB dip-solder connection, straight, IP67, UL certified
P/N: AM16M1222A001

M16 panel receptacle, rear mount, male, contacts:12,PCB dip-solder connection, straight, IP67, UL certified

Panel Rear Mount Receptacle
T Code Straight PCB Dip-solder Connection

ADD TO REQUEST
  • Description
  • Technical Data

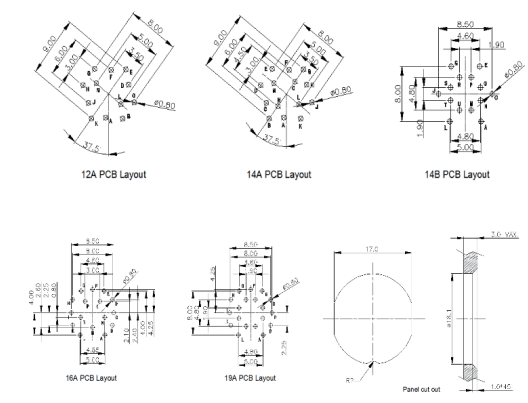

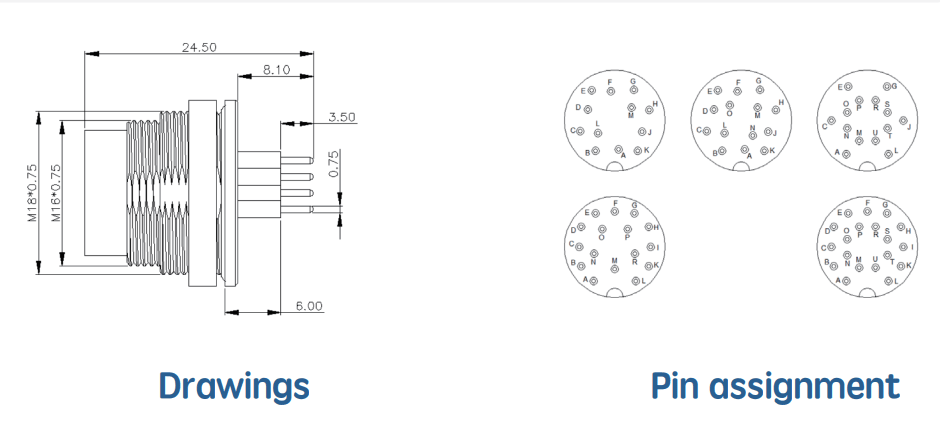

  • Dimension

Your Benefits

-100% electrically tested plug-in components

-For compact devices: can transmit very high power in limited space

-The gasket is protected by excessive tightening to achieve long-term reliable sealing

StandardIEC 61076-2-111
Locking systemFix screw locking
SeriesAM16
Ordering P/N:AM16M1222A001
GenderMale
CodingA/B
Torque3.0N.M
CategoryDevice connector, rear mount
Connection typePCB dip-solder connection
Custom tariff number85444290
Country of originChina


Electrical

Rated current3A
Rated voltage60V AC
Rated Impulse voltage800V
Mechanical operation> 500 mating cycles
Insulation resistance≥ 100 MΩ
EMC compliance/
Operation temperature-25 °C ~ 85 °C
Protection degreeIP67

Material

Flammability ratingAcc. to UL94V-0
Contact materialBrass with Gold plated
Insulation materialPA66
Jam nut materialBrass with Nickel plated
Sealing materialSilicone
shell materialZinc alloy with Nickel
plated
