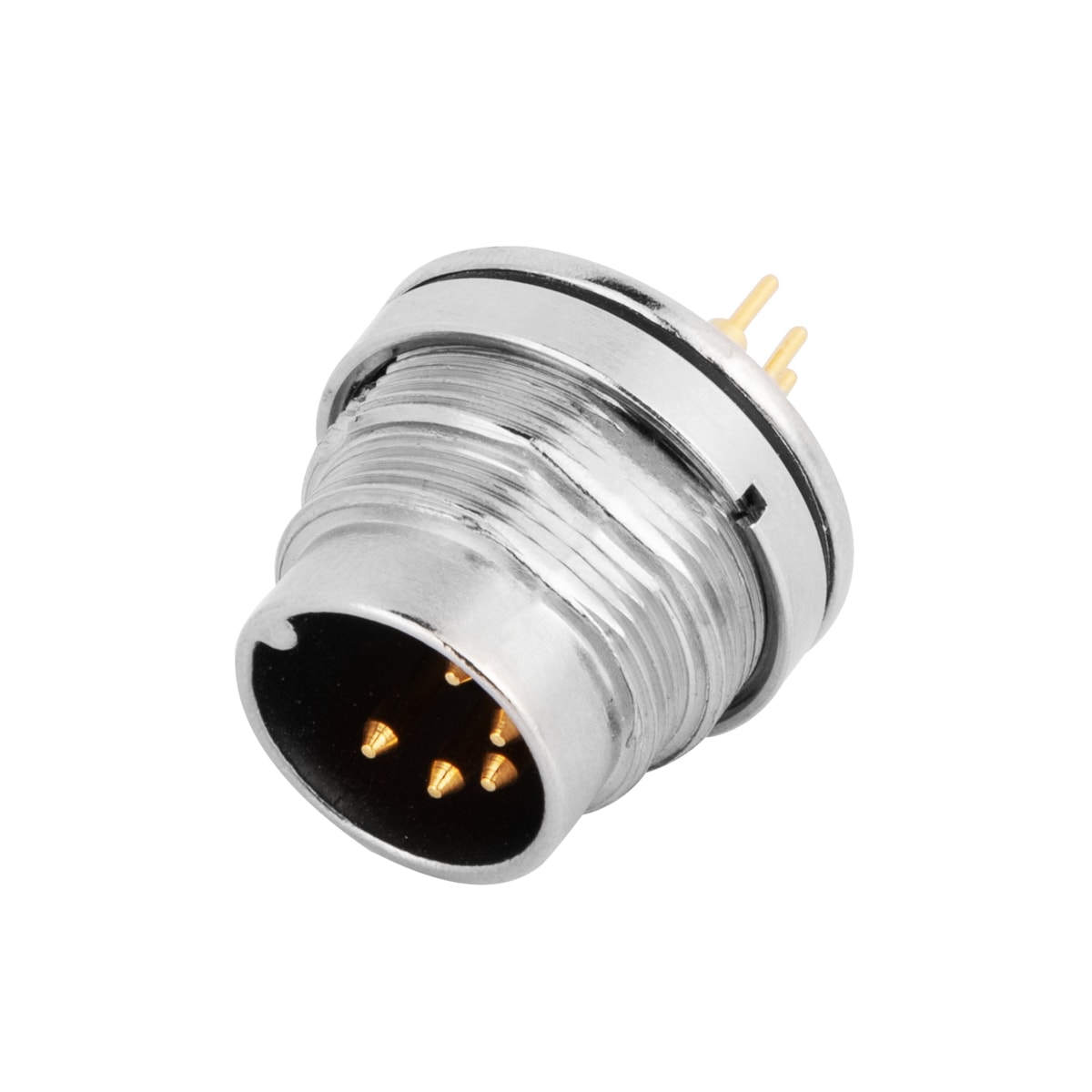

M16 male panel receptacle, contacts: 7, rear mount, PCB dip-solder connection, straight, IP67, Fastening thread: M18*0.75,UL certified
P/N: AM16M0722A001

M16 male panel receptacle, contacts: 7, rear mount, PCB dip-solder connection, straight, IP67, Fastening thread: M18*0.75,UL certified

ADD TO REQUEST
  • Description
  • Technical Data

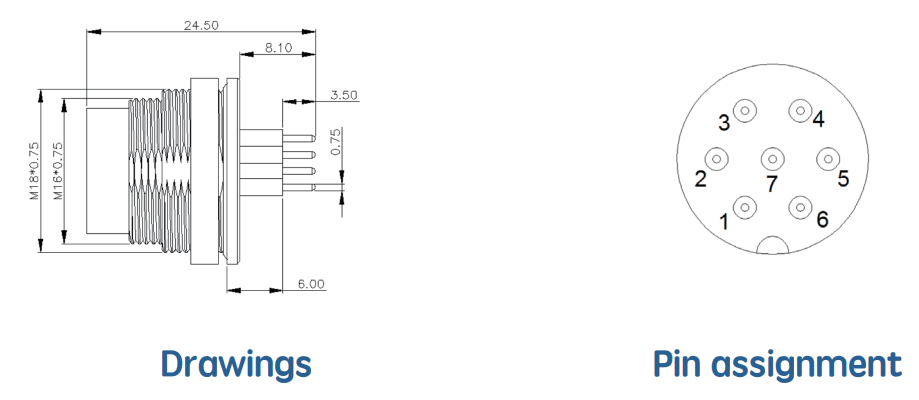

  • Dimension

Your Benefits

- Degree of protection IP67

- AISG ccompatible

- UL certified under number E517859


StandardDIN EN61076-2-106
Locking systemFix screw locking
SeriesAM16
Ordering P/N:AM16M0722A001
Gendermale
No. of Contacts7
Categorypanel rear mount  receptacle
Connection typePCB dip solder
CodingA
Locking nutM18*0.75mm
Custom tariff number85444290
Country of originChina

Approvals

Approval 1UL


Electrical data

Rated current5A
Rated voltage125V
Rated Impluse voltage800V
Insolation resistance≥ 100 MΩ
EMC complianceNon
Protection degreeIP67
Mating cycle> 500  mating cycles
Opertation temprature-25 °C ... 85 °C

Material spec

Flammability rating according to UL 94UL94-V0
Contact materialBrass with Au plating
Insolation materialPA66+GF
Nut materialNickle-plated brass
Sealing materialSilicone
Overmold/shell materialNickle-plated brass
