Bayonet Connector BM24 12P Receptacle Panel Mount PCB Connect
P/N: BM24F1222A001

Bayonet Connector BM24 12P Receptacle Panel Mount PCB Connect

Device Connectors

ADD TO REQUEST
  • Description
  • Technical Data

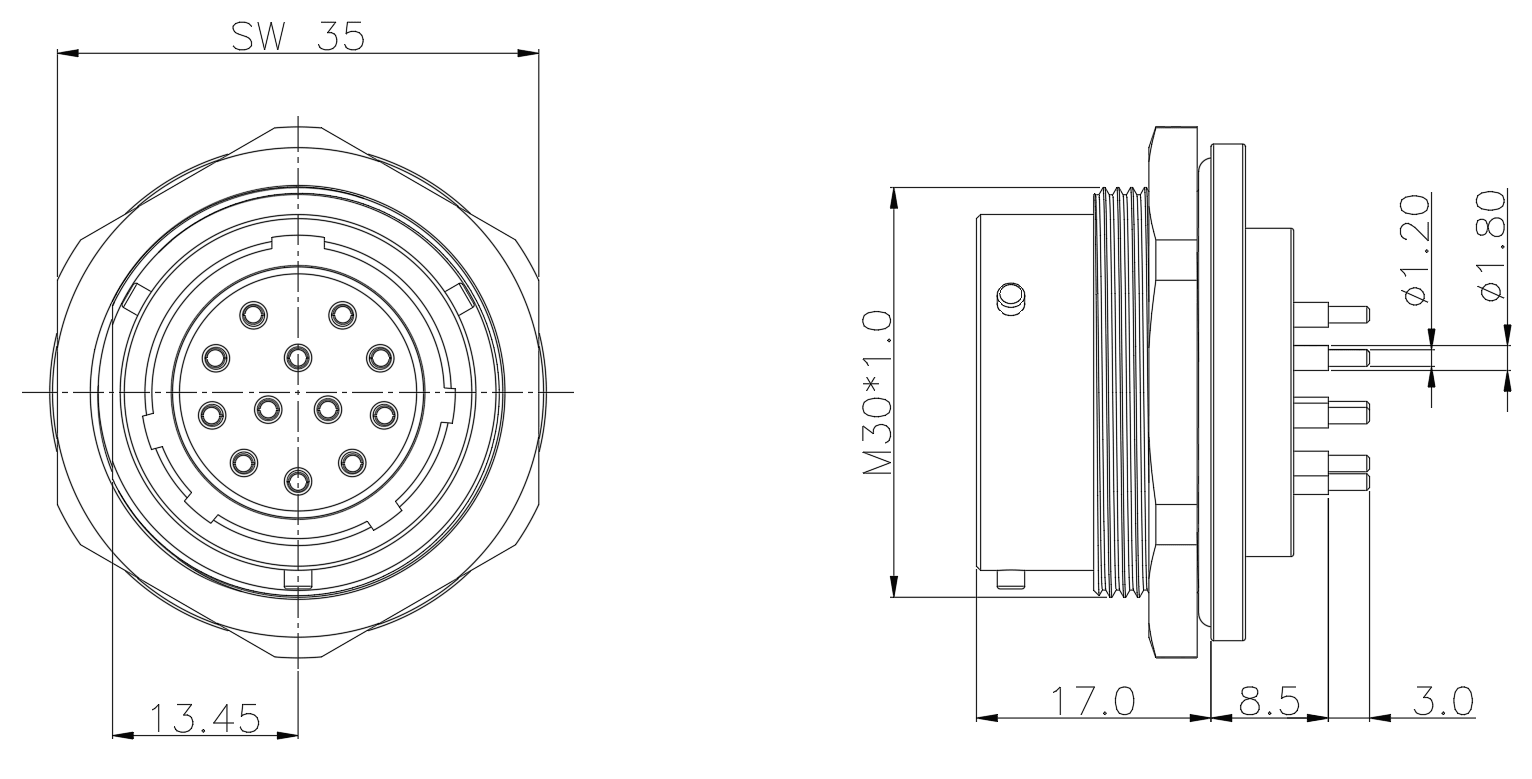

  • Dimension

Your Benefits

-100% Electrically tested plug-in components

-360° Shielding

StandardAMSONE
Locking systemBayonet
SeriesBM
Ordering P/N:BM24F1222A001
GenderFemale
CodingA
Torque/
CategoryDevice Connector
Connection typePCB dip-solder connection
Cable outlet/
Custom tariff number85444290
Country of originChina


Electrical

Rated current10A
Rated voltage400V
Rated Impulse voltage2500V
Mechanical operation> 100 mating cycles
Insulation resistance≥ 100 MΩ
EMC compliance/
Operation temperature-40 °C ~ 105 °C
Degree of protectionIP67

Material

Flammability rating
Acc. to UL94V-0
Contact materialBrass with Gold plated
Insulation materialPA
Shell materialZinc alloy with nickel plated
Sealing materialSilicone
Molding material/
