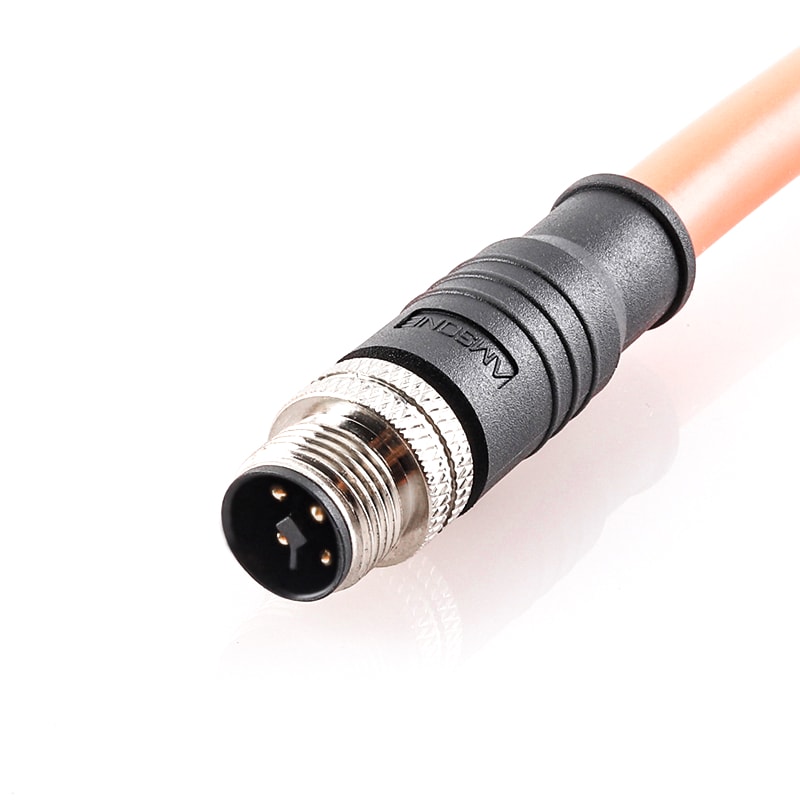

M12 pre-molded cable connector, male, contacts:4, solder connection, T code, straight, IP67
P/N: AM12M0411TXX1-XXX

M12 pre-molded cable connector, male, contacts:4, solder connection, T code, straight, IP67

  • Description
  • Technical Data

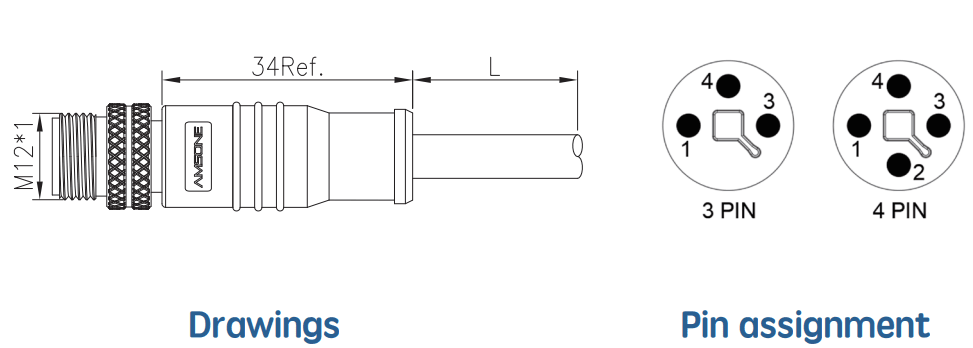

  • Dimension

Your Benefits

-100% electrically tested plug-in components

-DC connectors for up to 12 A and 63 V AC

-Halogen-free and high flexible PUR cable                                                                                                                 -360°shielding, reliable shielding performance

StandardIEC 61076-2-111
Locking systemFix screw locking
SeriesAM12
Ordering P/N:AM12M0411TXX1-XXX
GenderMale
CodingT
Torque0.4N.M
CategoryPre-molded cable
Connection typeSolder connection
Cable outletVariable
Custom tariff number85444290
Country of originChina


Electrical

Rated current12A
Rated voltage63V
Rated Impulse voltage1500V
Mechanical operation> 100  mating cycles
Insulation resistance≥ 100 MΩ
EMC complianceOptional
Operation temperature-25 °C ~ 85 °C
Degree of protectionIP67

Cable

Cable typeUL Style
Conductor cross section0.15mm²
Gauge (AWG)16AWG
Jacket

PVC/TPU

Temperature-25 °C ~ 85 °C
Other resistanceUV resistant (720 h) UL 2556

Premium oil resistance (jacket)
Wire colourvariable
Lengthvariable

Material

Flammability rating
Acc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Molding materialPVC/TPU
