MCBH8M Mirco Underwater connector Underwater cable factory
P/N: MCBH8M

MCBH8M Mirco Underwater connector Underwater cable factory

  • Description
  • Technical Data

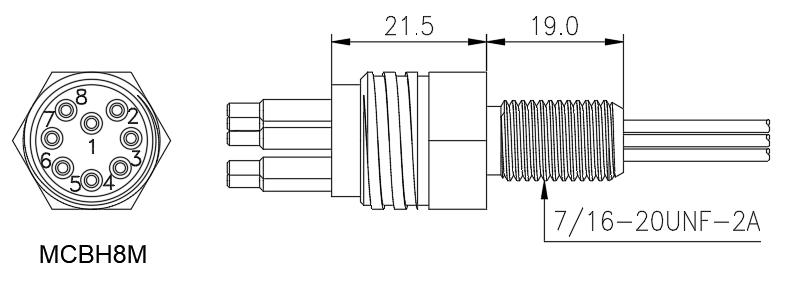

  • Dimension

Your Benefits

-100% electrically tested plug-in components

-DC connectors for up to 5 A and 300 V AC

-Halogen-free and PTEF cable

Standard/
Locking systemFix screw locking
SeriesSC
Ordering P/N:MCBH8M
GenderMale
Coding/
Torque/
CategoryDevice Connector
Connection typeSolder connection
Cable outlet/
Custom tariff number85444290
Country of originChina


Electrical

Rated current5A
Rated voltage300V AC
Rated Impulse voltage1500V
Mechanical operation> 100 mating cycles
Insulation resistance≥ 200 MΩ
EMC compliance/
Operation temperature-40°C ~ 60 °C
Degree of protection3000M(Water depth)

Cable

Cable typeVariable
Conductor cross section0.5mm²
Gauge (AWG)20AWG
Temperature-40°C ~ 60 °C
Other resistanceUV resistant (720 h) UL 2556

Premium oil resistance
Wire colourvariable
Lengthvariable

Material

Flammability rating
Acc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialChloroprene Rubber
Ring nut materialPOM
Sealing materialNitrile Rubber
Molding materialChloroprene Rubber
