M16 pre-molded cable connector, female, contacts:5, solder connection, right angled, IP67, shieldable, UL certified
P/N: AM16F0511AXX2-XXX

M16 pre-molded cable connector, female, contacts:5, solder connection, right angled, IP67, shieldable, UL certified

  • Description
  • Technical Data

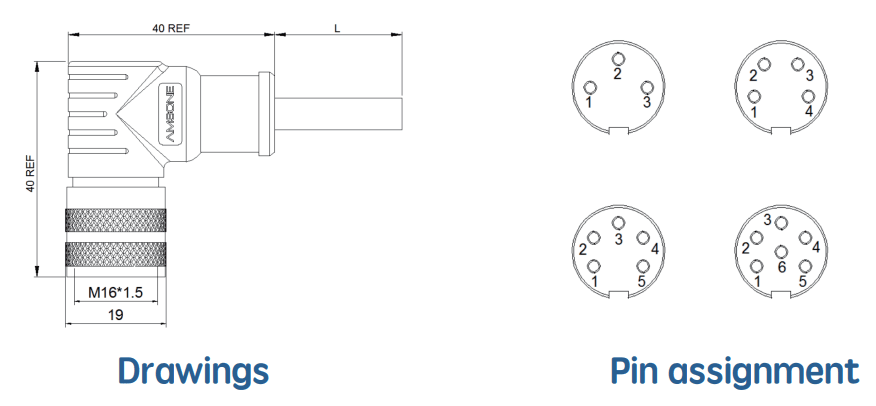

  • Dimension

Your Benefits
-Easy PCB assembly for wave soldering
-Standard pin assignments and codings for signal transmission with a uniform design-in design
-For high transmission reliability: optional shield connection to the housing and latching on the PCB

StandardIEC61076-2-106
Locking system
Fix screw locking
GenderFemale
SeriesAM16
Ordering P/NAM16F0511AXX2-XXX
CodingA
Torque0.6N.M
CategoryPre-molded cable
Connection typeSolder connection
Cable outletVariable
Custom tariff number85444290
Country of originChina

Electrical

Rated current5A
Rated voltage250V
Rated Impulse voltage1500V
Insulation resistance≥ 100 MΩ
EMC complianceShieldable
Degree of protectionIP67
Mechanical operation> 500  mating cycles
Operation temperature-25 °C ~ 85 °C

Cable

Cable typeUL Style
Conductor cross section0.75mm²
Gauge (AWG)18AWG
Jacket

PVC/TPU

Temperature-25 °C ~ 85 °C
Other resistanceUV resistant (720 h) UL 2556

Premium oil resistance (jacket)
Wire colourvariable
Lengthvariable

Material

Flammability ratingAcc. to UL 94 V0
Contact material
Brass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Molding materialPVC\TPU
