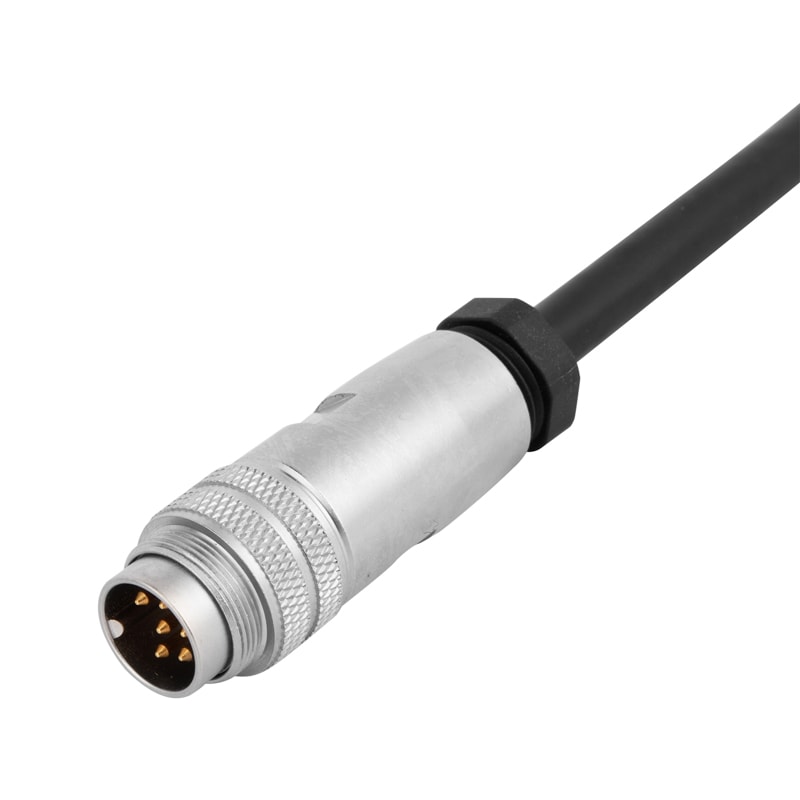

M16 cable connector, male, contacts:7, field assembly type, solder connection, straight, IP67, UL certified
P/N: AM16M0714A001

M16 cable connector, male, contacts:7, field assembly type, solder connection, straight, IP67, UL certified

ADD TO REQUEST
  • Description
  • Technical Data

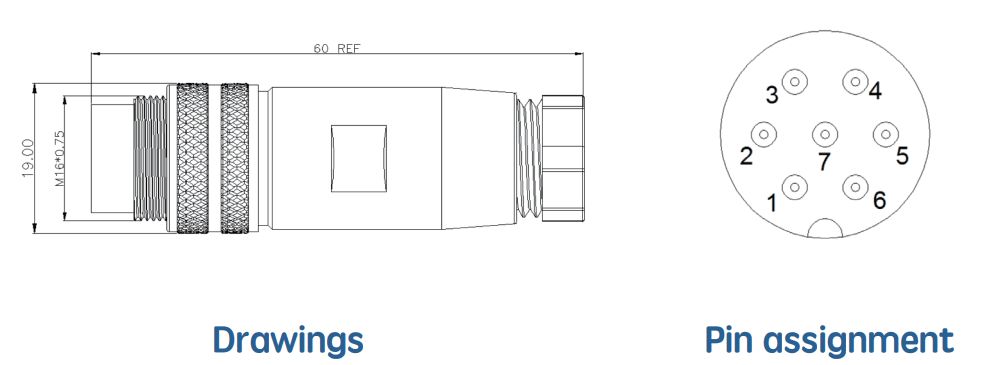

  • Dimension

Your Benefits

- Degree of protection IP67

- 360° EMC shielding solution

- AISG ccompatible

- UL certified under number E517859


StandardDIN EN61076-2-106
Locking systemFix screw locking
SeriesAM16
Ordering P/N:AM16M0714A001
GenderMale
No. of Contacts7
Torque0.6N.M
CategoryPre-molded cable
Connection typeSolder connection
CodingA
Wire gauge(max.)0.75MM²/18AWG
Cable outlet6~8MM
Custom tariff number85444290
Country of originChina

Approvals

Approval 1UL


Electrical

Rated current5A
Rated voltage125V
Rated Impulse voltage800V
Insulation resistance≥ 100 MΩ
EMC complianceShielding
Protection degreeIP67
Mechanical operation> 500  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability rating
Acc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Shell materialBrass with Nickle plated
