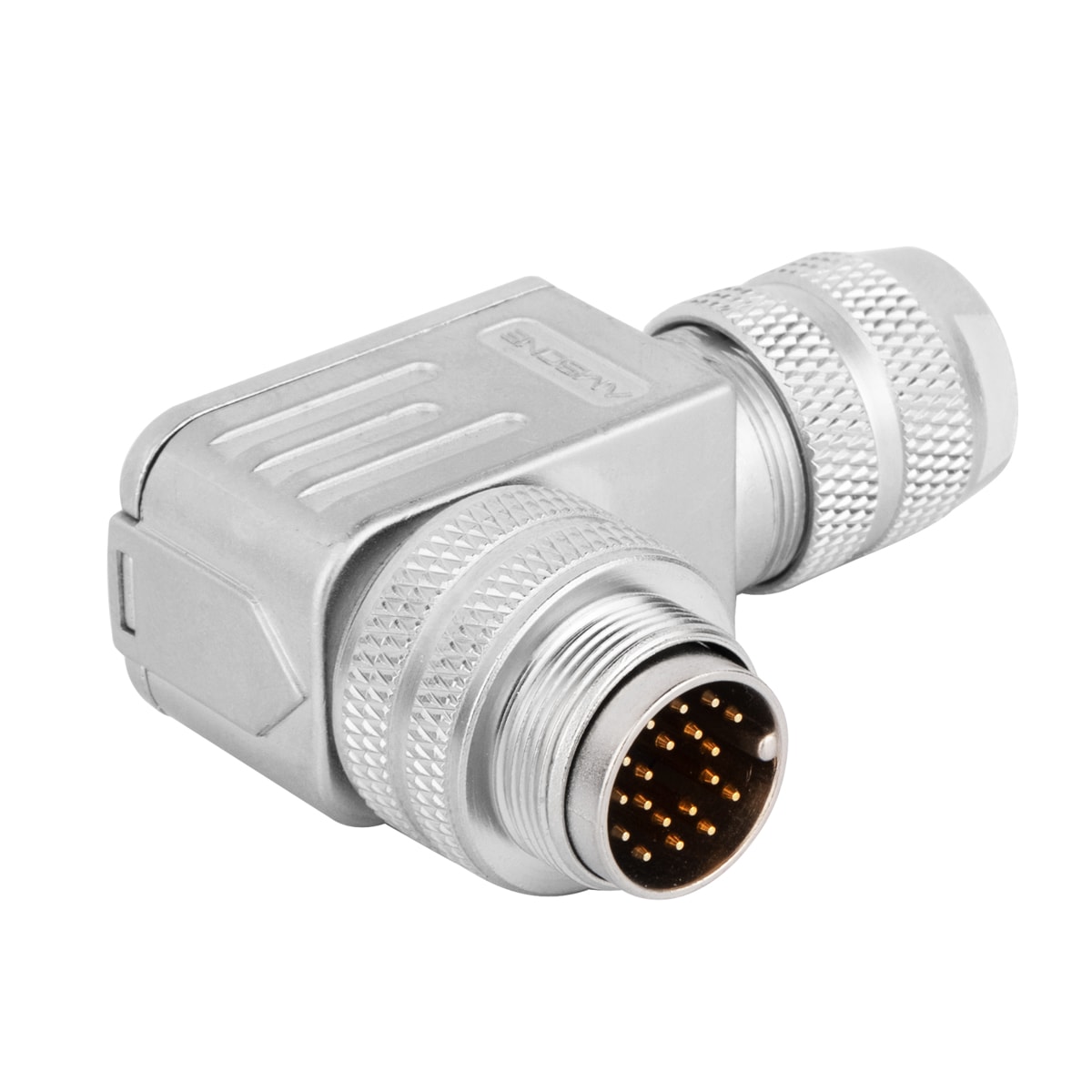

M16 cable connector, male, contacts:24, field assembly type, solder connection, right angled, IP67, UL certified
P/N: AM16M2414A002

M16 cable connector, male, contacts:24, field assembly type, solder connection, right angled, IP67, UL certified

  • Description
  • Technical Data

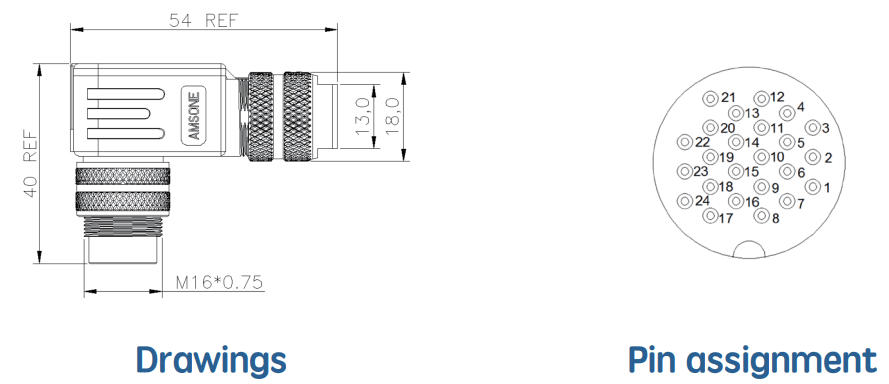

  • Dimension

Your Benefits
- Degree of protection IP67
- 360° EMC shielding solution
- AISG ccompatible
- UL certified under number E517859




StandardDIN EN61076-2-106
Locking systemFix screw locking
SeriesAM16
Ordering P/N:AM16M2414A002
GenderMale
CodingA
Torque0.6N.M
CategoryField assembly
Connection typeSolder connection
Wire gauge(max.)0.14mm²/26AWG
Cable outlet6~8MM
Custom tariff number85444290
Country of originChina

Approvals

Approval 1UL


Electrical

Rated current1A
Rated voltage60V
Rated Impulse voltage500V
Insulation resistance≥ 100 MΩ
EMC complianceShieldable
Degree of protectionIP67
Mechanical operation> 500  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability ratingAcc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Shell materialZinc alloy Nickel plating
