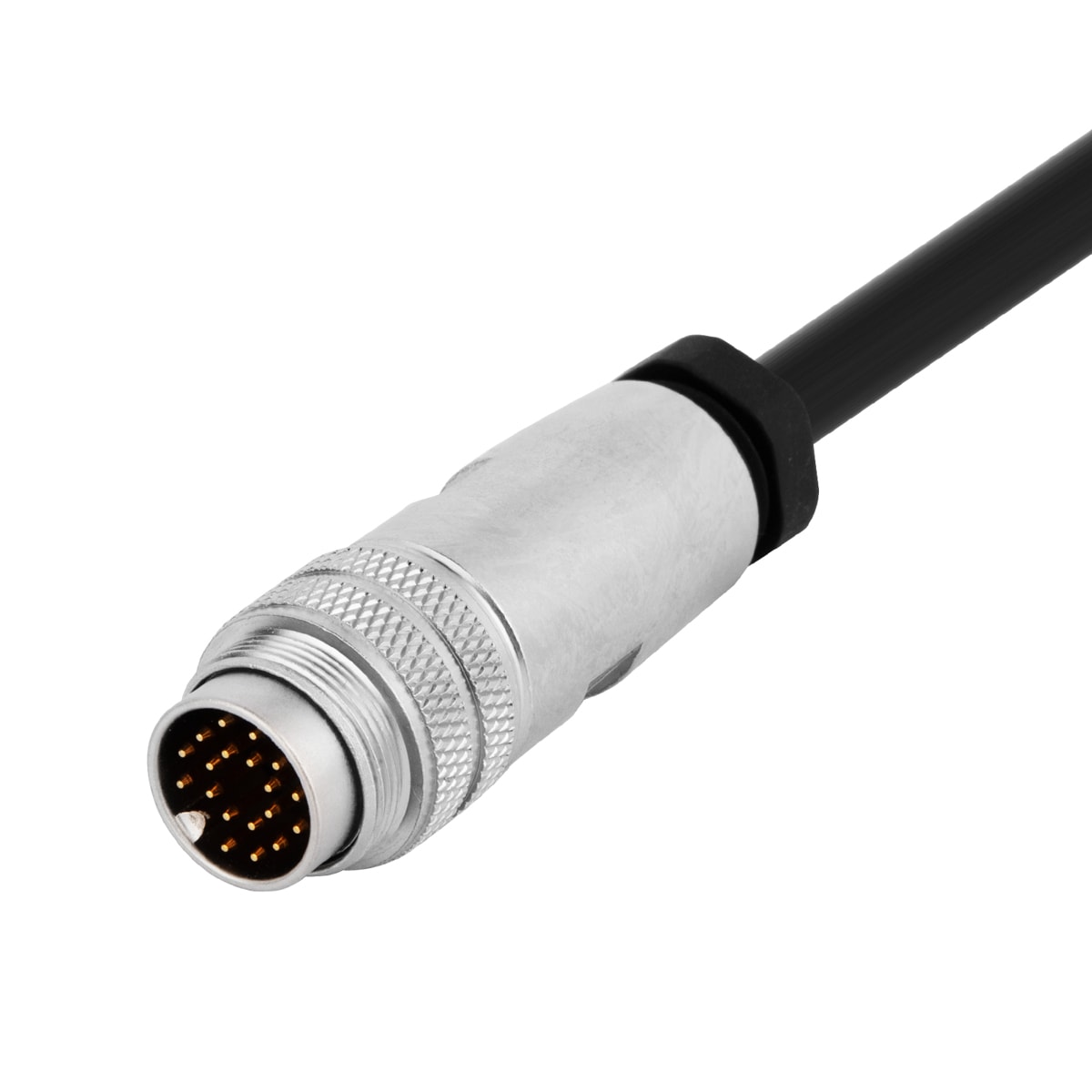

M16 cable connector, male, contacts:24,field assembly type, solder connection, straight, IP67, UL certified
P/N: AM16M2414A001

M16 cable connector, male, contacts:24,field assembly type, solder connection, straight, IP67, UL certified

ADD TO REQUEST
  • Description
  • Technical Data

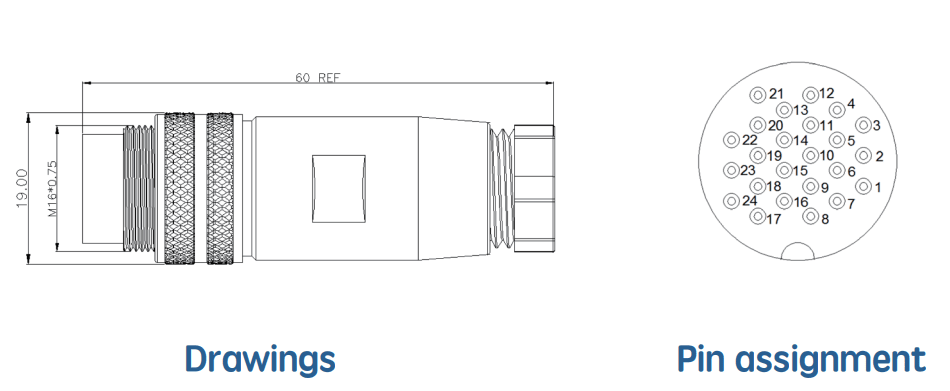

  • Dimension

Your Benefits

- Degree of protection IP67

- 360° EMC shielding solution

- AISG ccompatible

- UL certified under number E517859


StandardDIN EN61076-2-106
Locking systemFix screw locking
SeriesAM16
Ordering P/N:AM16M2414A001
GenderMale
Torque0.6N.M
CategoryField assembly
Connection typeSolder connection
CodingA
Wire gauge(max.)0.14mm² / 26AWG
Cable outlet6~8mm
Custom tariff number85444290
Country of originChina

Approvals

Approval 1UL


Electrical

Rated current1A
Rated voltage60V
Rated Impulse voltage500V
Insulation resistance≥ 100 MΩ
EMC complianceShielding
Protection degreeIP67
Mating cycle> 500  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability rating
Acc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA66
Nut materialBrass with Nickle plated
Sealing materialSilicone
shell materialBrass with Nickle plated
