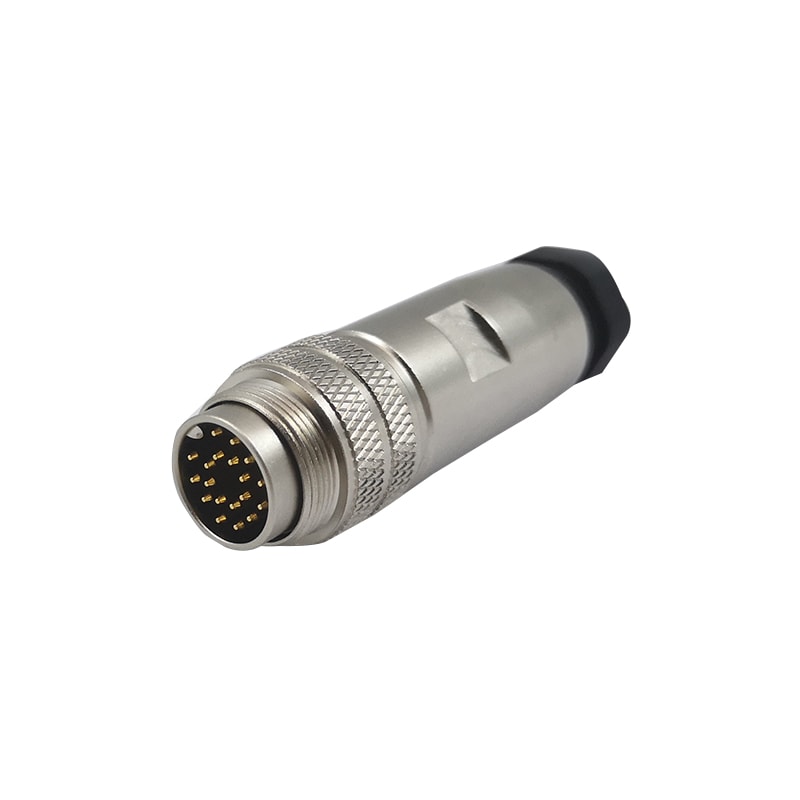

M16 male cable connector, contacts: 19, field assembly type , solder connection, A code, 8-10mm, straight ，AISG compatible
P/N: AM16M1914A003

M16 male cable connector, contacts: 19, field assembly type , solder connection, A code, 8-10mm, straight ，AISG compatible

ADD TO REQUEST
  • Description
  • Technical Data

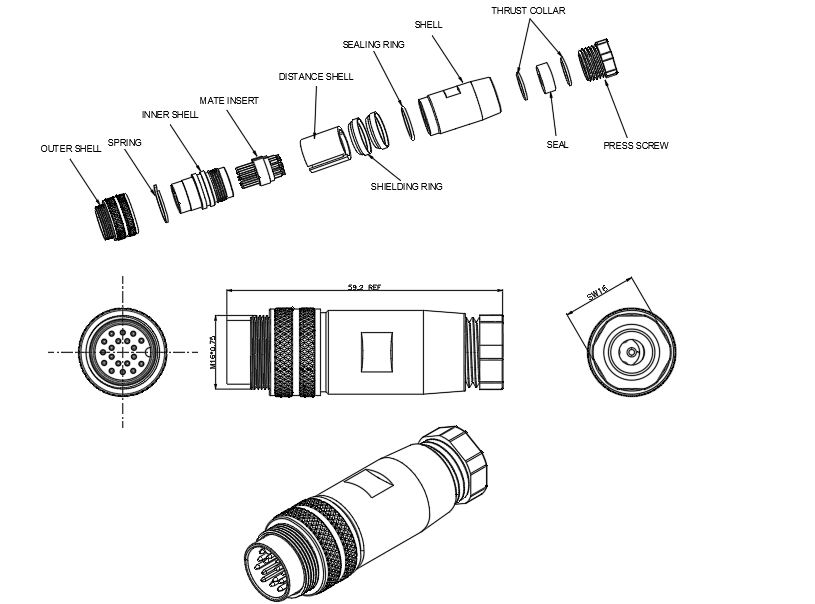

  • Dimension

Your Benefits

- Degree of protection IP67

- 360° EMC shielding solution

- AISG ccompatible

- UL certified under number E517859


StandardDIN EN61076-2-106
Locking systemFix screw locking
SeriesAM16
Ordering P/N:AM16M1914A003
GenderMale
No. of Contacts19
CategoryPre-molded cable
Connection typeSolder
CodingA
Locking nutM16X0.75
Custom tariff number85444290
Country of originChina

Approvals

Approval 1UL


Electrical data (connector)

Rated current3A
Rated voltage60V
Rated Impulse voltage500V
Insulation resistance≥ 100 MΩ
EMC compliance360° EMC shielding
Protection degreeIP67
Mating cycle> 500  mating cycles
Operation temperature-25 °C ... 85 °C

Material spec (connector)

Flammability rating according to UL 94V0
Contact materialBrass with Au plating
Insulation materialPA66+GF
Nut materialNickle-plated brass
Sealing materialSilicone
Overmold/shell materialNickle-plated brass / Zink Alloy
