M16 panel receptacle, rear mount, female, contacts:5, PCB dip-solder connection, straight, IP67, UL certified
P/N: AM16F0522A002

M16 panel receptacle, rear mount, female, contacts:5, PCB dip-solder connection, straight, IP67, UL certified

ADD TO REQUEST
  • Description
  • Technical Data

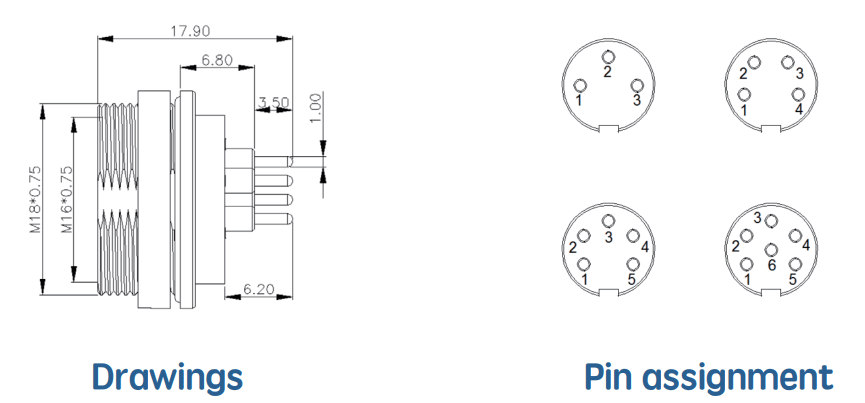

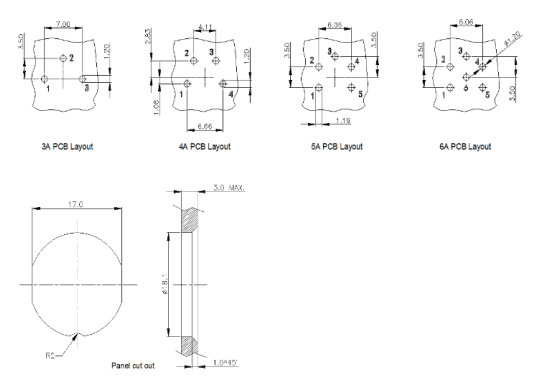

  • Dimension

Your Benefits

- Degree of protection IP67

- AISG ccompatible

- UL certified under number E517859


StandardDIN EN61076-2-106
Locking systemFix screw locking
SeriesAM16
Ordering P/N:AM16F0522A001
GenderFemale
CodingA
Torque3N.M
CategoryDevice connector, rear mount
Connection typePCB dip-solder
Custom tariff number85444290
Country of originChina

Approvals

Approval 1UL


Electrical a

Rated current5A
Rated voltage250V
Rated Impulse voltage1500V
Insulation resistance≥ 100 MΩ
EMC compliance/
Protection degreeIP67
Mechanical operation> 500  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability ratingAcc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA66
Jam nut materialBrass with Nickle plated
Sealing materialSilicone
shell materialNickle-plated brass
