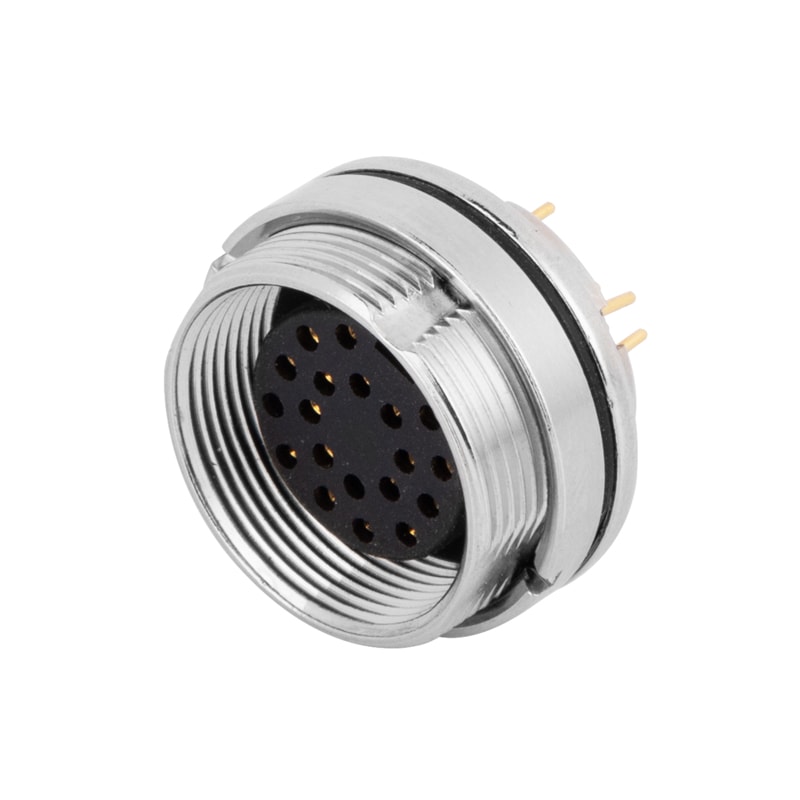

M16 panel receptacle,rear mount,female, contacts:24, PCB dip-solder connection, straight, IP67, UL certified
P/N: AM16F2422A001

M16 panel receptacle,rear mount,female, contacts:24, PCB dip-solder connection, straight, IP67, UL certified

ADD TO REQUEST
  • Description
  • Technical Data

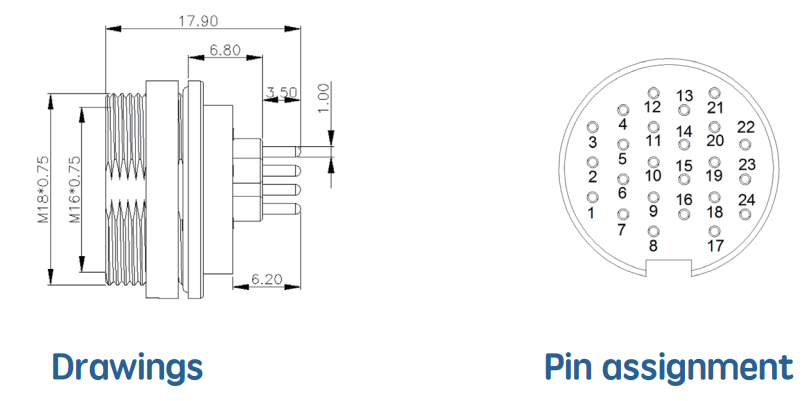

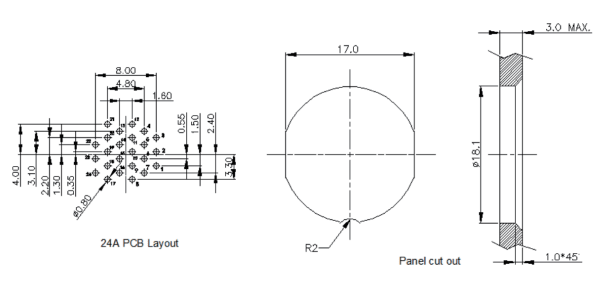

  • Dimension

Your Benefits

- Degree of protection IP67

- AISG ccompatible

- UL certified under number E517859


StandardDIN EN61076-2-106
Locking systemFix screw locking
SeriesAM16
Ordering P/N:AM16F2422A001
GenderFemale
No. of Contacts24
Torque3N.M
CategoryDevice connector, rear mount
Connection typePCB dip-solder connection
CodingA
Custom tariff number85444290
Country of originChina

Approvals

Approval 1UL


Electrical

Rated current1A
Rated voltage60V
Rated Impulse voltage500V
Insulation resistance≥ 100 MΩ
EMC compliance/
Protection degreeIP67
Mechanical operation> 500  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability rating
Acc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA66
Jam nut materialBrass with Nickle plateds
Sealing materialSilicone
Shell materialZinc alloy with Nickel
plated
