Your Benefits
-Easy PCB assembly for wave soldering

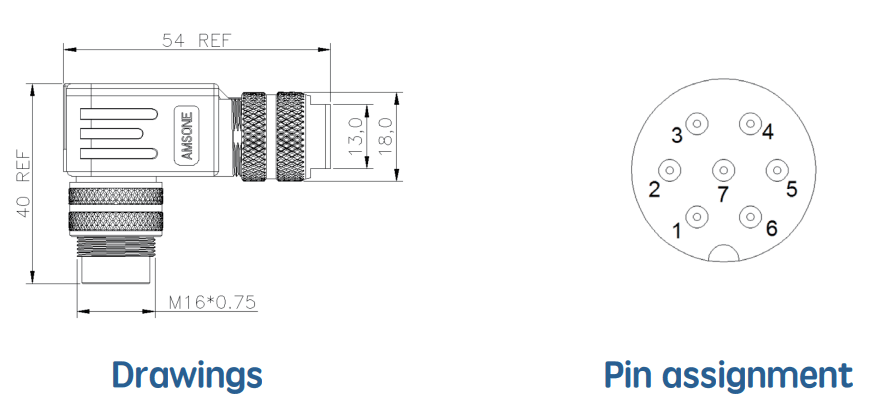

-Standard pin assignments and codings for signal transmission with a uniform design-in design
-For high transmission reliability: optional shield connection to the housing and latching on the PCB
| Standard | IEC61076-2-106 |
Locking system
| Fix screw locking
|
| Gender | Male |
| Series | AM16 |
| Ordering P/N | AM16M0714A002 |
| Coding | A |
| Torque | 0.6N.M |
| Category | Field assembly |
| Connection type | Solder connection |
| Wire gauge(max.) | 0.75mm² /18AWG
|
| Cable outlet | 6~8mm |
| Custom tariff number | 85444290 |
| Country of origin | China |
