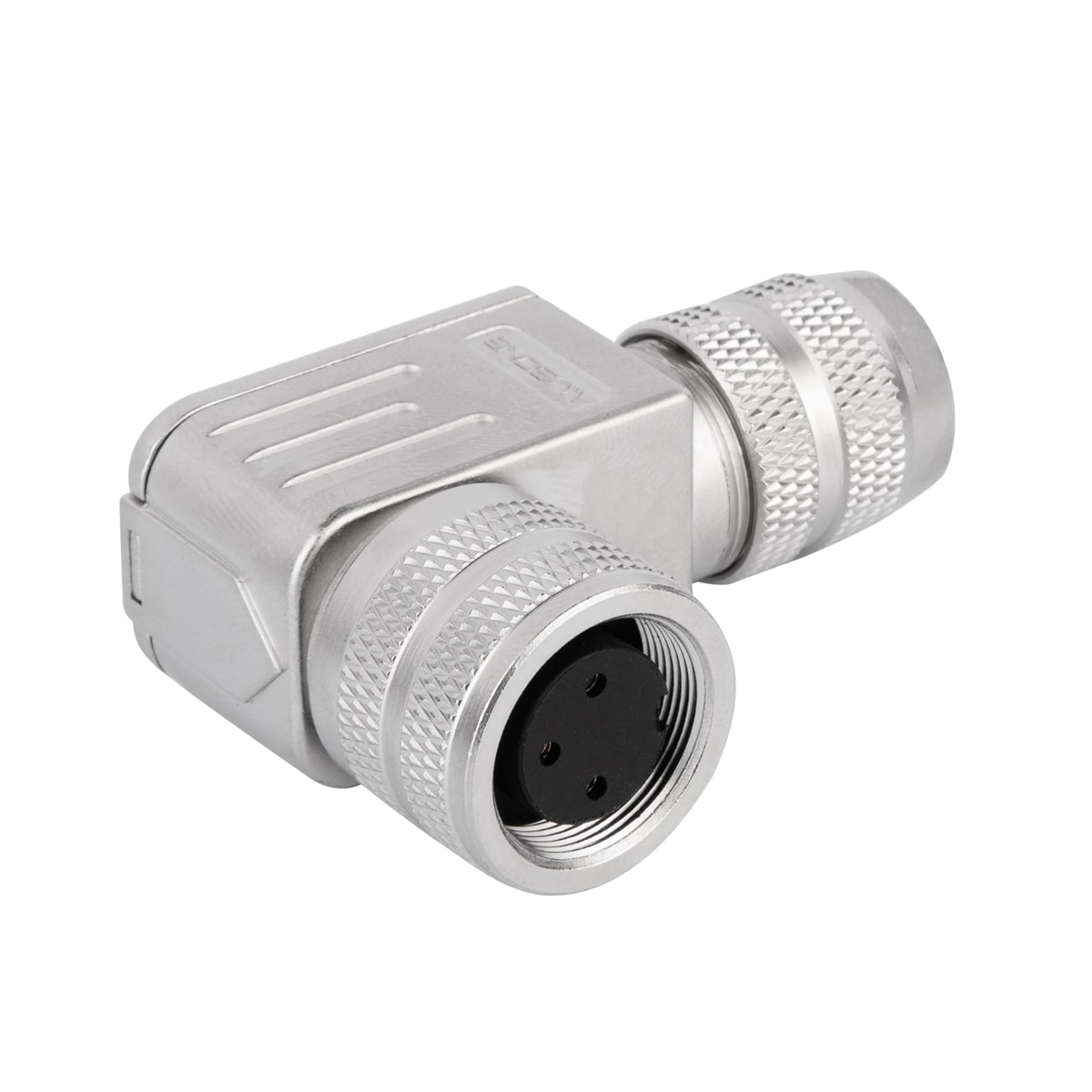

M16 cable connector, female, contacts:7, field assembly type, solder connection, right angled, IP67,UL certified
P/N: AM16F0714A002

M16 cable connector, female, contacts:7, field assembly type, solder connection, right angled, IP67,UL certified

  • Description
  • Technical Data

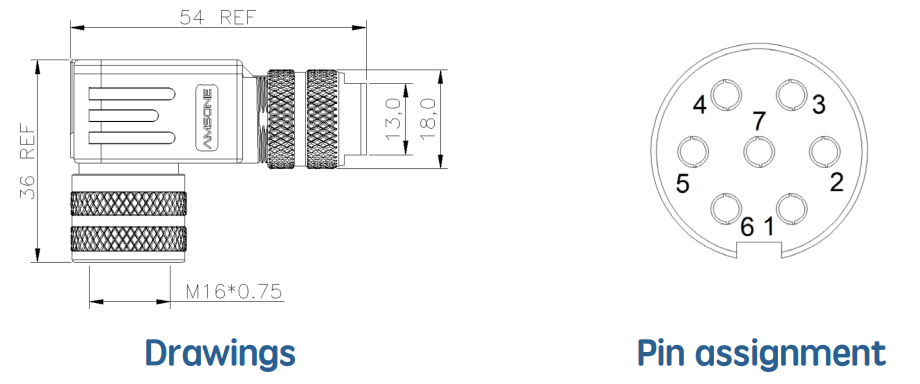

  • Dimension

Your Benefits
-Easy PCB assembly for wave soldering
-Standard pin assignments and codings for signal transmission with a uniform design-in design
-For high transmission reliability: optional shield connection to the housing and latching on the PCB

StandardIEC61076-2-106
Locking system
Fix screw locking
GenderFemale
SeriesAM16
Ordering P/NAM16F0714A002
CodingA
Torque0.6N.M
CategoryField assembly
Connection typeSolder connection
Wire gauge(max.)0.75mm² /18AWG
Cable outlet6~8mm
Custom tariff number85444290
Country of originChina

Electrical

Rated current5A
Rated voltage125V
Rated Impulse voltage800V
Insulation resistance≥ 100 MΩ
EMC complianceShieldable
Degree of protectionIP67
Mechanical operation> 500  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability ratingAcc. to UL 94 V0
Contact material
Brass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Shell materialZinc alloy with Nickle plated
