M12 Panel Mount Receptacle 4P Male PCB Connector T Code,M16
P/N: AM12M0422T002

M12 Panel Mount Receptacle 4P Male PCB Connector T Code,M16

  • Description
  • Technical Data

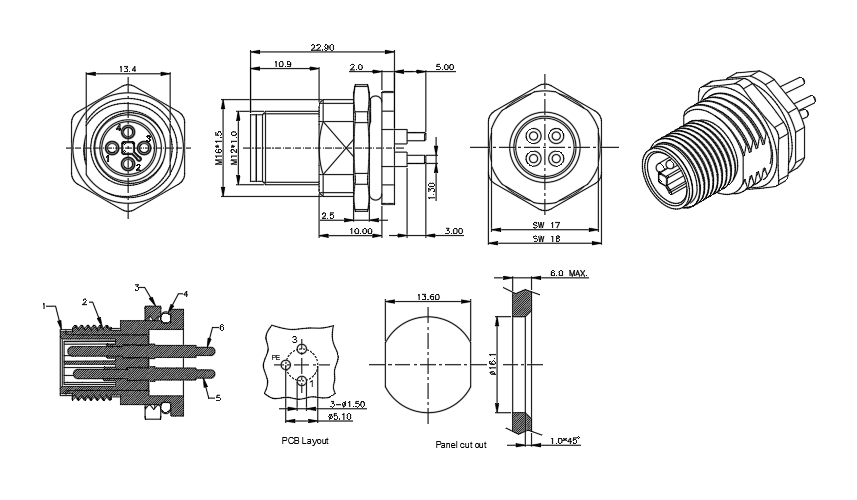

  • Dimension

Your Benefits

-100% electrically tested plug-in components

-For compact devices: can transmit very high power in limited space

-The gasket is protected by excessive tightening to achieve long-term reliable sealing

StandardIEC 61076-2-111
Locking systemFix screw locking
Ordering P/N:AM12M0422T002
No. of Contacts4P
CategoryPanel rear mount receptacle
Connection typePCB dip-solder
Locking nutM16*1.5mm
Torque0.8~1.3N.M(mount torque)
Custom tariff number85444290
Country of originChina

Electrical data

Rated current12A
Rated voltage63V AC
Rated Impulse voltage1500V
Mating cycle> 100
Insulation resistance≥ 100 MΩ
EMC complianceNon
Operation temperature-25 °C ... 85 °C
Protection degreeIP67


Flammability rating according to UL 94V0
Contact materialBrass with Au plating
Insulation materialPA66+GF
Body/Nut materialNickle-plated brass
Sealing materialSilicone
shell materialNickle-plated brass
