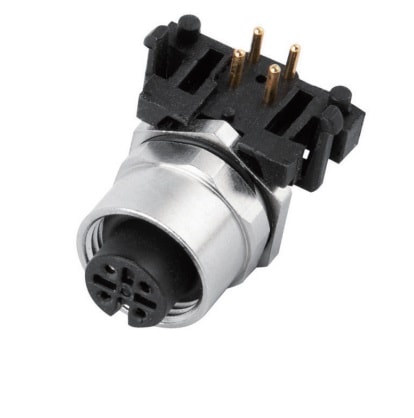

M12 panel receptacle, rear mount, female, contacts: 4, PCB dip-solder connection, A code, right angled, IP67
P/N: AM12F0422A005

M12 panel receptacle, rear mount, female, contacts: 4, PCB dip-solder connection, A code, right angled, IP67

ADD TO REQUEST
  • Description
  • Technical Data
  • Dimension

Your Benefits

- Degree of protection IP67

- AISG ccompatible

- UL certified under number E517859


StandardDIN EN61076-2-101
Locking systemFix screw locking
SeriesAM12
Ordering P/N:AM12F0422A005
GenderFemale
CodingA
Torque2.0N.M
CategoryDevice connector, rear mount
Connection typePCB dip-solder connection
Custom tariff number85444290
Country of originChina

Approvals

Approval 1UL


Electrical

Rated current4A
Rated voltage250V
Rated Impulse voltage2500V
Insulation resistance≥ 100 MΩ
EMC compliance/
Degree of protectionIP67
Mechanical operation> 100  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability ratingAcc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA66
Jam nut materialBrass with Nickle plated
Sealing materialSilicone
shell materialBrass with Nickle plated
