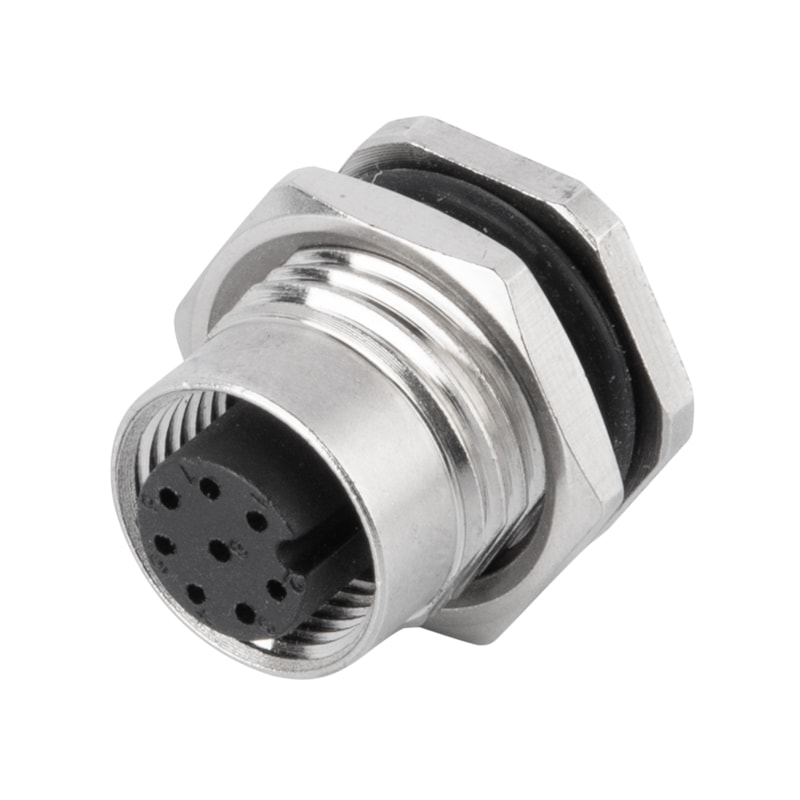

M12 panel receptacle, rear mount, female, contacts: 8, PCB dip-solder connection, A code, straight, IP67
P/N: AM12F0822A002

M12 panel receptacle, rear mount, female, contacts: 8, PCB dip-solder connection, A code, straight, IP67

ADD TO REQUEST
  • Description
  • Technical Data
  • Dimension

Your Benefits

-100% electrically tested plug-in components

-For compact devices: can transmit very high power in limited space

-The gasket is protected by excessive tightening to achieve long-term reliable sealing

StandardIEC 61076-2-101
Locking systemFix screw locking
SeriesAM12
Ordering P/N:AM12F0822A002
GenderFemale
No. of Contacts8
Torque2N.M
CategoryDevice connector, rear mount
Connection typePCB dip-solder connection
CodingA
Custom tariff number85444290
Country of originChina


Electrical

Rated current2A
Rated voltage30V
Rated Impulse voltage800V
Mechanical operation> 100 mating cycles
Insulation resistance≥ 100 MΩ
EMC compliance/
Operation temperature-25 °C ~ 85 °C
Protection degreeIP67

Material

Flammability rating
Acc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA66
Jam nut materialBrass with Nickle plateds
Sealing materialSilicone
shell materialBrass with Nickle plated
