M12  connector, contact: 6  female, panel rear mount receptacle, A code, straight, PCB dip-solder connection, M16*1.5mm, 2A/30V
P/N: AM12F0622A002

M12 connector, contact: 6 female, panel rear mount receptacle, A code, straight, PCB dip-solder connection, M16*1.5mm, 2A/30V

  • Description
  • Technical Data

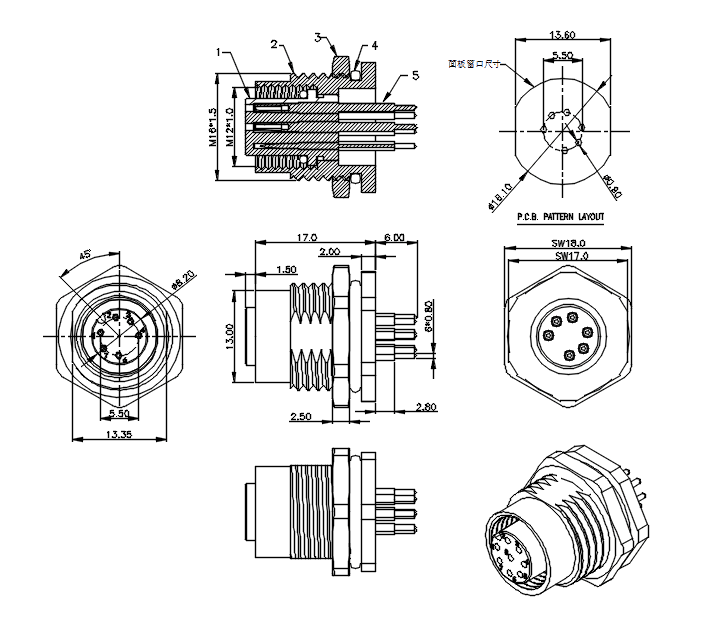

  • Dimension

Your Benefits

-100% electrically tested plug-in components

-For compact devices: can transmit very high power in limited space

-The gasket is protected by excessive tightening to achieve long-term reliable sealing

StandardIEC 61076-2-101
Locking systemFix screw locking
SeriesAM12
Ordering P/N:AM12F0622A002
Genderfemale
No. of Contacts6
Categorypanel rear mount receptacle
Connection typePCB dip-solder
CodingA
Locking nutM16*0.75mm
Torque0.8~1.3Nm(mount torque)
Custom tariff number85444290
Country of originChina


Electrical data

Rated current2A
Rated voltage30V
Rated Impulse voltage1500V
Mating cycle> 100
Insulation resistance≥ 100 MΩ
EMC complianceNon
Operation temperature-25 °C ... 85 °C
Protection degreeIP67

Material

Flammability rating according to UL 94V0
Contact materialBrass with Au plating
Insulation materialPA66+GF
Body/Nut materialNickle-plated brass
Sealing materialSilicone
shell materialNickle-plated brass
