M12 Anti Vibrate Connector,Industrial Automation Robot Sensor Cable
P/N: PM12M0511AXXX-XXX

M12 Anti Vibrate Connector,Industrial Automation Robot Sensor Cable

M12 Plastic Connector Cable

ADD TO REQUEST
  • Description
  • Technical Data

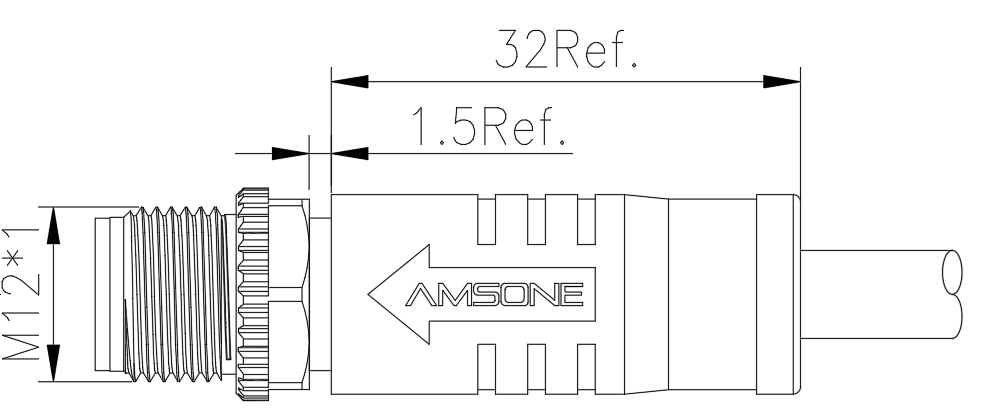

  • Dimension

Your Benefits
1、Pre-molded with cables or soldered with single wires for immediate use.
2、Panel mount receptacles: rear mount.
3、Degree of protection IP67.

StandardIEC61076-2-101
Locking system
Fix screw locking
GenderMale
SeriesPM12
Ordering P/NPM12M0511AXXX-XXX
CodingA
Torque0.4N.M
CategoryPre-Molded cable
Connection typeSolder connection
Cable outerVariable
Custom tariff number85444290
Country of originChina

Electrical

Rated current4A
Rated voltage60V
Rated Impulse voltage500V
Insulation resistance≥ 100 MΩ
EMC compliance/
Degree of protectionIP67
Mechanical operation> 100  mating cycles
Operation temperature-40°C~85°C

Cable

Cable typeUL Style
Conductor cross section0.14~0.34mm²
Gauge (AWG)26~22AWG
Jacket

PVC/TPU

Temperature-40°C~85°C
Other resistanceUV resistant (720 h) UL 2556

Premium oil resistance
Wire colourvariable
Lengthvariable

Material

Flammability ratingAcc. to UL94V-0
Contact material
Brass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Molding materialPVC/TPU
