What is an HDMI Cable? A Comprehensive Guide to Structure, Types, and Applications

Introduction: Why Are HDMI Cables So Important?

Whether it is a home TV, conference system, or industrial vision equipment, high-quality video and audio transmission is indispensable to a key connecting medium - HDMI cable.HDMI (High Definition Multimedia Interface) has become the standard form of interface for high-definition video and audio transmission since its inception. Since its inception, HDMI (High Definition Multimedia Interface) has become the standard interface for high-definition video and audio transmission, and is widely used in various consumer electronics and industrial equipment.

However, do you know that the transmission performance and application scenarios of HDMI cables with different materials, structures and shielding methods may vary greatly? Especially in the frequent electromagnetic interference in the industrial environment, shielding performance, wire diameter thickness, core material will directly affect the stability of the signal and picture quality.

This article will be from the structural principle to the actual application, to bring you a comprehensive understanding of the technical composition of HDMI cables and classification standards, to provide you with a reference for selection.

Basic Concept of HDMI Cables

HDMI is a digital interface used to transmit uncompressed video and audio signals. Compared to traditional analog interfaces, HDMI offers several advantages:

• High bandwidth: Supports resolutions from 1080P to 8K.

• All-in-one functionality: Transmits audio, video, and control signals through a single cable, reducing wiring complexity.

• Stable digital signals: Less susceptible to signal degradation, ensuring consistent image and sound quality.

An HDMI cable is the vital physical pathway that connects HDMI devices (such as TVs, monitors, graphics cards, projectors, etc.) to each other. It accurately transmits high-definition video, audio, and other control information from one device to another via multiple pairs of differential signal and control wires.

Main Components of an HDMI Cable

A quality HDMI cable is far more than just a bundle of wires. It features a sophisticated internal design with several key components:

1. Conductor Materials

• OFC (Oxygen-Free Copper): Excellent conductivity and low resistance, ideal for high-quality HDMI cables.

• Tinned Copper: Offers good oxidation resistance, suitable for long-term use or humid environments.

• CCS (Copper-Clad Steel)/CCA (Copper-Clad Aluminum): Lower cost but inferior conductivity, common in budget cables—not recommended for high-performance applications.

2. Shielding Structure

To protect signals from external electromagnetic interference (EMI), HDMI cables are usually designed with multiple layers of shielding, including:

• Aluminum foil shielding: effective against high-frequency interference;

• Metal braided mesh shielding: enhances the strength of anti-interference;

• Integral wrapping or individual shielding for each pair of wires: enhances the overall shielding capability, especially suitable for industrial environments.

3. Jacket Materials

Common outer jacket materials include PVC, TPE, and nylon braid, offering flexibility, abrasion resistance, and flame retardancy.

4. Connector Design

• Connectors are often made with metal shells or gold-plated contacts for better conductivity and corrosion resistance.

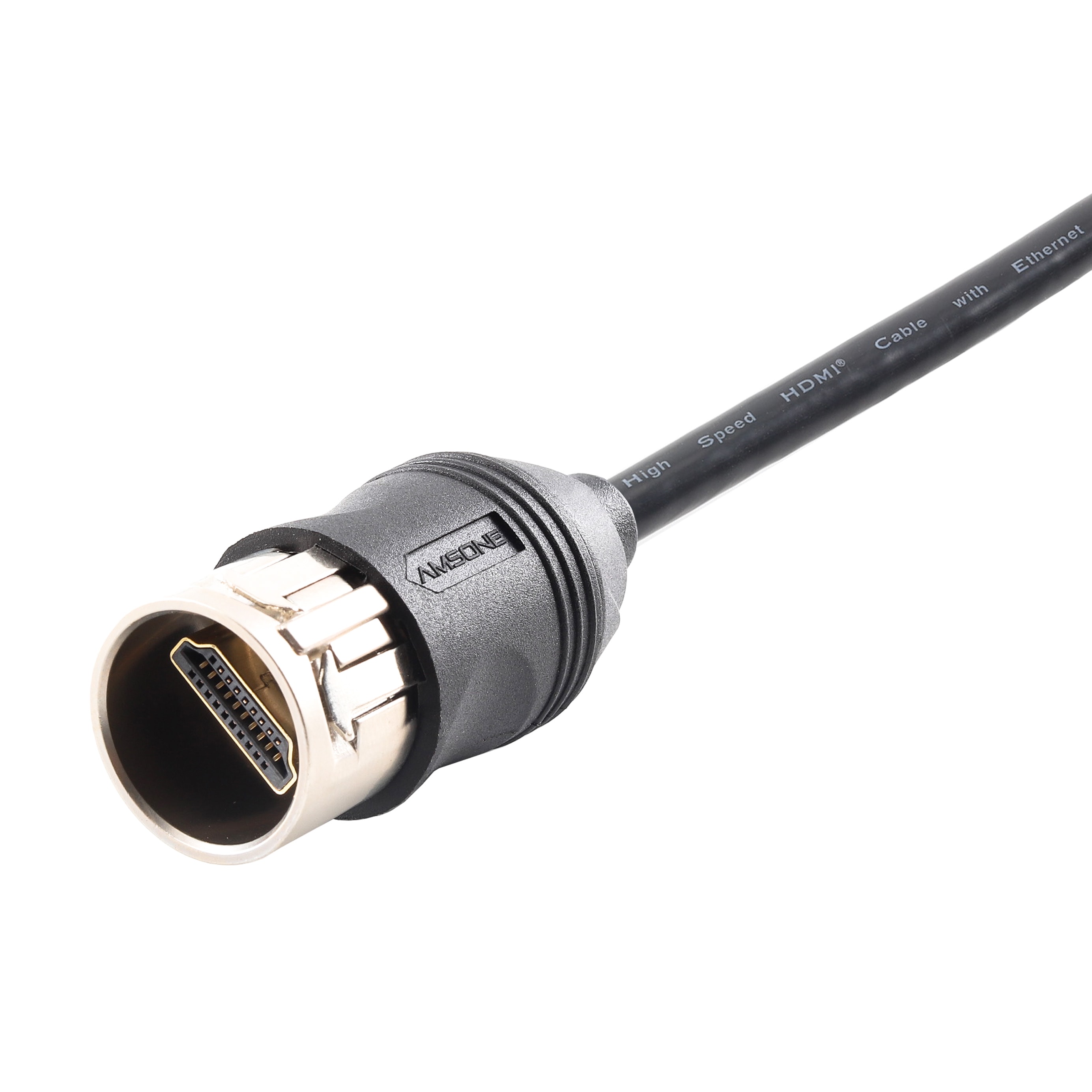

• Industrial HDMI cables may feature locking mechanisms or waterproof housings for added durability.

Classification of HDMI Cables

When selecting or applying HDMI cables, understanding their classification is crucial. HDMI cables can be categorized in the following ways:

1. By HDMI Version

• HDMI 1.4: Supports 1080P and 4K@30Hz, suitable for home theaters and HD surveillance.

• HDMI 2.0: Supports 4K@60Hz with bandwidth up to 18Gbps.

• HDMI 2.1: Supports 8K@60Hz and even 10K, with bandwidth up to 48Gbps—ideal for high-end gaming and industrial vision systems.

2. By Application

• Consumer-grade cables: For TVs, set-top boxes, laptops, etc.

• High-speed gaming/media cables: Designed for high-frame-rate gaming, Blu-ray players, and VR devices.

• Industrial HDMI cables: Enhanced shielding, heat and oil resistance, and anti-vibration features for industrial cameras and control systems.

3. By Cable Gauge

HDMI cable thickness is usually indicated by AWG (American Wire Gauge):

• AWG24: Thicker conductors, lower resistance, suitable for long distances (over 10 meters) or EMI-prone environments.

• AWG26–30: Suitable for short-distance consumer applications.

The smaller the AWG number, the thicker the wire and the better the performance.

Applications Across Industries

HDMI cables are not only present in daily home appliance connection, but also play a key role in several professional fields:

1. Home Entertainment System

Connecting TV, Blu-ray player and sound system to realize the synchronous output of HD video and surround sound.

2. Business Conference and Teaching Presentation

HDMI connection between laptop and projector/conference screen to ensure clear and stable images.

3. gaming and video production

4K/8K high resolution, high frame rate signal transmission on the cable bandwidth requirements are extremely high, need to use high-speed HDMI 2.0 or 2.1 version of the cable.

4. Industrial vision and automation system

connects industrial cameras, capture cards and display modules to transmit high-definition video signals. This type of scenario has high electromagnetic interference and requires higher shielding, bending resistance and connection reliability of cables.

Key Features of Industrial HDMI Cables

Compared to ordinary consumer-grade products, industrial HDMI cables pay more attention to stability and anti-interference ability in the design and materials used. Key technical advantages include:

• High-density multi-layer shielding structure: effectively block strong interference signals generated by motors, power supplies and other equipment;

• High and low temperature resistant outer cover material: adaptable to -40°C~+80°C industrial environment;

• Reinforced connector design: anti-vibration and anti-pull-off, adapted to industrial control boxes and robot systems;

• Highly flexible/drag chain bend-resistant cable structure: suitable for mobile visual inspection equipment;

• Customized service: industrial applications often require customized interface types, lengths, colors, silkscreen printing or special packaging materials.

HDMI Cable Selection Guide

Choosing the right HDMI cable involves evaluating multiple factors:

HDMI cable common problems and troubleshooting recommendations

In practical applications, even if you have chosen the HD version of the HDMI cable, the signal may still be abnormal due to the environment, electrical interference or improper use. The following are some common problems and their troubleshooting recommendations to help users quickly locate the problem and take effective countermeasures.

1. No signal / black screen

Possible causes:

• Cable length exceeds transmission capacity, resulting in signal attenuation;

• Poor contact of connectors or oxidization of ports;

 The output device is not turned on or the port is not set correctly.

Troubleshooting Suggestion:

• Try replacing with a thicker gauge (e.g. AWG24) or active HDMI cable;

• Clean the connector and ensure that the plug is firmly inserted;

• Check that the display output settings of the output device are correct.

2. Image flickering, snow dots or abnormal colors

Possible causes:

• Electromagnetic interference affects transmission quality, common in industrial sites;

• Use of low quality or insufficiently shielded HDMI cables;

• Loose connectors or internal solder joints false soldering.

 Troubleshooting suggestions:

• Replace with high-performance cables with multi-layer shielding, metal braid + aluminum foil composite structure;

• Avoid wiring the cable in parallel with high-power power cables;

 Check and fix the connectors to avoid loosening or shaking.

3. Picture but no sound

Possible causes:

•  Audio format incompatibility (e.g. the player outputs DTS-HD and the display device does not support it);

• The internal audio channel of the HDMI cable is damaged;

• The audio output of the playback device is not set correctly.

Troubleshooting suggestions:

•  Enter the audio output settings in the player or computer, and select “HDMI Audio Output”;

• Replace the HDMI cable with a high quality one that supports audio and video transmission;

• Test the use of other audio devices to rule out interface or device problems. 4.

4. resolution can not reach the nominal level

Possible cause:

• A lower version of HDMI cable is used (e.g. 1.4 cable for 4K@60Hz transmission);

• Although the device port is HDMI 2.0/2.1, the cable does not match;

• Inadequate bandwidth due to the use of poor quality cables.

Troubleshooting Suggestion:

• Confirm whether the cable used is labeled to support HDMI 2.0 or 2.1 and its resolution specification;

• Replace with a certified high-speed or ultra-high-speed HDMI cable;

• Refer to the cable manual or consult the manufacturer to confirm the bandwidth capability.

Conclusion: HDMI Cables—More Than Just “Wires,” They Ensure System Reliability

From home theaters to high-end industrial automation, HDMI cables not only ensure video and audio quality but also serve as a critical component in device communication. Especially in environments with strong electromagnetic interference or long-distance signal transmission, superior shielding and structural design are key to ensuring system stability.
