Understanding Cat 6 Cable: Key Features and Applications

In today’s digital age, reliable and fast internet connections are essential for both personal and professional environments. Enter Category 6 (Cat 6) cables, the backbone of modern Ethernet networks. As a sixth-generation twisted pair cable, Cat 6 delivers enhanced performance compared to its predecessors, making it a staple in high-speed data transfer. This article explores everything you need to know about Cat 6 cables, their features, applications, and how they stack up against other cable categories.

What is Cat 6 Cable?

Cat 6 cable is designed to support high-speed Ethernet networks, boasting a bandwidth of up to 250 MHz. This improvement over earlier standards, like Cat 5e (which offers up to 100 MHz), allows for faster data transmission rates—up to 1 Gigabit per second (Gbps) over distances of 100 meters. Notably, for 10 Gigabit Ethernet, the maximum effective length is 55 meters. This makes Cat 6 a preferred choice for applications that demand high bandwidth, such as streaming media, online gaming, and large file transfers.

Understanding the Construction of Cat 6 Cables

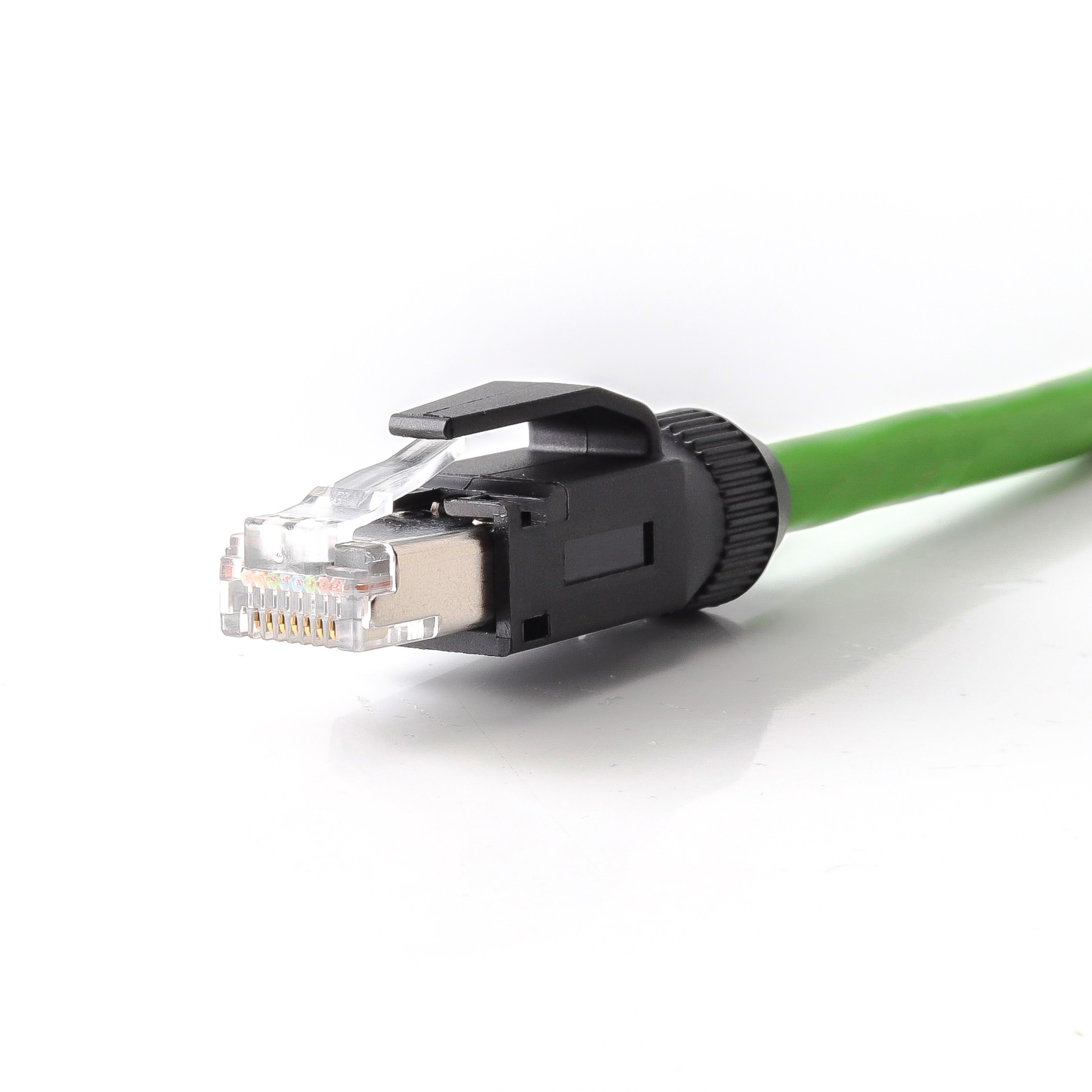

Cat 6 cables consist of four twisted pairs of copper wires, and these pairs are utilized for data transfer, ensuring minimal interference and crosstalk. The quality of the components in the channel, including patch cables and jacks, must meet specific standards for optimal performance. As with all Ethernet cables, Cat 6 employs the RJ-45 connector, ensuring compatibility across various devices, from computers to routers.

Types of Cat 6 Cables

1. Shielded vs. Unshielded:

• Unshielded Twisted Pair (UTP): This common type offers flexibility and is suitable for most indoor applications where electromagnetic interference (EMI) is minimal.

• Shielded Twisted Pair (STP): Designed for environments with high interference, such as data centers, these cables have an additional layer of shielding to protect against EMI.

2. Solid vs. Stranded:

• Solid Cables: Composed of a single copper wire per conductor, these cables are more durable and ideal for permanent installations.

• Stranded Cables: Made of multiple wires twisted together, these are flexible and perfect for shorter, moveable connections, such as from a wall outlet to a desktop.

3. Cable Jacket Ratings:

• CM (Communications Multipurpose): Suitable for residential and light commercial use.

• CMR (Riser-rated): Designed to prevent fire from spreading between floors.

• CMP (Plenum-rated): Ideal for spaces with air circulation, these cables have materials that limit flame spread and smoke.

Comparing Cat 6 with Cat 5e and Cat 6A

While Cat 5e has been a popular choice for cost-effective installations, it lacks the bandwidth capabilities of Cat 6. For those needing to support more demanding applications, Cat 6A offers even greater performance, supporting up to 10 Gbps over 100 meters due to its superior construction and design. The choice between these cables depends on specific network needs, budget constraints, and future scalability.

Where to Use Cat 6 Cables

Cat 6 cables excel in various scenarios, from home networks requiring reliable connections for multiple devices to enterprise settings where high-bandwidth applications are prevalent. Whether used for multimedia streaming, video conferencing, or data-heavy applications, Cat 6 provides the performance necessary to meet today’s demands.

Conclusion

In summary, Cat 6 cables represent a critical advancement in networking technology, ensuring high-speed data transfer with reduced interference. As a versatile solution for a range of applications, they offer significant improvements over earlier standards. For organizations looking to future-proof their network infrastructure, investing in Cat 6 or even Cat 6A cables is a wise choice.
