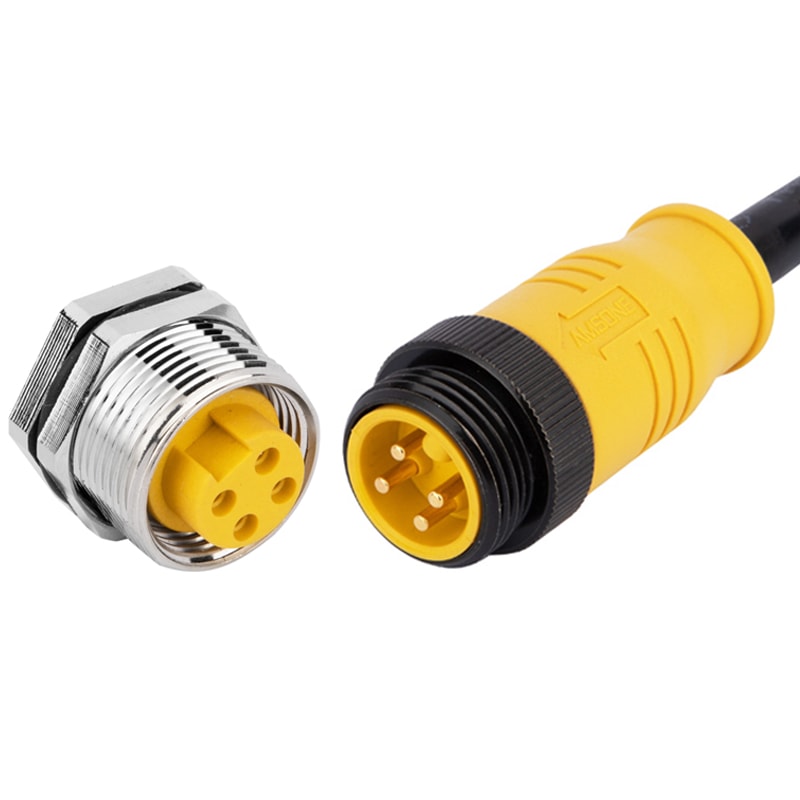

7/8" Connectors: A Rugged Solution for Power in Automation Technology

In modern industrial automation, reliability and durability are essential—especially when it comes to powering sensors, actuators, and field devices. One connector technology that continues to prove its value in these demanding environments is the 7/8" circular connector. Known for its robust build and industry-wide compatibility, this connector type remains a trusted interface for power supply applications.

A Proven Power Supply Interface

7/8" connectors are widely used to provide power to devices in factory, process, and warehouse automation. You’ll often find them in packaging equipment, food processing systems, and conveyor installations. Their solid construction and high current capacity make them ideal for supplying power to motors, lighting systems, heating elements, and sensor-actuator boxes. These boxes, also known as active distribution units, simplify wiring in decentralized installations, and rely heavily on durable, field-ready connectors.

Built for Harsh Environments

For industrial use, environmental protection is crucial. 7/8" connectors typically meet IP67 or even IP68 protection ratings, ensuring excellent resistance to dust, moisture, and other environmental factors. This makes them well-suited for both indoor and outdoor applications, even in areas exposed to washdowns, chemicals, or vibration. The connectors are also available with UL approval, allowing their use in North American markets where certified safety standards are required.

Unified Design Ensures Compatibility

One key advantage of 7/8" connectors is their standardized mating interface. Defined by the NFPA/T3.5.29 R1-2007 quasi-standard, this specification ensures that connectors from different manufacturers can mate with each other. This compatibility provides flexibility in sourcing and reduces the risk of supply chain disruptions—something increasingly important in today’s global markets.

Flexible Connection Options

Another reason for the popularity of 7/8" connectors is the variety of configurations available. They come in 3-, 4-, and 5-pin versions and support screw clamp terminations or pre-assembled, overmoulded cable assemblies. Users can choose between straight or angled designs, stainless-steel variants for corrosive environments, and options with gold-plated contacts for reliable signal integrity. Field-wireable versions allow for on-site customization with cables ranging from 6 to 12 mm in diameter and up to 2.5 mm² wire gauge.

Ideal for Device Integration

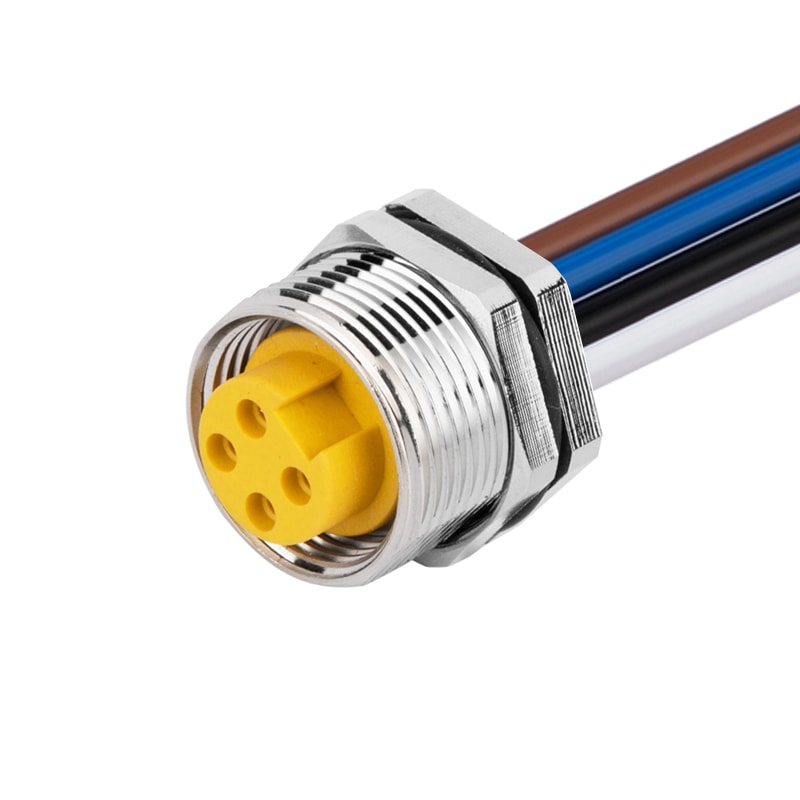

For OEMs looking to integrate connectors into equipment housings, panel-mount flange connectors are also available. These come with various thread options and terminations, including dip solder contacts for PCB mounting. This enables seamless installation into control boxes, machinery panels, or distributed field modules.

Support for DeviceNet Applications

Beyond standard power supply roles, 7/8" connectors also support specialized communication protocols like DeviceNet. Binder’s range includes T-distributors and dedicated DeviceNet connectors that simplify wiring and allow multiple devices to be powered from a single connection point, improving efficiency and reducing installation time.

Conclusion

In the fast-moving world of industrial automation, having a power connector that delivers both performance and reliability is non-negotiable. The 7/8" connector stands out as a time-tested, standardized, and rugged solution that supports flexible installation and consistent power delivery, even in challenging conditions.

Looking for the right 7/8" connector for your application? Amission tech offers a wide selection of circular connectors and custom solutions tailored to your needs. Contact us to learn more.
