The Application and Advantages of M8 Connectors in Industrial Diagnostic Sensors

With the continuous improvement of industrial automation levels, equipment condition monitoring is shifting from passive maintenance to predictive maintenance. Among them, industrial stethoscope sensors can detect potential faults by collecting vibration and sound signals during equipment operation. Therefore, a stable and reliable connection solution has become a key link to ensure the accurate transmission of monitoring data. Against this backdrop, the M8 connector, with its miniaturized design and high reliability, has become an important component in the industrial stethoscope sensor system.

Working Principle and Connection Requirements of Industrial Stethoscope Sensors

The first thing to understand is that industrial diagnostic sensors mainly identify common mechanical problems such as bearing wear, gear defects, loosening and imbalance by capturing the tiny vibrations and acoustic changes generated during the operation of the equipment. Since these signals are usually very weak, high requirements are placed on the stability of the connection and the anti-interference ability. At the same time, industrial sites often have limited space, intense vibrations, as well as oil stains and humidity, which impose strict requirements on the size, sealing performance and vibration resistance of the connectors.

Miniaturization and Reliability Advantages of the M8 Connector

In terms of meeting these requirements, the M8 connector demonstrates significant advantages. Firstly, its compact size is suitable for installation in locations with limited space, such as motor housings or pipe surfaces. Secondly, the threaded locking structure can effectively resist vibrations and impacts, ensuring a stable connection during continuous equipment operation. Moreover, industrial-grade M8 connectors typically have excellent waterproof, oil-resistant, and dustproof properties, enabling them to adapt to harsh environments and thus guarantee the long-term stable operation of sensors.

Typical Applications in the Monitoring of Critical Equipment

In practical applications, the M8 connector is widely used in various equipment monitoring scenarios. For instance, in the monitoring of electric motors, centrifugal pumps, and compressors, the connector needs to provide a reliable connection within limited spaces; in transmission systems such as reducers and gearboxes, small sensors often require distributed installation, and the M8 interface facilitates multi-point deployment. At the same time, in energy equipment such as wind turbines, steam turbines, and generators, the connector must be able to withstand dusty and humid environments. For conveyor belts, robot joints, and CNC machines on automated production lines, the plug-and-play M8 connection design also helps with quick replacement and maintenance. Moreover, in pipeline systems, valves, and heat exchangers monitoring, its compact structure makes it easy to install on the outer surface and maintain a good seal.

Power Supply and Signal Transmission Functions

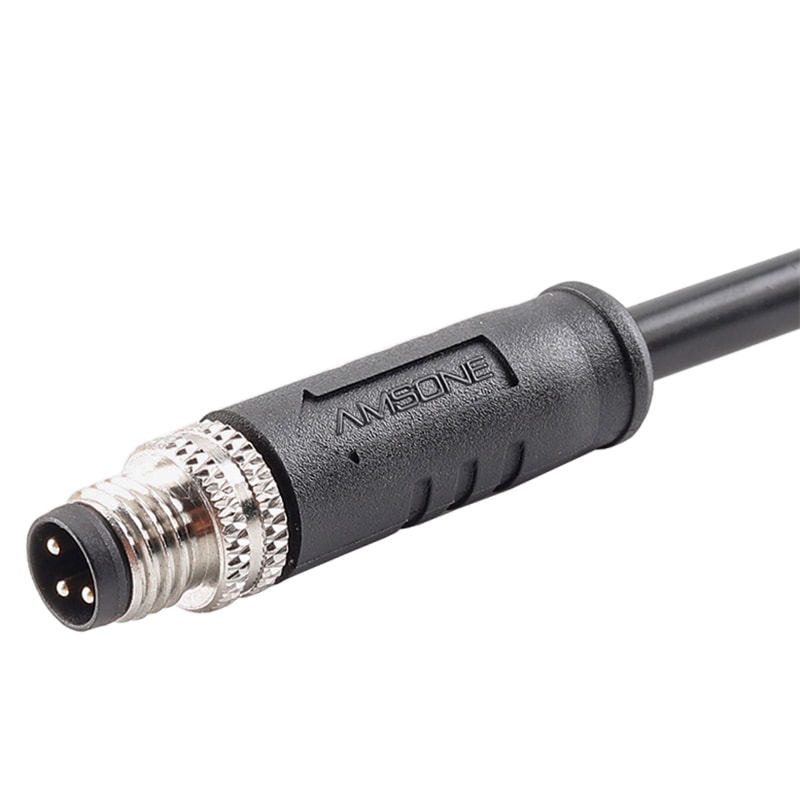

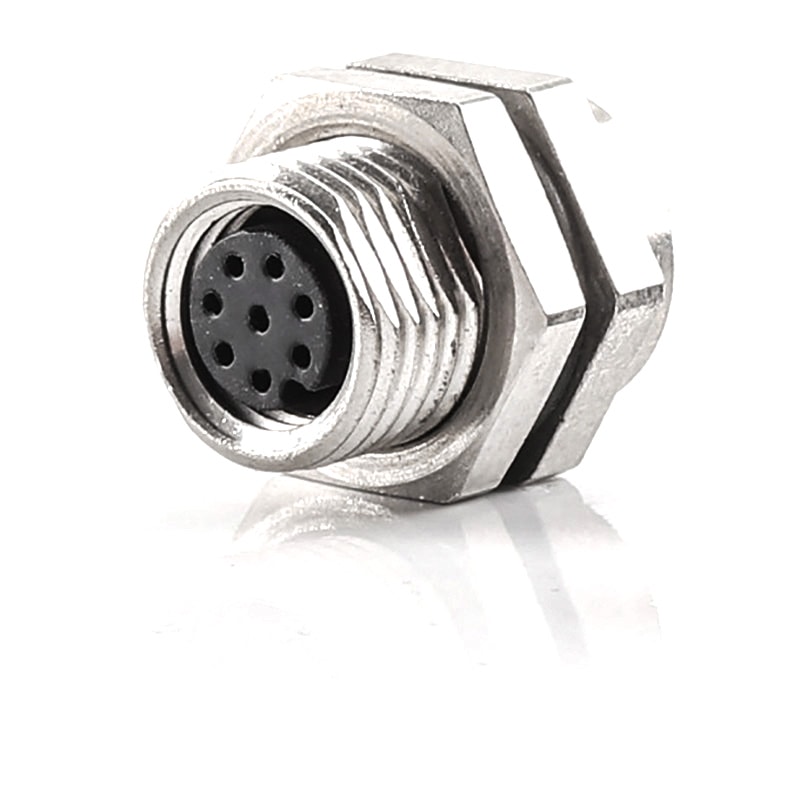

In addition to the mechanical connection function, the M8 connector also undertakes the tasks of powering sensors and outputting signals. The common 3-core configuration is suitable for analog signal or switch signal transmission, providing three-wire connections for power, ground, and signal. For more complex applications, the 4-core configuration can support differential signals or digital communication, such as parameter configuration and diagnostic functions in the IO-Link system. In scenarios requiring high-speed data transmission, the 8-core configuration can meet the needs of multi-channel acoustic sensor arrays or industrial communication protocols.

Installation and System Integration Method

In terms of installation, the M8 connector is usually fixed by threads. Some sensors can be directly inserted into the reserved holes in the device to achieve a secure mechanical connection. At the same time, through adapters such as M8 to M12, it can also be compatible with devices of different interface standards, enhancing the flexibility of the system. This modular connection method not only simplifies the installation process but also facilitates later maintenance and upgrades.

The Key Factors for Choosing the Appropriate M8 Connector

To ensure the stable operation of the industrial listening system, choosing the appropriate M8 connector is of vital importance. Generally speaking, the number of pins should be determined based on the type of sensor signal, the appropriate protection level should be selected according to the usage environment, and the installation space and maintenance methods should also be considered. Moreover, the prefabricated cable connection solution can reduce on-site wiring errors, improve installation efficiency and reliability.

Conclusion: The Small-scale Connection Solution Supports the Intelligent Monitoring System.

In conclusion, the M8 connector, with its small size, high reliability and excellent environmental adaptability, provides a stable connection guarantee for industrial diagnostic sensors. It not only ensures the accurate transmission of vibration and acoustic data, but also supports the long-term stable operation of the predictive maintenance system for equipment. With the development of the Industrial Internet of Things, such compact connection solutions will play an even more important role in intelligent manufacturing.
