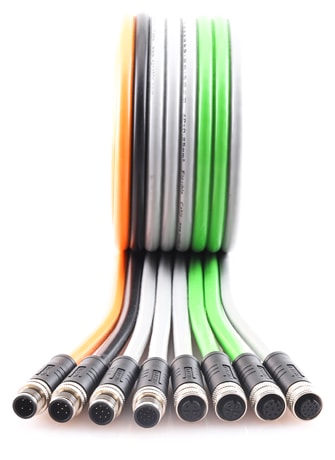

How to Install Drag Chain Cables for Long-Term Performance and Reliability

In today’s automated production environments, drag chain cables play a key role in ensuring stable and continuous operation. These cables are specially designed for dynamic applications where constant movement is required. Unlike standard cables, a flexible cable for drag chain systems must withstand repeated bending, friction, and mechanical stress over long periods.
Because of their complex structure and high manufacturing standards, drag chain cables offer strong performance in demanding conditions. They are widely used in industrial automation systems, robotics, CNC machines, cranes, and servo motor applications. With proper installation, they can deliver long service life and reliable signal and power transmission.

Key Features That Support High Performance

One reason drag chain cables are widely adopted is their combination of durability and flexibility. These cables are built to handle continuous motion without failure. Their main advantages include high flexibility, excellent bending resistance, and strong abrasion resistance. In addition, they provide good oil resistance and anti-aging properties, making them suitable for harsh industrial environments. Their ability to resist torsion and tension also ensures stable operation in moving systems. For signal transmission, anti-interference performance is critical, especially in automated equipment where precision matters.
However, even the best high flex cable can fail early if it is not installed correctly. That is why proper installation is just as important as cable quality.

Why Drag Chains Are Used for Cable Protection

Drag chains are designed to guide and protect cables during movement. By placing cables inside a cable chain system, users can prevent tangling, excessive wear, and accidental damage. During operation, the drag chain ensures that cables move in a controlled and repeatable way. This reduces mechanical stress and helps maintain consistent performance. At the same time, it keeps cables organized, which improves overall system safety and efficiency.
Even with this protection, incorrect installation can still lead to serious issues. Paying attention to installation details is essential for achieving the full benefits of a drag chain cable system.

Avoiding Common Installation Problems

In many cases, cable failure is not caused by the product itself but by improper handling during installation. For example, forcing cables into sharp bends or twisting them during setup can damage the internal structure. This kind of damage may not be visible immediately, but it can lead to early failure during operation.
Another common issue is overcrowding cables inside the drag chain. When cables are packed too tightly, they cannot move freely. This increases friction and wear, which shortens the service life of the cable.
Improper fixation is also a frequent problem. If cables are not secured correctly, they may shift during movement, leading to uneven stress and possible breakage.

Best Practices for Drag Chain Cable Installation

Proper installation begins with careful handling. Cables should be laid naturally without forced bending or twisting. Maintaining the correct drag chain cable bending radius is critical. If the bending radius is too small, the cable may deform over time, affecting its performance.
Inside the drag chain, cables should be arranged loosely with enough space between them. This allows each cable to move independently, reducing friction and preventing entanglement. A well-organized industrial cable routing setup can significantly improve durability.
Fixation is another key factor. Cables should be secured at both ends or at least at the moving end. The distance between the moving point and the end of the drag chain should generally be 20 to 30 times the cable diameter. This helps maintain proper alignment during operation.
Once installed, cables should not be moved randomly. Any unnecessary adjustment can change their position and lead to uneven wear. During operation, it is important to ensure that cables can move freely within the allowed bending radius. After a period of use, checking the cable position is recommended. Regular inspection helps detect issues early and maintain system stability.

Environmental Factors That Affect Cable Life

The working environment also has a direct impact on cable performance. High temperatures and humid conditions can accelerate material aging. In such environments, the cable sheath may oxidize, reducing its protective ability and shortening service life. Whenever possible, drag chain cables should be used in suitable conditions or selected with materials that match the environment. This is especially important in industries where heat, moisture, or oil exposure is common.

Improving Efficiency Through Proper Installation

Correct installation of drag chain cables does more than prevent failure. It also improves the overall efficiency of the system. When cables move smoothly and remain properly aligned, equipment can operate without interruption. This reduces maintenance frequency and lowers downtime costs. In addition, stable cable performance ensures accurate signal transmission, which is essential for automated systems and robotic applications. Over time, these benefits translate into higher productivity and better return on investment.
