TYPE C Cable I/O Waterproof Connector Thread Panel Mount AMSONE
P/N: AIOUM2411AXX1-XXX

TYPE C Cable I/O Waterproof Connector Thread Panel Mount AMSONE

ADD TO REQUEST
  • Description
  • Technical Data

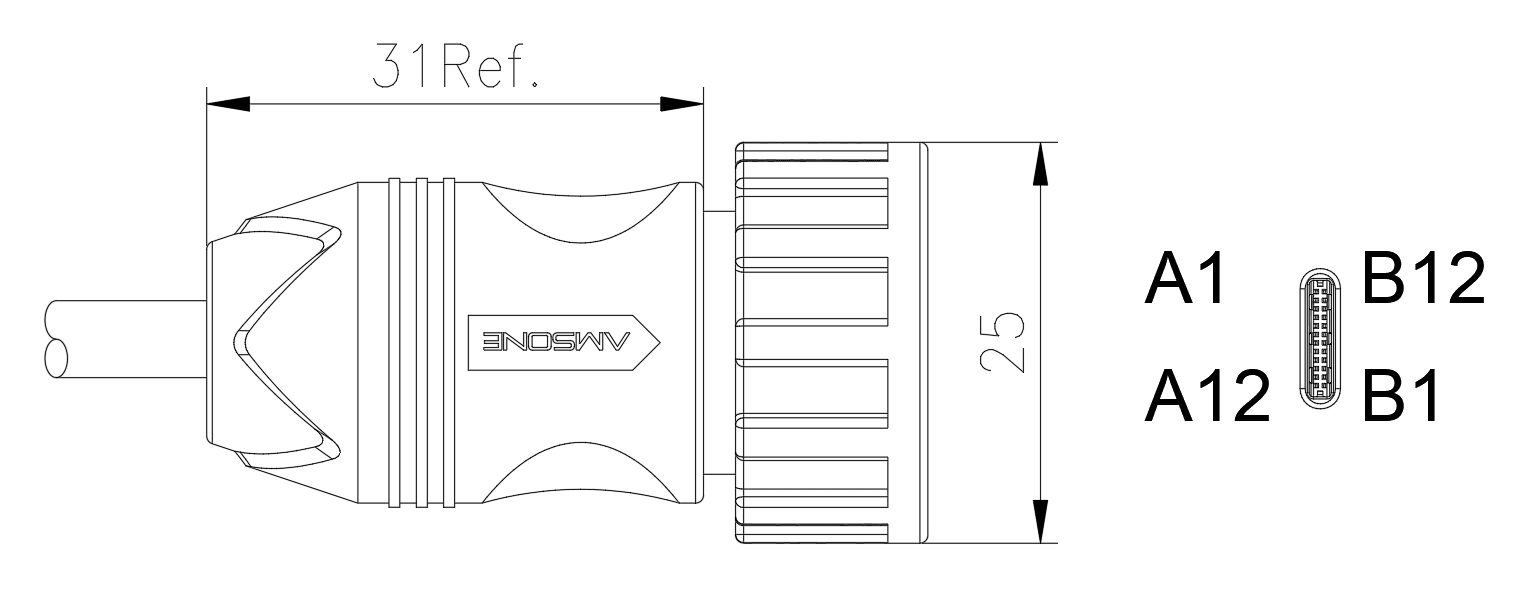

  • Dimension

Your Benefits

-100% electrically tested plug-in components

-DC connectors for up to 3A and 20V/DC

-Shielded

StandardIEC 62680-3-1
Locking systemFix screw locking
SeriesAIO
Ordering P/N:AIOUM2411AXX1-XXX
GenderMale
Coding/
Torque/
CategoryPre-molded cable
Connection typeSolder connection
Cable outlet4.5mm
Custom tariff number85444290
Country of originChina


Electrical

Rated current3A
Rated voltage5V
Rated Impulse voltage20V
Mechanical operation> 100 mating cycles
Insulation resistance≥ 100 MΩ
EMC complianceShieldable
Operation temperature-25 °C ~ 85 °C
Degree of protectionIP65

Cable

Cable typeUL Style
Conductor cross section0.35mm²
Gauge (AWG)22AWG
JacketPVC/TPE
Temperature-20 °C ~ 80 °C
Other resistanceUV resistant (720 h) UL 2556

Premium oil resistance (jacket)
Wire colourVariable
LengthVariable

Material

Flammability rating
Acc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA
Ring nut materialPA
Sealing materialEPDM
Shell materialPA
