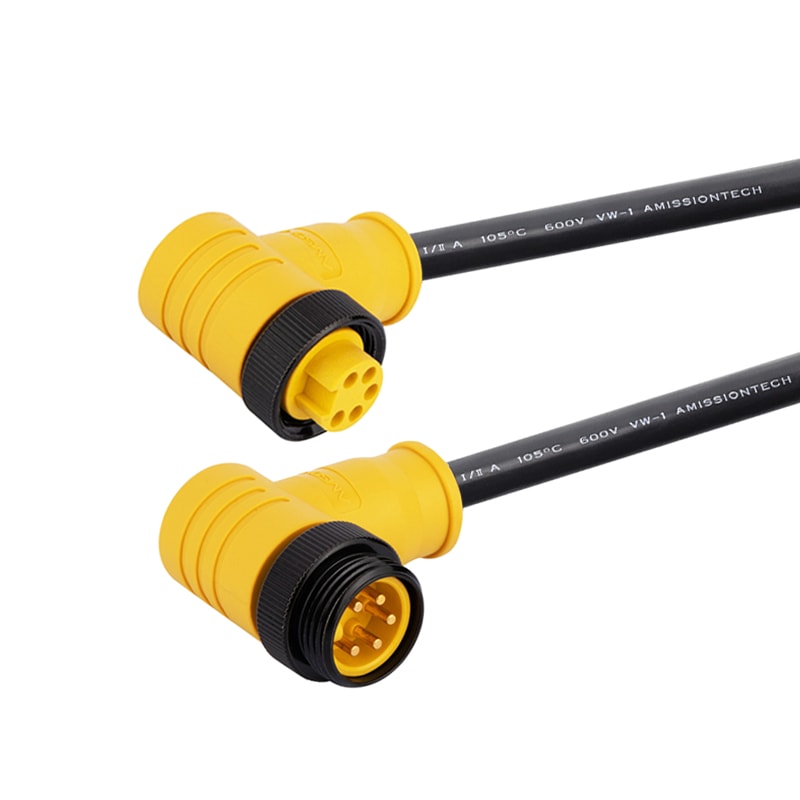

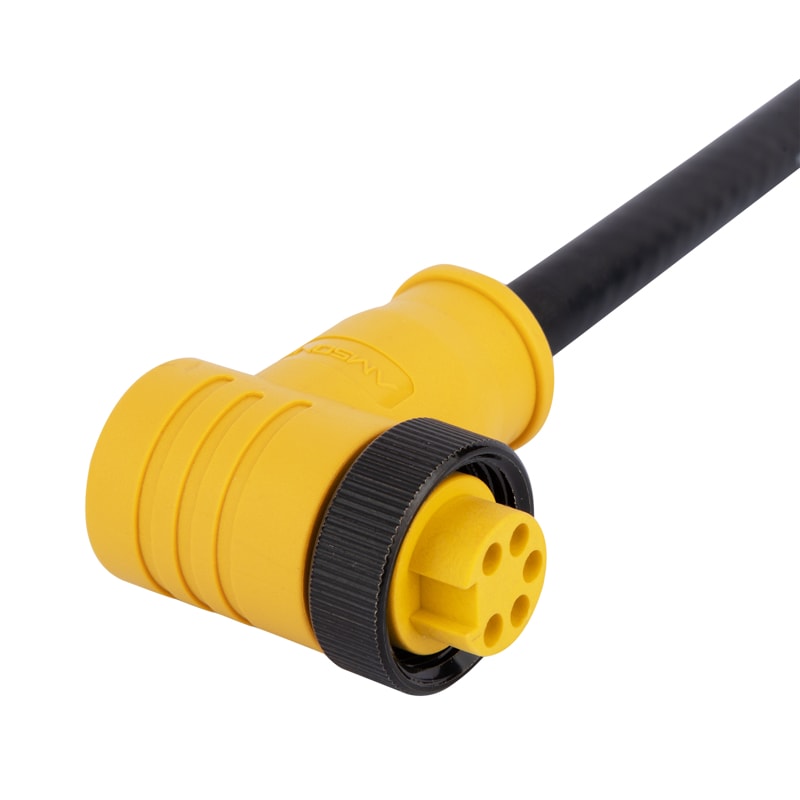

P/N: AM78H0511A172-050

Power Control Cable 5Pin Angled Male/Female Pre-molded 7/8

UL Compliant Cable Length 5000mm or variable

ADD TO REQUEST

Description
Technical Data

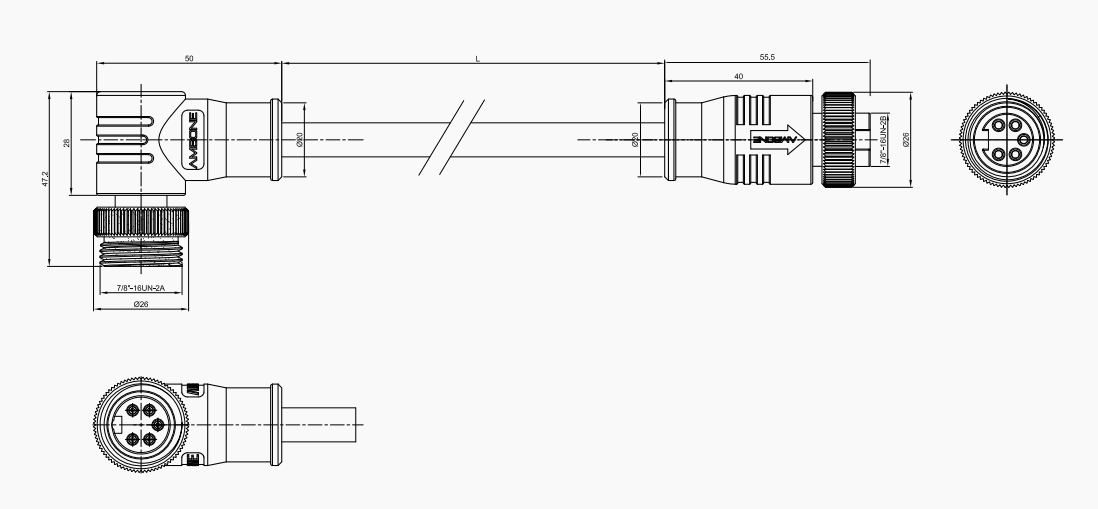

Dimension

Your Benefits

- Easy and safe: 100% electrically tested plug-in components

- High-performance: connectors and cables with a large conductor cross section for power supply

Standard	7/8-inch connector UL 2238
Locking system	Fix screw locking
Series	AM78
Ordering P/N:	AM78H0511A172-050
Gender	Male to Female
No. of Contacts	5
Category	Pre-molded cable
Connection type	Solder
Coding	A
Locking nut	7/8"-16UNF
Torque	10 lbf-in. / 1.12 Nm
Custom tariff number	85444290
Country of origin	China

Approvals

Approval 1

Electrical data (connector)

Rated current	12A
Rated voltage	300V
Rated Impulse voltage	4000V
Insulation resistance	≥ 100 MΩ
EMC compliance	Non
Protection degree	IP67
Mating cycle	> 100 mating cycles
Operation temperature	-25 °C ... 85 °C

Material spec (connector)

Flammability rating according to UL 94	V0
Contact material	Brass with Au plating
Insulation material	TPU yellow
Nut material	Anodized aluminum
Sealing material	/
Overmold/shell material	PVC yellow

Cable spec

Cable type	UL Style
Insolaton material	PVC black
Conductor cross section	1.5mm2
Gauge (AWG)	16
Temperature	-40 °C ... 105 °C (fixed installation)
	-30 °C ... 105 °C (flexible installation)
Other resistance	UV resistant (720 h) UL 2556
Wire colour	Black 1, blue 2, grey 3, brown 4, white 5
Length	variable
