P/N: AM08M0511B131-010

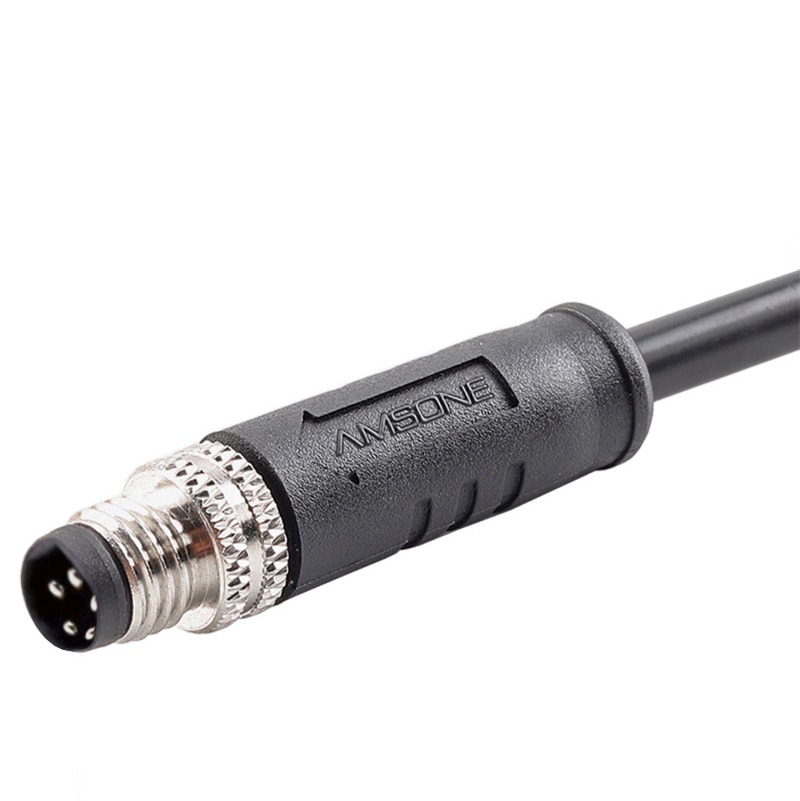

M8 B Code Overmold Straight Cable M8 5P Male IP67 Connector

M8 pre-molded cable connector, male, contacts: 5, solder connection, B code, right angled, IP67

ADD TO REQUEST

Description
Technical Data

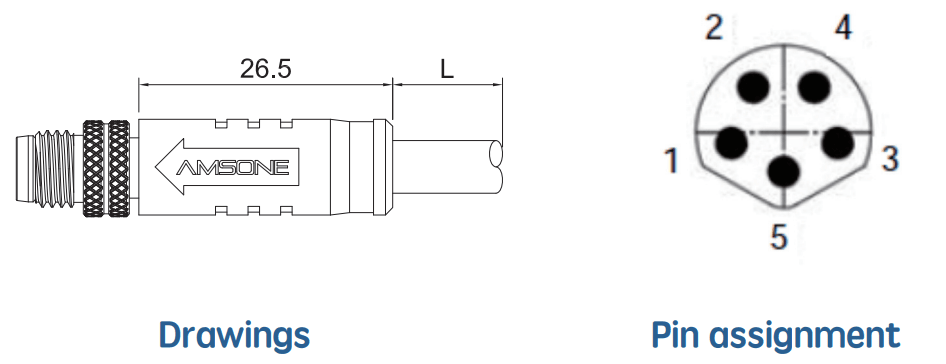

Dimension

Your Benefits
-Easy PCB assembly for wave soldering
-Standard pin assignments and codings for signal transmission with a uniform design-in design
-For high transmission reliability: optional shield connection to the housing and latching on the PCB

Standard	IEC61076-2-104
Locking system	Fix screw locking
Gender	Male
Series	AM08
Ordering P/N	AM08M0511B131-010
Coding	B
Torque	0.2N.M
Category	Pre-molded cable
Connection type	Solder connection
Cable outlet	Variable
Custom tariff number	85444290
Country of origin	China

Electrical

Rated current	3A
Rated voltage	30V
Rated Impulse voltage	500V
Insulation resistance	≥ 100 MΩ
EMC compliance	Optinal
Degree of protection	IP67
Mechanical operation	> 100 mating cycles
Operation temperature	-25 °C ~ 85 °C

Cable

Cable type	UL Style
Conductor cross section	0.23mm²
Gauge (AWG)	24AWG
Jacket	PVC/TPU
Temperature	-25 °C ~ 85 °C
Other resistance	UV resistant (720 h) UL 2556
	Premium oil resistance (jacket)
Wire colour	variable
Length	variable

Material

Flammability rating	Acc. to UL 94 V0
Contact material	Brass with Gold plated
Insulation material	PA66
Ring nut material	Brass with Nickle plated
Sealing material	Silicone
Molding material	PVC/TPU
