M16 panel receptacle, rear mount, male, contacts:7, PCB dip-solder connection, straight, IP67, UL certifieded
P/N: AM16M0722A001

M16 panel receptacle, rear mount, male, contacts:7, PCB dip-solder connection, straight, IP67, UL certifieded

  • Description
  • Technical Data

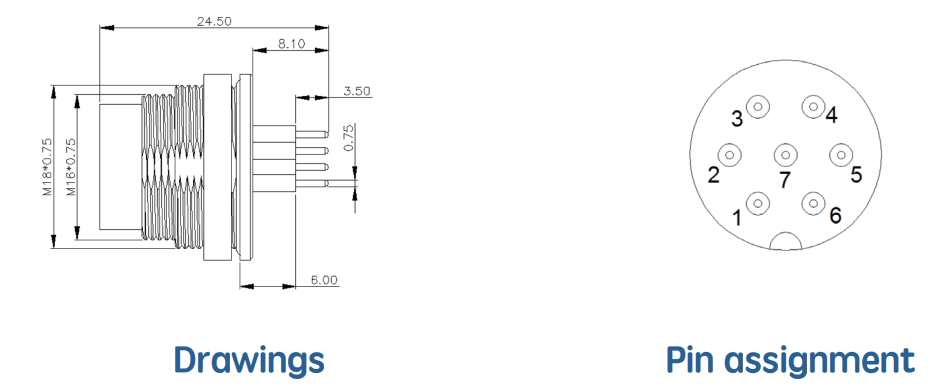

  • Dimension

Your Benefits
-Easy PCB assembly for wave soldering
-Standard pin assignments and codings for signal transmission with a uniform design-in design
-For high transmission reliability: optional shield connection to the housing and latching on the PCB

StandardIEC61076-2-106
Locking system
Fix screw locking
GenderMale
SeriesAM16
Ordering P/NAM16M0722A001
CodingA
Torque3N.M
CategoryDevice connector,rear mount
Connection typePCB dip-solder connection
Wire gauge(max.)\
Cable outlet\
Custom tariff number85444290
Country of originChina

Electrical

Rated current5A
Rated voltage125V
Rated Impulse voltage800V
Insulation resistance≥ 100 MΩ
EMC compliance/
Degree of protectionIP67
Mechanical operation> 500  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability ratingAcc. to UL 94 V0
Contact material
Brass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Shell materialZinc alloy with Nickle plated
