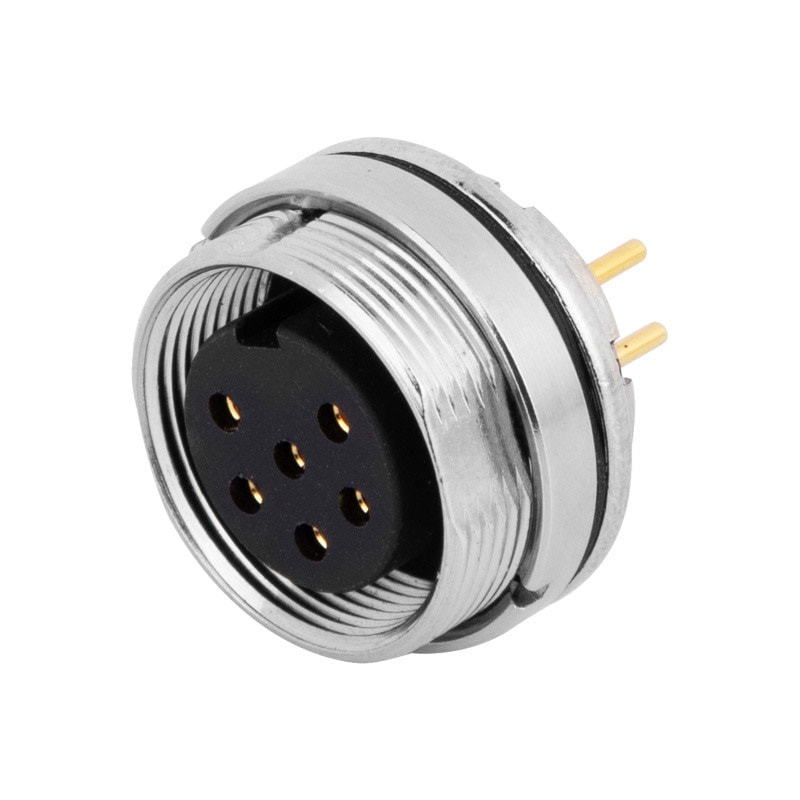

M16 panel receptacle, rear mount, female, contacts:6, PCB dip-solder connection, straight, IP67, UL certified
P/N: AM16F0622A001

M16 panel receptacle, rear mount, female, contacts:6, PCB dip-solder connection, straight, IP67, UL certified

ADD TO REQUEST
  • Description
  • Technical Data
  • Dimension

Your Benefits
-Easy PCB assembly for wave soldering
-Standard pin assignments and codings for signal transmission with a uniform design-in design
-For high transmission reliability: optional shield connection to the housing and latching on the PCB

StandardIEC61076-2-106
Locking system
Fix screw locking
GenderFemale
SeriesAM16
Ordering P/NAM16F0622A001
CodingA
Torque3N.M
CategoryDevice connector,rear mount
Connection typePCB dip-solder connection
Custom tariff number85444290
Country of originChina

Electrical

Rated current5A
Rated voltage250V
Rated Impulse voltage1500V
Insulation resistance≥ 100 MΩ
EMC compliance/
Degree of protectionIP67
Mechanical operation> 500  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability ratingAcc. to UL 94 V0
Contact material
Brass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Shell materialZinc alloy with Nickle plated
