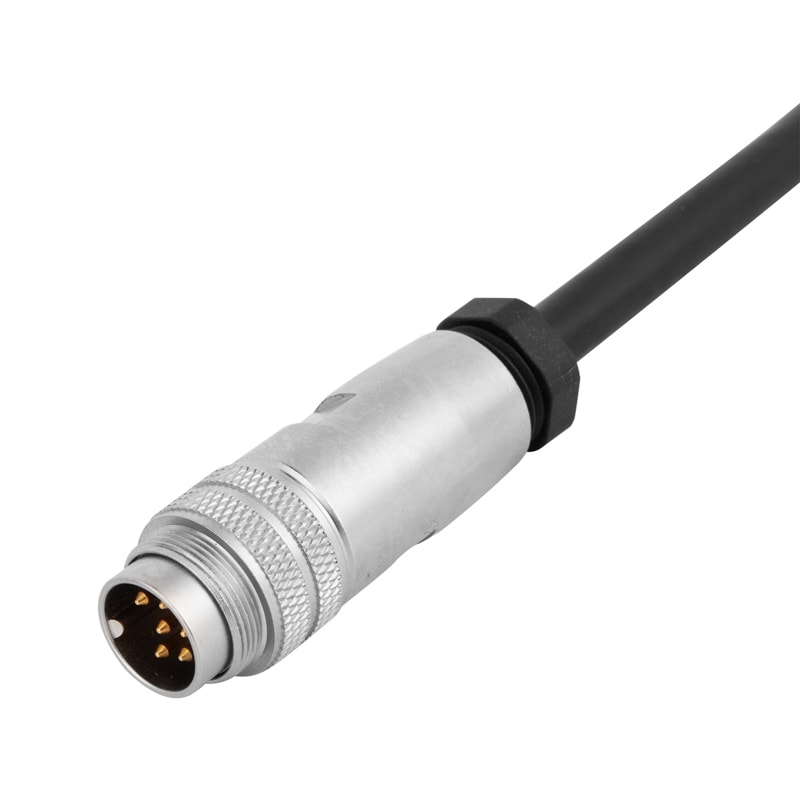

M16 male cable connector, contacts: 6, field assembly type , solder connection, A code, 6-8mm, straight
P/N: AM16M0614A001

M16 male cable connector, contacts: 6, field assembly type , solder connection, A code, 6-8mm, straight

  • Description
  • Technical Data
  • Dimension

Your Benefits

- Degree of protection IP67

- 360° EMC shielding solution

- AISG ccompatible

- UL certified under number E517859


StandardDIN EN61076-2-106
Locking systemFix screw locking
SeriesAM16
Ordering P/N:AM16M0614A001
Gendermale
No. of Contacts6
Categoryfield assembly
Categorysolder
CategoryA
CategoryM16X0.75
Category85444290
CategoryChina

Approvals

Approval 1UL


Electrical data (connector)

Rated current5A
Rated voltage250V
Rated Impluse voltage1500V
Insolation resistance≥ 100 MΩ
EMC compliance360° EMC shielding
Protection degreeIP67
Mating cycle> 500  mating cycles
Opertation temprature-25 °C ... 85 °C

Material spec (connector)

Flammability rating according to UL 94V0
Contact materialBrass with Au plating
Insolation materialPA66+GF
Nut materialNickle-plated brass
Sealing materialSilicone
Shell materialNickle-plated brass / Zink Alloy
