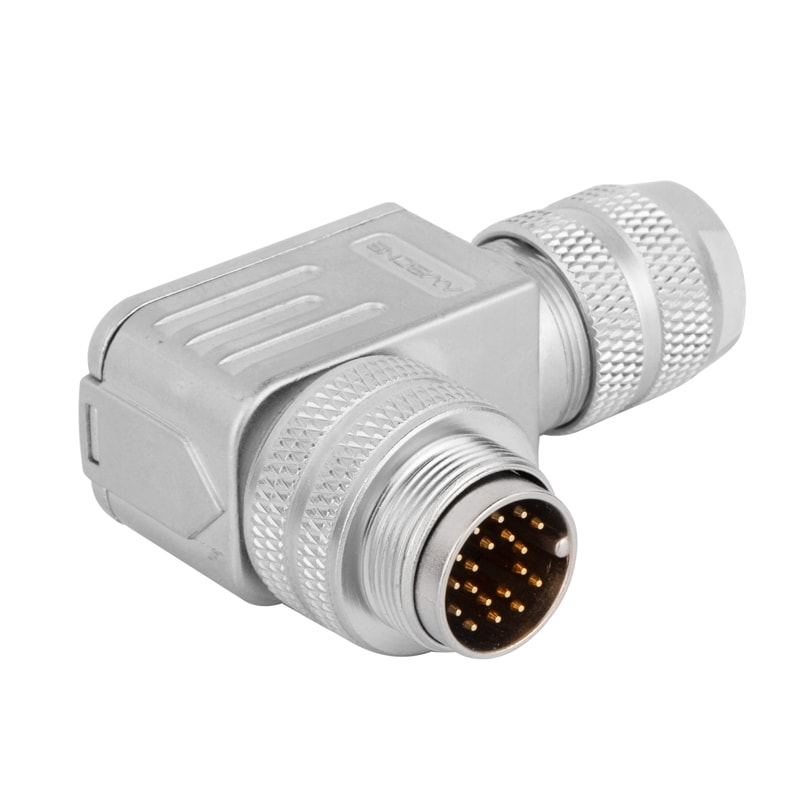

M16 cable connector, male, contacts:12, field assembly type, solder connection, right angled, IP67, UL certified
P/N: AM16M1214A002

M16 cable connector, male, contacts:12, field assembly type, solder connection, right angled, IP67, UL certified

ADD TO REQUEST
  • Description
  • Technical Data
  • Dimension

Your Benefits

- Degree of protection IP67

- 360° EMC shielding solution

- AISG ccompatible

- UL certified under number E517859


StandardDIN EN61076-2-106
Locking systemFix screw locking
SeriesAM16
Ordering P/N:AM16M1214A002
GenderMale
CodingA
Torque0.6N.M
CategoryField assembly
Connection typeSolder connection
Wire gauge(max.)0.23mm²/24AWG
Cable outlet6~8MM
Custom tariff number85444290
Country of originChina

Approvals

Approval 1UL


Electrical

Rated current3A
Rated voltage60V
Rated Impulse voltage800V
Insulation resistance≥ 100 MΩ
EMC complianceShielding
Protection degreeIP67
Mechanical operation> 500  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability rating
Acc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA66
Ring nut material
Brass with Nickle plated
Sealing materialSilicone
shell material
Zinc alloy with Nickel
plated
