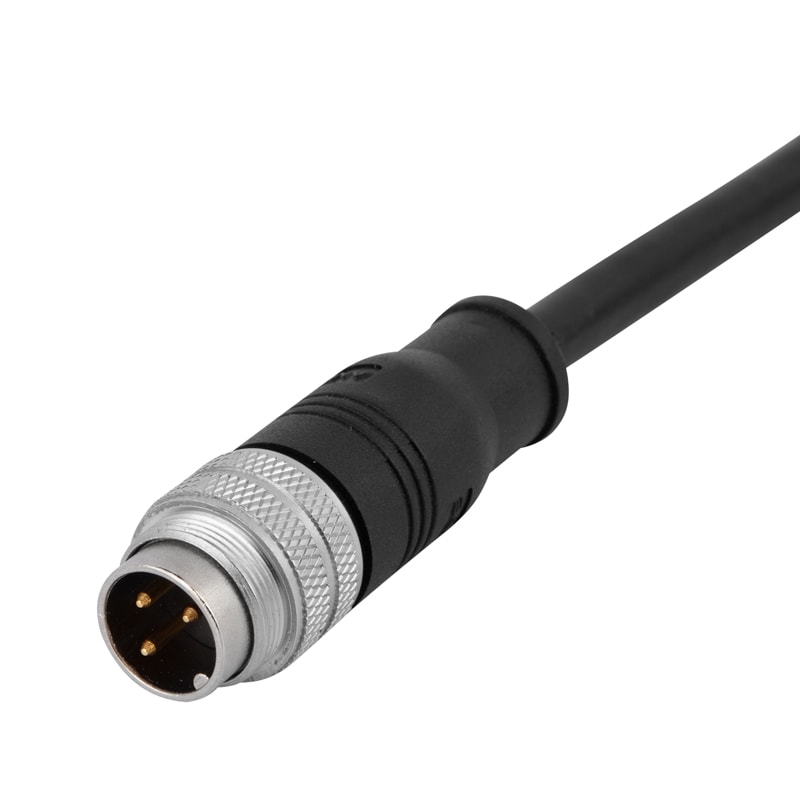

M16 pre-molded cable connector, male, contacts:3, solder connection, straight, IP67, shieldable, UL certified
P/N: AM16M0311AXX1-XXX

M16 pre-molded cable connector, male, contacts:3, solder connection, straight, IP67, shieldable, UL certified

  • Description
  • Technical Data

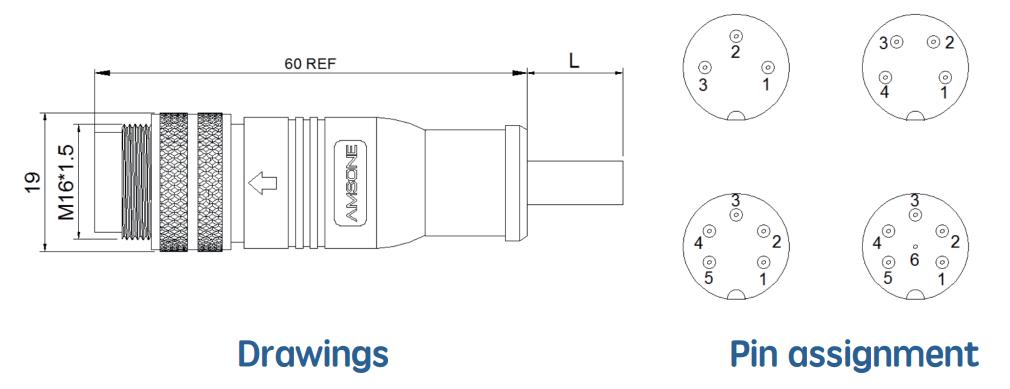

  • Dimension

Your Benefits

- Degree of protection IP67

-100% electrically tested plug-in components

- AISG ccompatible

- UL certified under number E517859

- Shieldable solution


StandardDIN EN61076-2-106
Locking systemFix screw locking
SeriesAM16
Ordering P/N:AM16M0311AXX1-XXX
GenderMale
No. of Contacts3
CategoryPre-molded cable
Connection typeSolder connection
CodingA
Custom tariff number85444290
Country of originChina

Approvals

Approval 1UL


Electrical

Rated current5A
Rated voltage250V
Rated Impulse voltage1500V
Insulation resistance≥ 100 MΩ
EMC complianceshieldable
Degree of protectionIP67
Mechanical operation> 500  mating cycles
Operation temperature-25 °C ~ 85 °C

Cable

Cable typeUL Style
Conductor cross section0.75mm²
Gauge (AWG)18AWG
Jacket

PVC/TPU

Temperature-25 °C ~ 85 °C
Other resistanceUV resistant (720 h) UL 2556

Premium oil resistance (jacket)
Wire colourvariable
Lengthvariable

Material

Flammability rating
Acc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Molding materialPVC/TPU
