M16 cable connector, female, contacts:24, field assembly type, solder connection, right angled, IP67
P/N: AM16F2414A002

M16 cable connector, female, contacts:24, field assembly type, solder connection, right angled, IP67

ADD TO REQUEST
  • Description
  • Technical Data

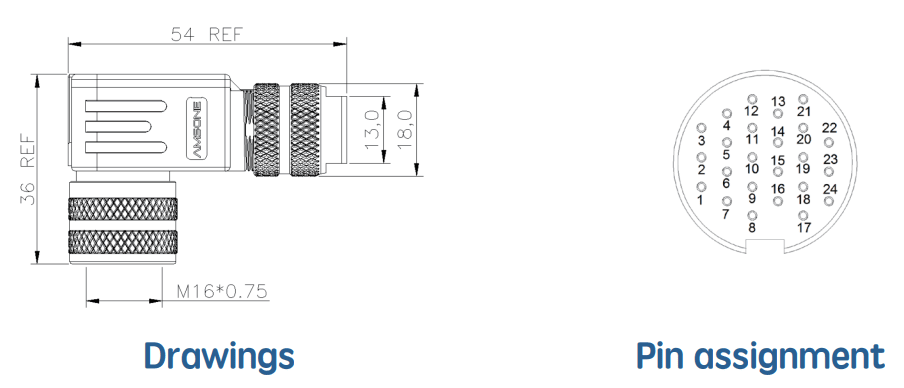

  • Dimension

Your Benefits

- Degree of protection IP67

- 360° EMC shielding solution

- AISG ccompatible

- UL certified under number E517859


StandardIEC61076-2-106
Locking system
Fix screw locking
GenderFemale
SeriesAM12
Ordering P/NAM16F2414A002
CodingA
Torque0.6N.M
CategoryField assembly
Connection typeSolder connection
Wire gauge(max.)0.14mm²/26AWG
Cable outlet
6~8MM
Custom tariff number85444290
Country of originChina

Approvals

Approval 1UL


Electrical

Rated current1A
Rated voltage60V
Rated Impulse voltage500V
Insulation resistance≥ 100 MΩ
EMC complianceShielding
Protection degreeIP67
Mechanical operation> 500  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability rating
Acc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Shell materialZinc alloy with Nickel plated
