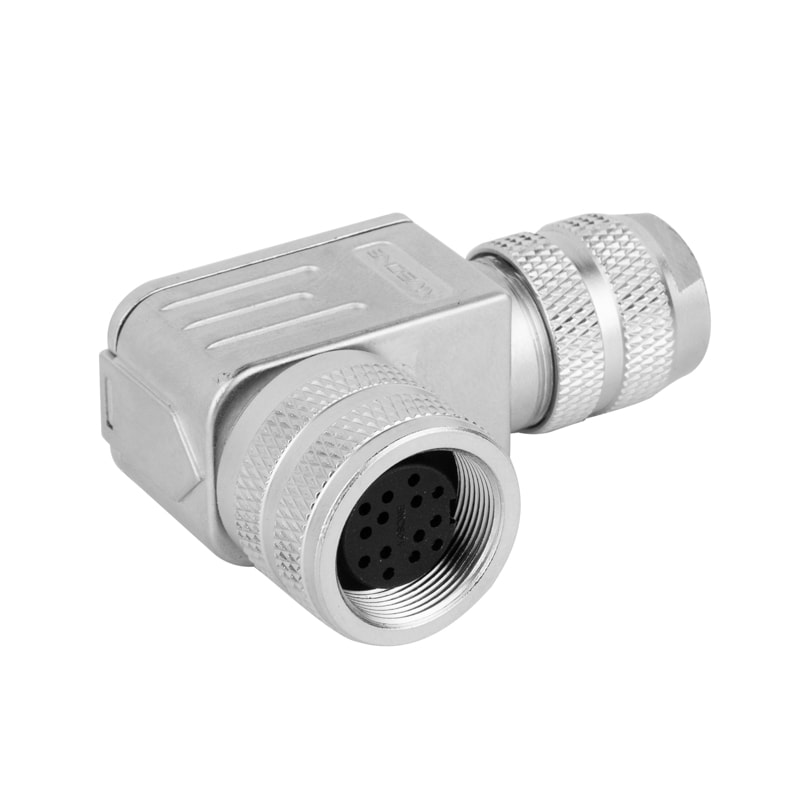

M16 cable connector, female, contacts:19, field assembly type, solder connection, right angled, IP67, UL certified
P/N: AM16F1914A002

M16 cable connector, female, contacts:19, field assembly type, solder connection, right angled, IP67, UL certified

  • Description
  • Technical Data

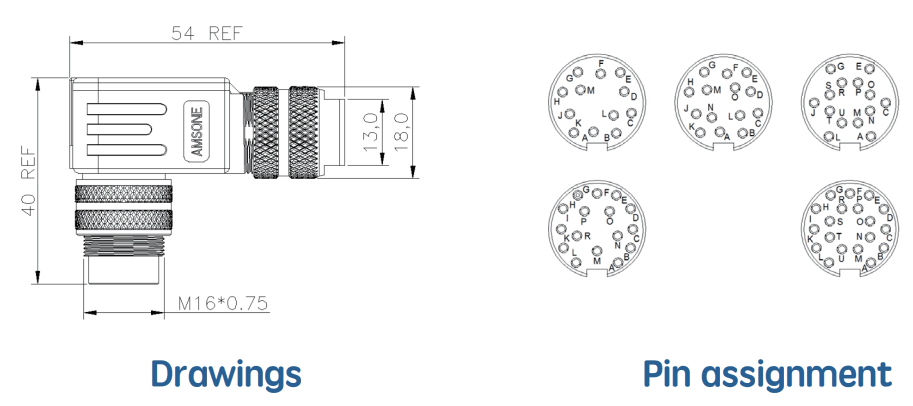

  • Dimension

Your Benefits
- Degree of protection IP67
- 360° EMC shielding solution
- AISG ccompatible
- UL certified under number E517859




StandardDIN EN61076-2-106
Locking systemFix screw locking
SeriesAM16
Ordering P/N:AM16F1914A002
GenderFemale
Torque0.6N.M
CategoryField assembly
Connection typeSolder connection
CodingA/B
Wire gauge(max.)0.23mm²/24AWG
Cable outlet
6~8MM
Custom tariff number85444290
Country of originChina

Approvals

Approval 1UL


Electrical

Rated current3A
Rated voltage60V
Rated Impulse voltage800V
Insulation resistance≥ 100 MΩ
EMC complianceShielding
Protection degreeIP67
Mechanical operation> 500  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability rating
Acc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA66
Jam nut materialBrass with Nickle plated
Sealing materialSilicone
Shell materialZinc alloy with Nickel plated
