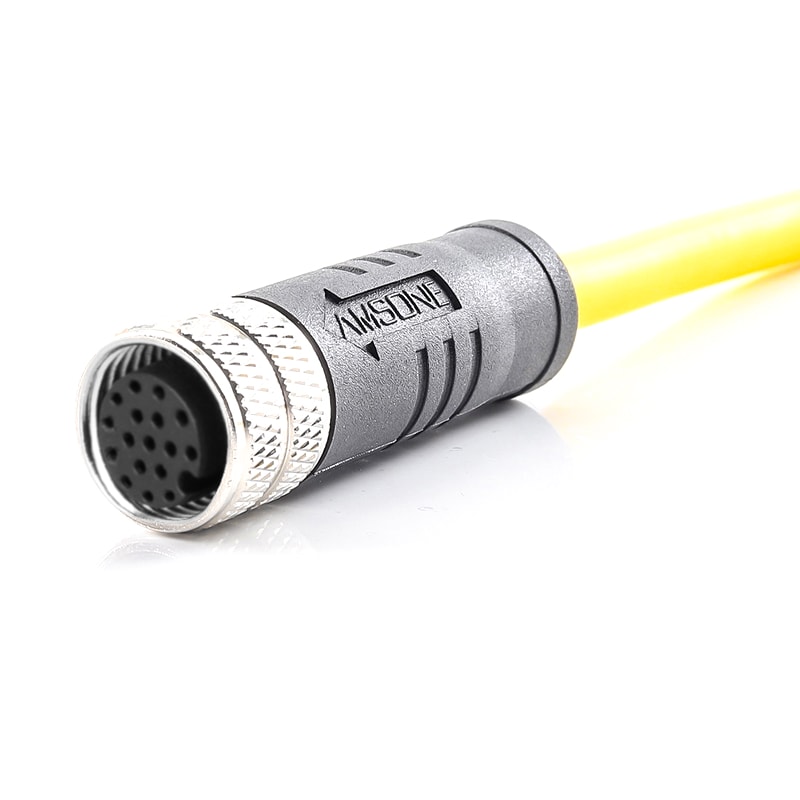

M12 pre-molded cable connector, female, contacts: 12, solder connection, A code, straight, IP67- Amissiontech Co.,Ltd

Your Benefits
-Easy PCB assembly for wave soldering
-Standard pin assignments and codings for signal transmission with a uniform design-in design
-For high transmission reliability: optional shield connection to the housing and latching on the PCB

Standard	IEC61076-2-101
Locking system	Fix screw locking
Gender	Female
Series	AM12
Ordering P/N	AM12F1211AXX1-XX
Coding	A
Torque	0.4N.M
Category	Pre-molded cable
Connection type	Solder connection
Cable outlet	Variable
Custom tariff number	85444290
Country of origin	China

Electrical

Rated current	1.5A
Rated voltage	30V
Rated Impulse voltage	800V
Insulation resistance	≥ 100 MΩ
EMC compliance	Optional
Degree of protection	IP67
Mechanical operation	> 100 mating cycles
Operation temperature	-25 °C ~ 85 °C

Cable

Cable type	UL Style
Conductor cross section	0.12mm²
Gauge (AWG)	26AWG
Jacket	PVC/TPU
Temperature	-25 °C ~ 85 °C
Other resistance	UV resistant (720 h) UL 2556
	Premium oil resistance (jacket)
Wire colour	variable
Length	variable

Material

Flammability rating	Acc. to UL 94 V0
Contact material	Brass with Gold plated
Insulation material	PA66, UL94-V0
Ring nut material	Brass with Nickle plated
Sealing material	Silicone
Molding material	PVC/TPU
