P/N: AM12F0411T271-030

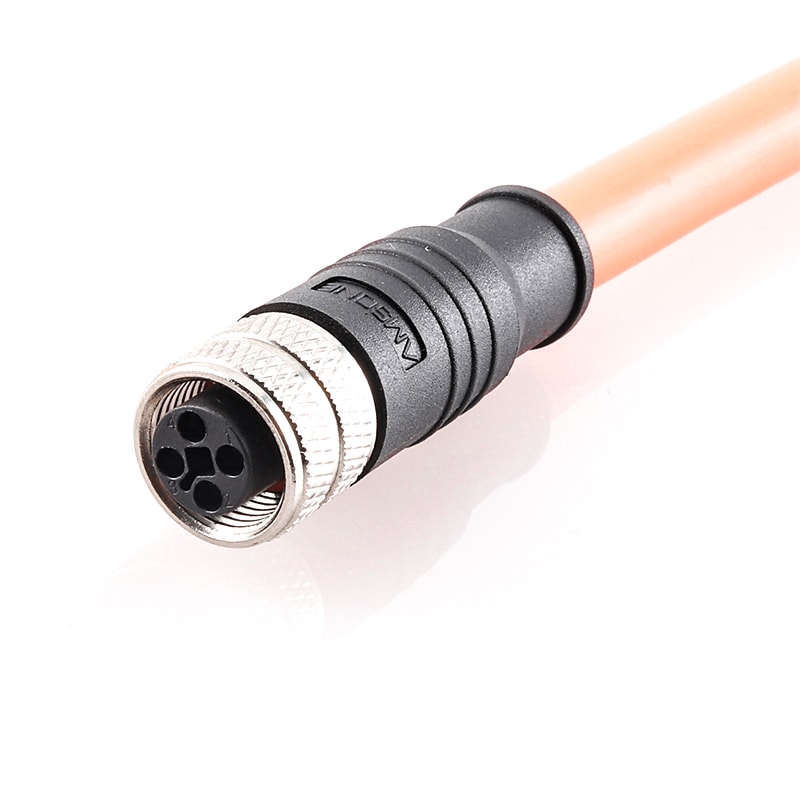

M12 Pre-molded Cable Connector Female 4Pole Solder Connection T Code Straight IP67

Drag Chain Cable length 3M or Variable

ADD TO REQUEST

Description
Technical Data

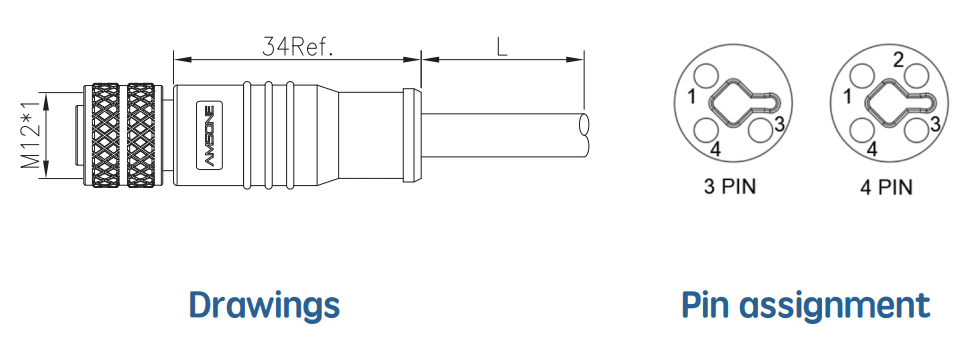

Dimension

Your Benefits

-100% electrically tested plug-in components

-DC connectors for up to 12 A and 63 V AC

-Halogen-free and high flexible PUR cable -360°shielding, reliable shielding performance

Standard	IEC 61076-2-111
Locking system	Fix screw locking
Series	AM12
Ordering P/N:	AM12F0411T271-030
Gender	Female
Coding	T
Torque	0.4N.M
Category	Pre-molded cable
Connection type	Solder connection
Cable outlet	Variable
Custom tariff number	85444290
Country of origin	China

Electrical

Rated current	12A
Rated voltage	63V AC
Rated Impulse voltage	1500V
Mechanical operation	> 100 mating cycles
Insulation resistance	≥ 100 MΩ
EMC compliance	Optional
Operation temperature	-25 °C ~ 85 °C
Degree of protection	IP67

Cable

Cable type	UL Style
Conductor cross section	1.5mm²
Gauge (AWG)	16AWG
Jacket	PVC/TPU
Temperature	-25 °C ~ 85 °C
Other resistance	UV resistant (720 h) UL 2556
	Premium oil resistance (jacket)
Wire colour	variable
Length	variable

Material

Flammability rating	Acc. to UL 94 V0
Contact material	Brass with Gold plated
Insulation material	PA66
Ring nut material	Brass with Nickle plated
Sealing material	Silicone
Molding material	PVC/TPU
